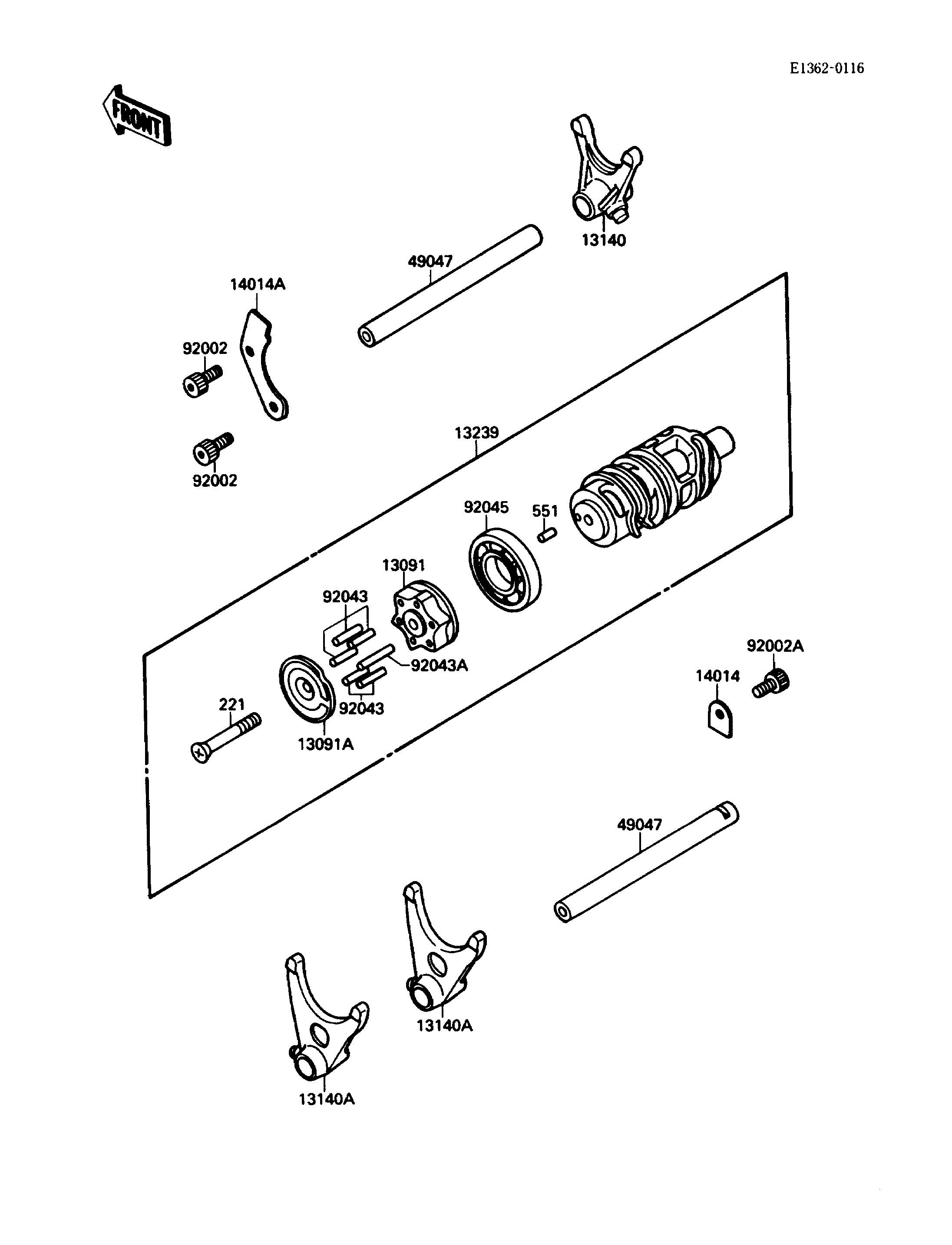

1988 NINJA® 750R - Gear Change Drum/Shift Fork(s)
221
551
13091
13091A
13140
13140A
13140A
13239
14014
14014A
49047
49047
92002
92002
92002A
92043
92043
92043A
92045
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-CSK-CROS | 221 | 221B0640 | 1 | ||
| PIN-DOWEL,4X8 | 551 | 551A0408 | 1 | ||
| HOLDER,CHANGE DRUM | 13091 | 13091-1275 | 1 | ||
| HOLDER,NEUTRAL | 13091A | 13091-1334 | 1 | ||
| FORK-SHIFT,INPUT | 13140 | 13140-1153 | 1 | ||
| FORK-SHIFT,OUTPUT | 13140A | 13140-1154 | 2 | ||
| DRUM-ASSY-CHANGE | 13239 | 13239-1134 | 1 | ||
| PLATE-POSITION,ROD | 14014 | 14014-1080 | 1 | ||
| PLATE-POSITION,DRUM | 14014A | 14014-1081 | 1 | ||
| ROD-SHIFT | 49047 | 49047-1070 | 2 | ||
| BOLT,SOCKET,6X14 | 92002 | 92002-1192 | 2 | ||
| BOLT,SOCKET,6X12 | 92002A | 92002-1796 | 1 | ||
| PIN,DOWEL,4X15.8 | 92043 | 92042-014 | 5 | ||
| PIN,DOWEL,4X17.8 | 92043A | 92042-020 | 1 | ||
| BEARING-BALL,16005(NTN) | 92045 | 92045-1045 | 1 |
| SCREW-CSK-CROS | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL,4X8 | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CHANGE DRUM | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,NEUTRAL | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FORK-SHIFT,INPUT | |
| REF # | 13140 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FORK-SHIFT,OUTPUT | |
| REF # | 13140A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DRUM-ASSY-CHANGE | |
| REF # | 13239 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-POSITION,ROD | |
| REF # | 14014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-POSITION,DRUM | |
| REF # | 14014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-SHIFT | |
| REF # | 49047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X12 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,4X15.8 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,4X17.8 | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,16005(NTN) | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
