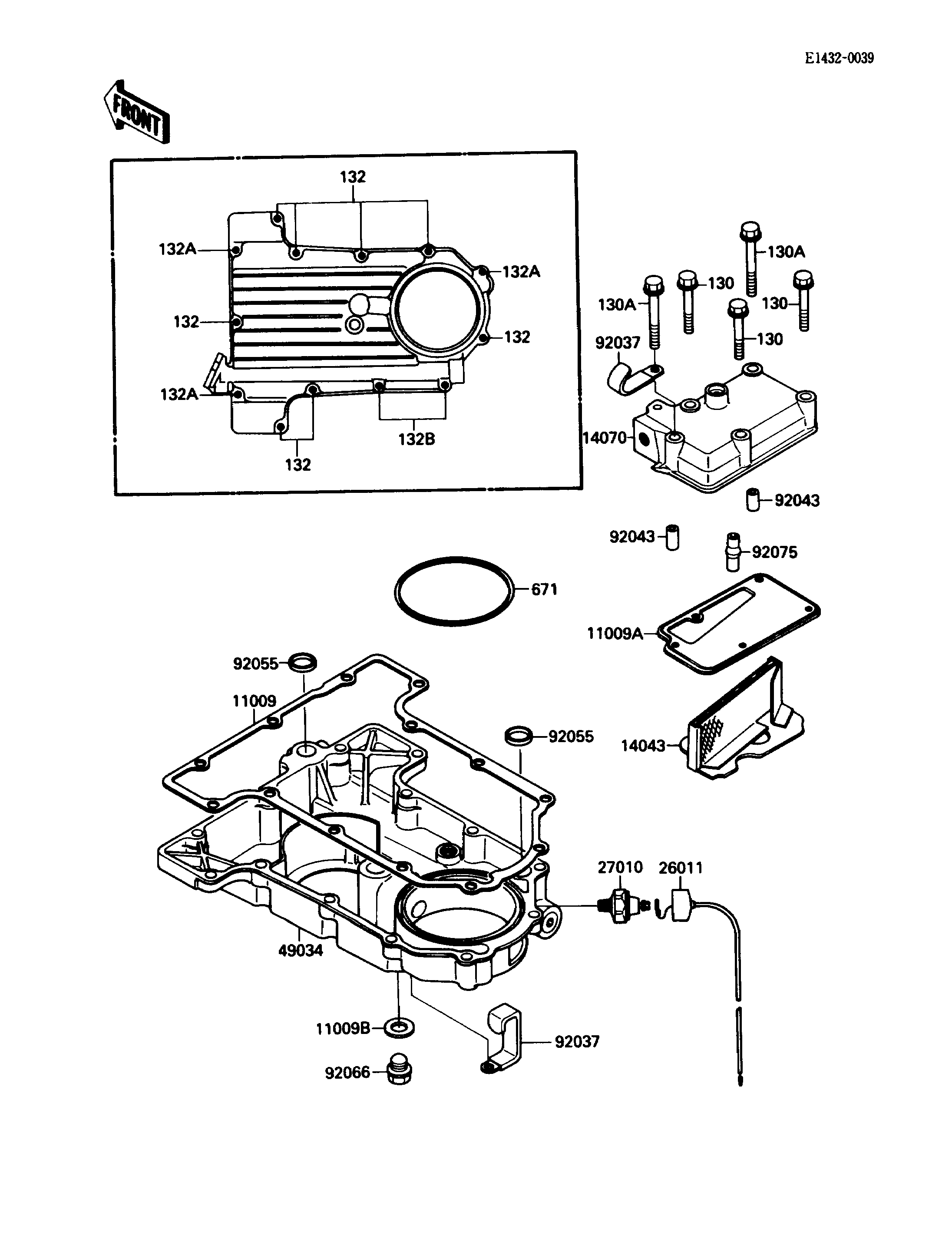

1988 NINJA® 750R - Breather Cover/Oil Pan

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130A
130A
132
132
132
132
132A
132A
132A
132B
671
11009
11009A
11009B
14043
14070
26011
27010
49034
92037
92037
92043
92043
92055
92055
92066
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130S0640 3
BOLT-FLANGED 130A 130S0650 2
BOLT-FLANGED-SMALL 132 132W0625 8
BOLT-FLANGED-SMALL 132A 132W0640 3
BOLT-FLANGED-SMALL 132B 132W0655 2
O RING,90MM 671 671B2590 1
GASKET,OIL PAN 11009 11009-1602 1
GASKET,BREATHER COVER 11009A 11009-1604 1
GASKET,12X22X2,DRAIN PLUG 11009B 92065-097 1
FILTER,BREATHER 14043 14043-1062 1
BODY-BREATHER 14070 14070-1066 1
WIRE-LEAD,OIL PRESSURE 26011 26011-1383 1
SWITCH,OIL PRESSURE 27010 27010-1155 1
PAN-OIL 49034 49034-1067 1
CLAMP,WIRING HARNESS 92037 92037-1877 2
PIN,DOWEL,6.3X8X14 92043 92042-007 2
RING-O,19.5MM 92055 92055-077 2
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
DAMPER,BRETHER BODY 92075 92075-1958 1
