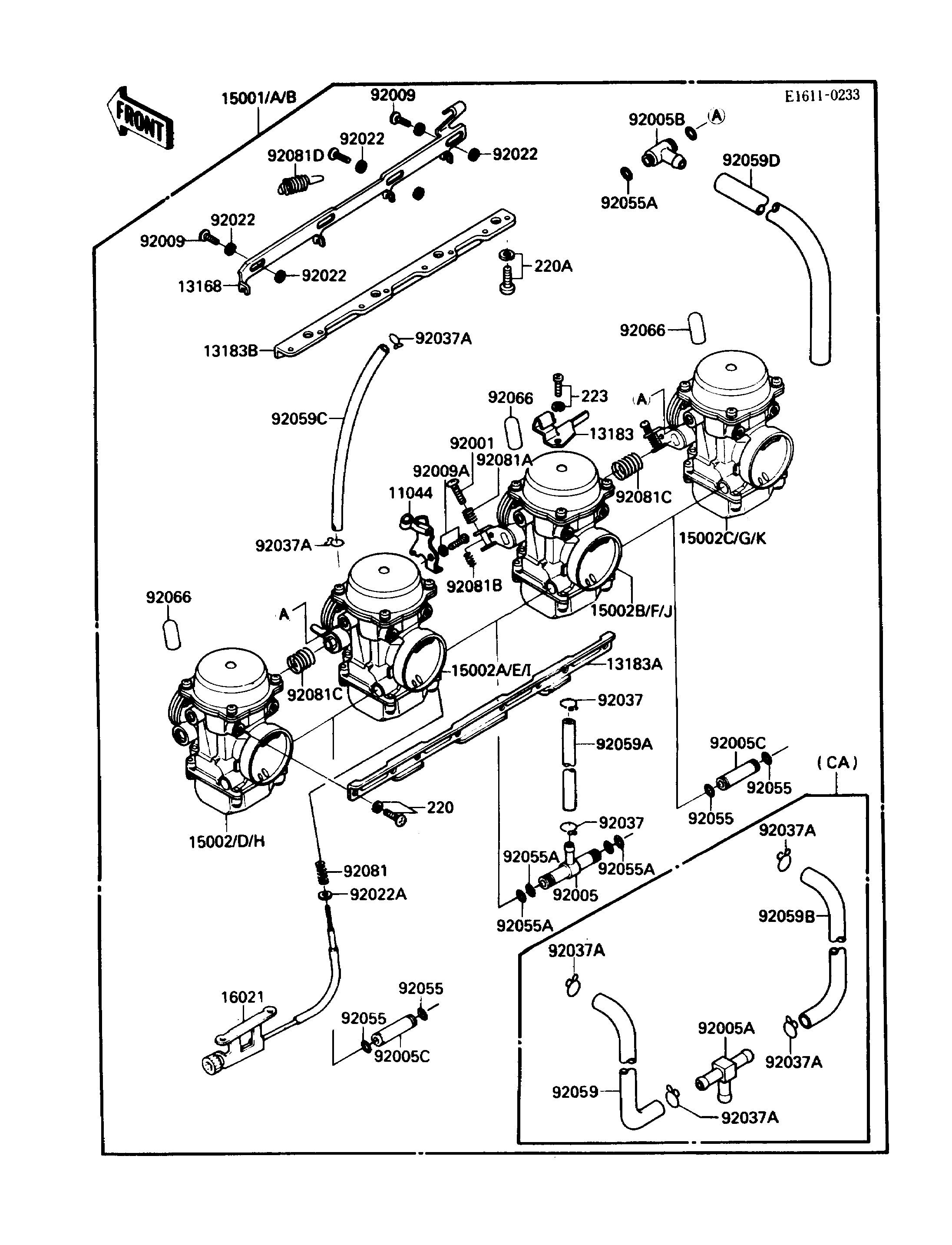

1988 NINJA® 750R - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11044
11044
13168
13168
13183
13183
13183A
13183A
13183B
13183B
16021
16021
92001
92001
92005
92005
92005B
92005B
92005C
92005C
92005C
92005C
220
220
220A
220A
223
223
92009
92009
92009
92009
92009A
92009A
92022
92022
92022
92022
92022
92022
92022
92022
92022A
92022A
92037
92037
92037
92037
92055
92055
92055
92055
92055
92055
92055
92055
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92059A
92059A
92059C
92059C
92081
92081
92081A
92081A
92081B
92081B
92081C
92081C
92081C
92081C
92081D
92081D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABLE 11044 11044-1546 1
LEVER,STARTER 13168 13168-1349 1
PLATE,STARTER CABLE 13183 13183-1033 1
PLATE,CARBURETOR STAY,UPP 13183A 13183-1109 1
PLATE,CARBURETOR STAY,LWR 13183B 13183-1110 1
SCREW-THROTTLE STOP 16021 16021-1101 1
BOLT,THROTTLE ADJUST 92001 92001-1998 3
FITTING,FUEL,T-TYPE 92005 92005-1108 1
FITTING,T-TYPE 92005B 92005-1125 2
FITTING 92005C 92005-1157 2
SCREW-PAN-CROS 220 220D0508 8
SCREW-PAN-CROS,5X14 220A 220D0514 8
SCREW-PAN-WS-CROS 223 223D0410 1
SCREW 92009 92009-1262 3
SCREW,5X10 92009A 92009-1365 1
WASHER,6.1X11X0.8,POLYACETAL 92022 92022-1199 6
WASHER,PLAIN,STOP SPRING 92022A 92022-1480 1
CLAMP,FUEL TUBE 92037 92037-1075 2
RING-O 92055 92055-1004 4
RING-O,FUEL FITTING 92055A 92055-1223 8
TUBE,7.3X12.5X260 92059A 92059-1492 1
TUBE,5.3X10.5X150 92059C 92059-1813 1
SPRING,THROTTLE STOP SCREW 92081 92081-1617 1
SPRING,THROTTLE ADJUST UPP 92081A 92081-1620 3
SPRING,THROTTLE ADJUST LWR 92081B 92081-1621 3
SPRING,THROTTLE ADJUST CNT 92081C 92081-1622 2
SPRING,STARTER LEVER 92081D 92081-1762 1
CARBURETOR-ASSY 15001 15001-1274 1
CARBURETOR-ASSY 15001A 15001-1320 1
CARBURETOR-ASSY 15001B 15001-1321 1
CARBURETOR,LH,OUTSIDE 15002 15002-1444 1
CARBURETOR,LH,INSIDE 15002A 15002-1445 1
CARBURETOR,RH,INSIDE 15002B 15002-1446 1
CARBURETOR,RH,OUTSIDE 15002C 15002-1447 1
CARBURETOR,LH,OUTSIDE 15002D 15002-1448 1
CARBURETOR,LH,INSIDE 15002E 15002-1449 1
CARBURETOR,RH,INSIDE 15002F 15002-1450 1
CARBURETOR,RH,OUTSIDE 15002G 15002-1451 1
CARBURETOR,LH,OUTSIDE 15002H 15002-1452 1
CARBURETOR,LH,INSIDE 15002I 15002-1453 1
CARBURETOR,RH,INSIDE 15002J 15002-1454 1
CARBURETOR,RH,OUTSIDE 15002K 15002-1455 1
FITTING,T-TYPE 92005A 92005-1119 1
CLAMP,TUBE 92037A 92037-1194 2
CLAMP,TUBE 92037A 92037-1194 6
TUBE,7X11X200 92059 92059-1477 1
TUBE,7X11X180 92059B 92059-1737 1
TUBE,AIR VENT 92059D 92059-1815 2
PLUG,12X25 92066 92068-006 1
PLUG,12X25 92066 92068-006 3
