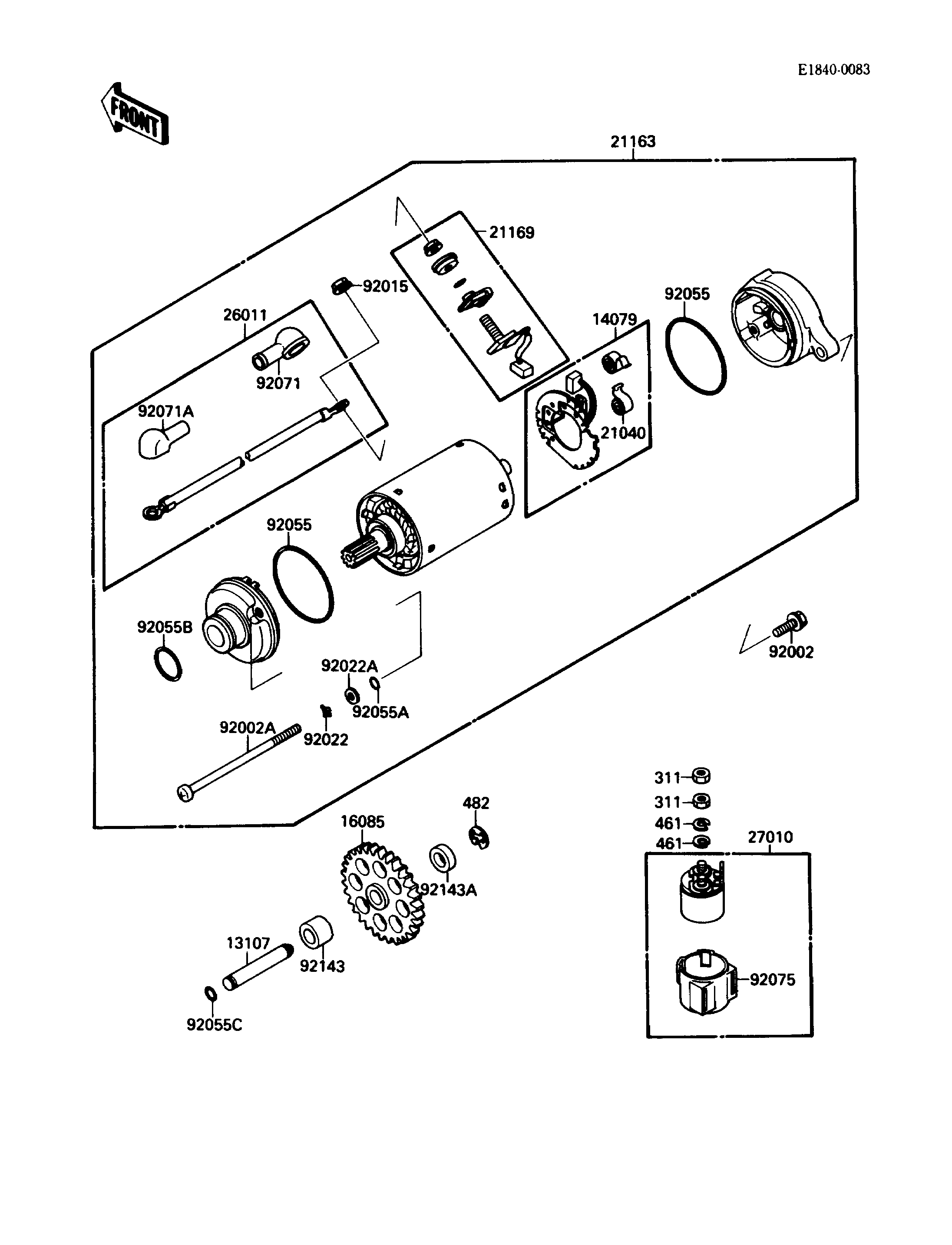

1988 NINJA® 750R - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
311
311
461
461
482
13107
14079
16085
21040
21163
21169
26011
27010
92002
92002A
92015
92022
92022A
92055
92055
92055A
92055B
92055C
92071
92071A
92075
92143
92143A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX,6MM 311 311B0600 2
WASHER-SPRING,6MM 461 461F0600 2
CIRCLIP-TYPE-E,9MM 482 482K9000 1
SHAFT,IDLE GEAR 13107 13107-1187 1
HOLDER-ASSY,CARBON BRUSH 14079 14079-1056 1
GEAR,IDLE 16085 16085-1104 1
SPRING-BRUSH 21040 21040-1051 2
STARTER-ELECTRIC 21163 21163-1094 1
TERMINAL,STARTER 21169 21169-1058 1
WIRE-LEAD,STARTER MOTOR 26011 26011-1378 1
SWITCH,MAGNETIC 27010 27010-1209 1
BOLT,6X20 92002 92001-1947 2
BOLT 92002A 92002-1841 2
NUT 92015 92015-1623 1
WASHER 92022 92022-1833 2
WASHER 92022A 92022-1834 2
RING-O,62MM 92055 92055-1260 2
RING-O,4.5MM 92055A 92055-1261 2
RING-O,24.4MM 92055B 92055-1262 1
RING-O,ID=9.5 92055C 92055-1355 1
GROMMET,STARTER TERMINAL 92071 92071-1120 1
GROMMET,TERMINAL 92071A 92071-1121 1
DAMPER,MAGNETIC SWITCH 92075 21064-002 1
COLLAR,12.1X20X14.5 92143 92143-1030 1
COLLAR,12.1X20X6.5 92143A 92143-1031 1
