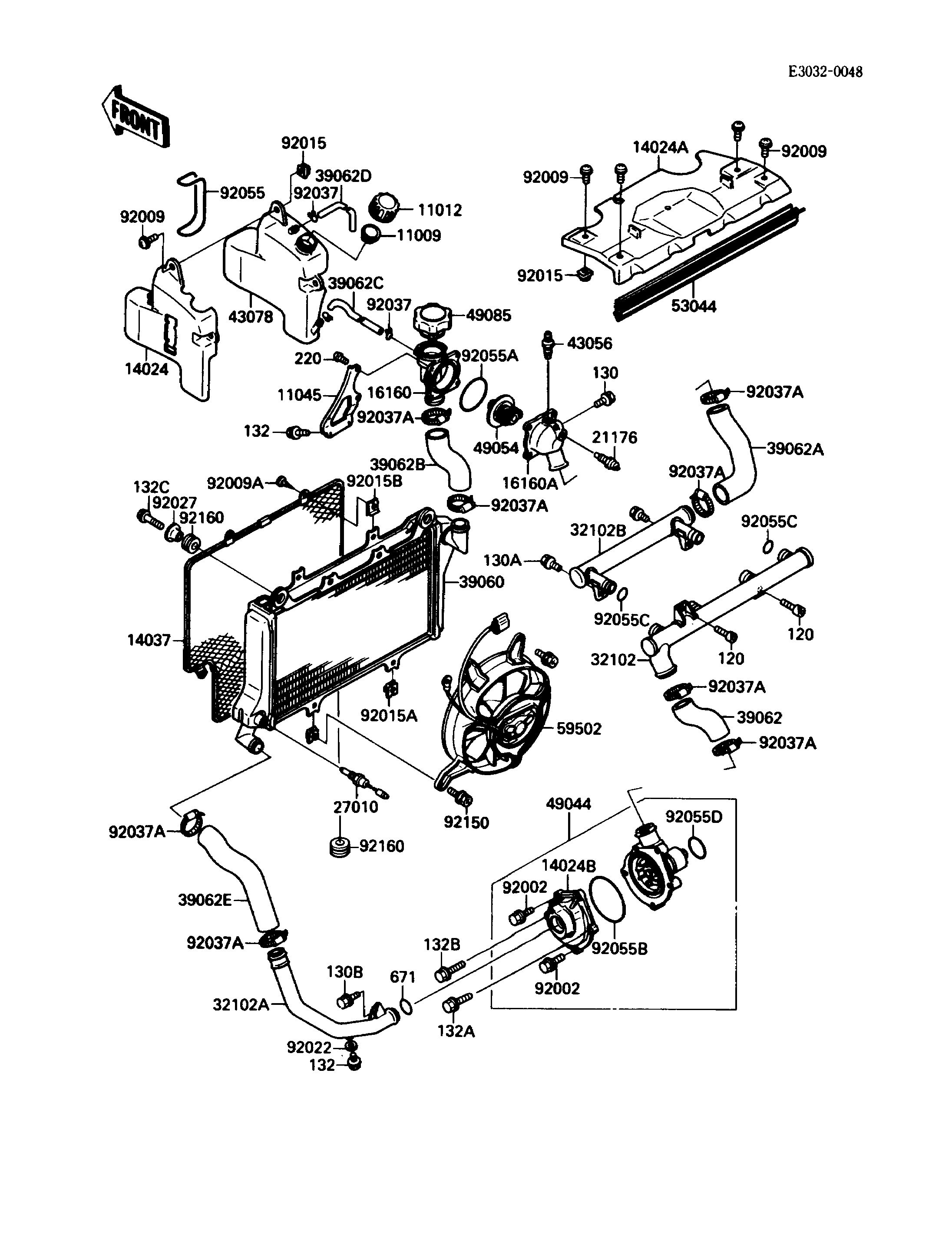

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| BRACKET,THERMOSTAT | 11045 | 11045-1249 | 1 | ||
| COVER,RESERVOIR | 14024 | 14024-1342 | 1 | ||
| COVER | 14024A | 14024-1343 | 1 | ||
| COVER,WATER PUMP | 14024B | 14024-1428 | 1 | ||
| SCREEN | 14037 | 14037-1085 | 1 | ||
| BODY,THERMOSTAT,UPP | 16160 | 16160-1116 | 1 | ||
| BODY,THERMOSTAT,LWR | 16160A | 16160-1117 | 1 | ||
| SENSOR,WATER | 21176 | 21176-1054 | 1 | ||
| SWITCH,FAN | 27010 | 27010-1180 | 1 | ||
| PIPE,COOLING | 32102 | 32102-1243 | 1 | ||
| PIPE,COOLING | 32102A | 32102-1259 | 1 | ||
| PIPE,COOLING | 32102B | 32102-1260 | 1 | ||
| RADIATOR | 39060 | 39060-1073 | 1 | ||
| HOSE-COOLING | 39062 | 39062-1197 | 1 | ||
| HOSE-COOLING,HEAD-THERMO | 39062A | 39062-1198 | 1 | ||
| HOSE-COOLING,CAP-RADIATOR | 39062B | 39062-1201 | 1 | ||
| HOSE-COOLING,CAP-RESERVOIR | 39062C | 39062-1203 | 1 | ||
| HOSE-COOLING | 39062D | 39062-1219 | 1 | ||
| HOSE-COOLING,RADIATOR-PUMP | 39062E | 39062-1270 | 1 | ||
| BREATHER | 43056 | 43056-003 | 1 | ||
| RESERVOIR | 43078 | 43078-1081 | 1 | ||
| PUMP-WATER | 49044 | 49044-1059 | 1 | ||
| THERMOSTAT | 49054 | 49054-1051 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1054 | 1 | ||
| TRIM | 53044 | 53044-1180 | 1 | ||
| FAN-ASSY | 59502 | 59502-1068 | 1 | ||
| BOLT,6X22 | 92002 | 92002-1392 | 3 | ||
| SCREW,6X18,BLACK | 92009 | 92009-1181 | 6 | ||
| SCREW,TAPPING,6MM | 92009A | 92009-1261 | 6 | ||
| NUT,6MM | 92015 | 92015-1094 | 6 | ||
| NUT | 92015A | 92015-1487 | 4 | ||
| NUT,6MM | 92015B | 92015-1758 | 4 | ||
| WASHER,6.2X11X1 | 92022 | 92022-304 | 1 | ||
| COLLAR,L=14 | 92027 | 92027-1134 | 2 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
| CLAMP,COOLING HOSE | 92037A | 92037-1985 | 8 | ||
| RING-O | 92055 | 92055-1001 | 1 | ||
| RING-O,53.5X2.6 | 92055A | 92055-112 | 1 | ||
| BOLT-SOCKET | 120 | 120S0610 | 2 | ||
| BOLT-FLANGED,6X12 | 130 | 130G0612 | 1 | ||
| BOLT-FLANGED | 130A | 130J0612 | 2 | ||
| BOLT-FLANGED,6X16,BLACK | 130B | 130J0616 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132W0610 | 3 | ||
| BOLT-FLANGED-SMALL | 132A | 132W0630 | 1 | ||
| BOLT-FLANGED-SMALL | 132B | 132W0650 | 1 | ||
| BOLT-FLANGED-SMALL | 132C | 132W0825 | 2 | ||
| SCREW-PAN-CROS,5X14 | 220 | 220D0514 | 4 | ||
| O RING,25MM | 671 | 671B2525 | 1 | ||
| RING-O,WATER PUMP | 92055B | 92055-1271 | 1 | ||
| RING-O | 92055C | 92055-1282 | 6 | ||
| RING-O,WATER PUMP | 92055D | 92055-1378 | 1 | ||
| BOLT,6X16 | 92150 | 92150-1187 | 4 | ||
| DAMPER | 92160 | 92160-1007 | 3 |
