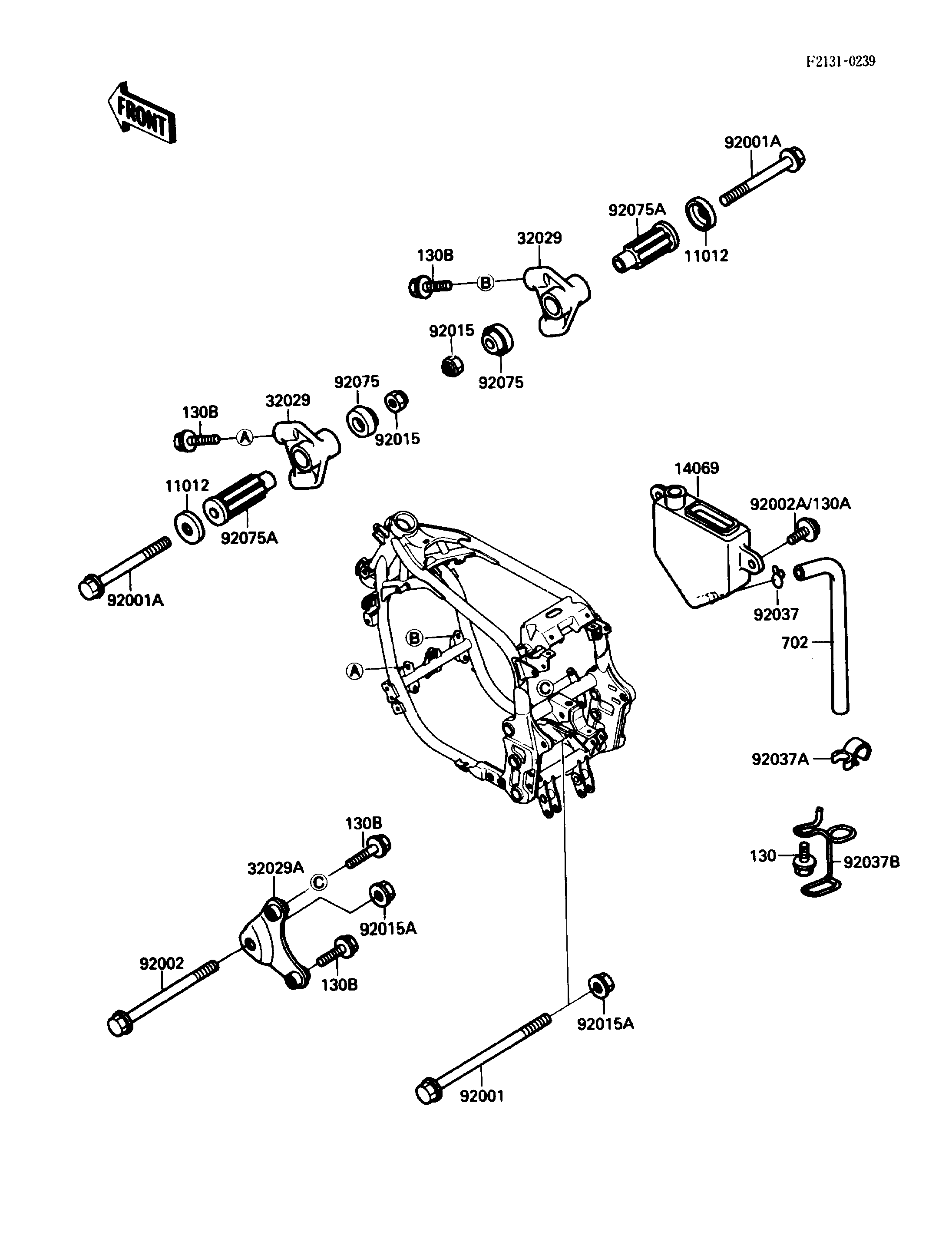

1988 NINJA® 750R - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130B
130B
130B
130B
702
11012
11012
14069
32029
32029
32029A
92001
92001A
92001A
92002
92015
92015
92015A
92015A
92037
92037A
92037B
92075
92075
92075A
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 1
BOLT-FLANGED,8X20 130B 130J0820 6
TUBE-RUBBER 702 702A07480 1
CAP,ENGINE BRACKET 11012 11012-1228 2
BREATHER 14069 14069-1054 1
BRACKET-ENGINE,FR 32029 32029-1485 2
BRACKET-ENGINE,RR,UPP 32029A 32029-1502 1
BOLT,FLANGED,10X180 92001 92001-1621 1
BOLT,FLANGED,10X105,BLACK 92001A 92001-1751 2
BOLT,FLANGED,10X170 92002 92002-1470 1
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
NUT 92015A 92015-1541 2
CLAMP,TUBE 92037 92037-147 1
CLAMP,HOSE 92037A 92037-1857 1
CLAMP,HOSE 92037B 92037-1875 1
DAMPER,ENGINE MOUNT,SIDE 92075 92075-1274 2
DAMPER,ENGINE MOUNT,MAIN 92075A 92075-1377 2
BOLT-FLANGED,6X14,BLACK 130A 130J0614 2
BOLT,6X12 92002A 92002-1884 2
