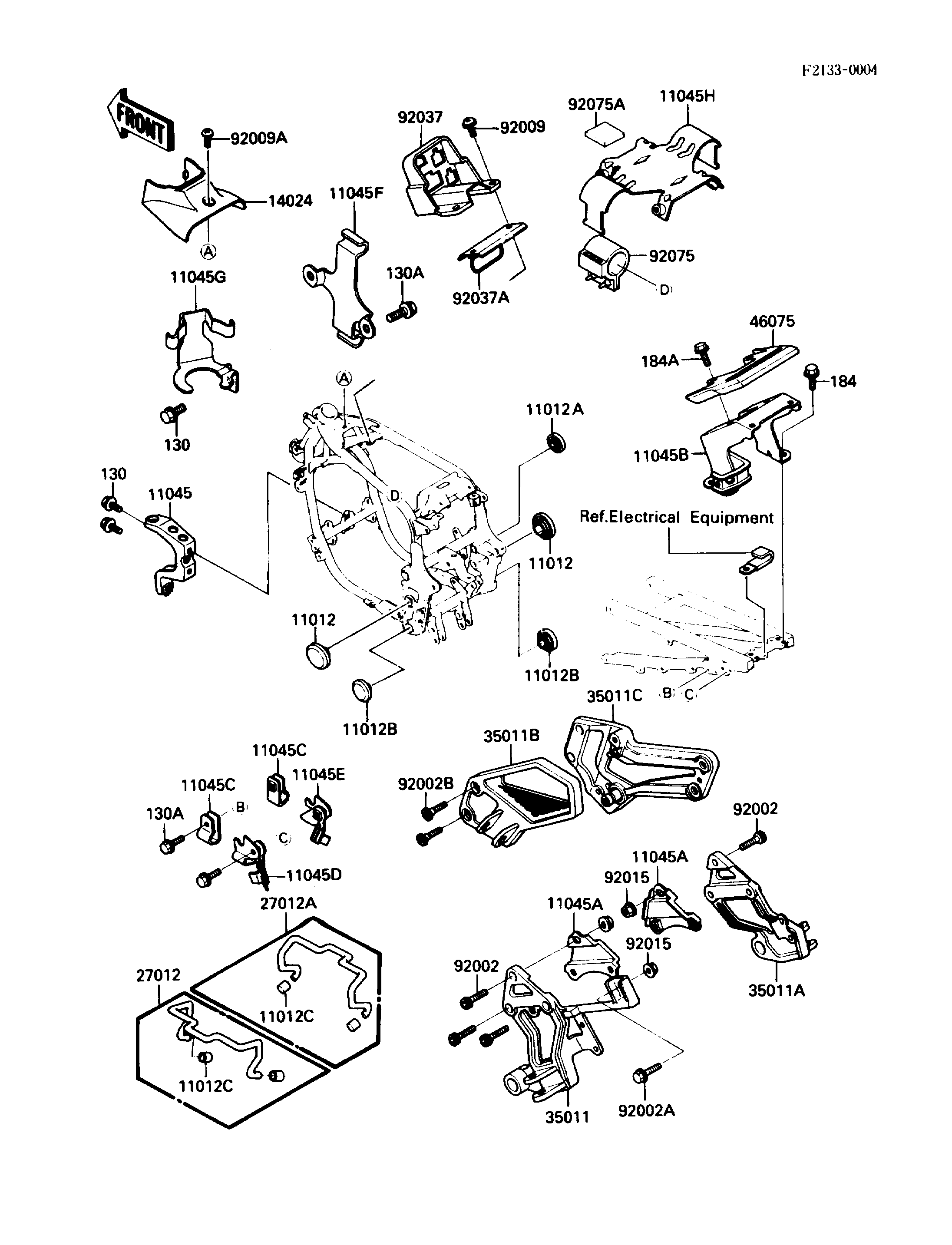

1988 NINJA® 750R - Electro Bracket

DOWNLOAD PDF
SELECT A NEW PART
130A
130A
184
184A
11012
11012
11012A
11012B
11012B
11012C
11012C
11045
11045A
11045A
11045B
11045C
11045C
11045D
11045E
11045H
14024
27012
27012A
35011
35011A
35011B
35011C
46075
92002
92002
92002A
92002B
92009
92009A
92015
92015
92037
92037A
92075
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130A 130J0614 4
BOLT-UPSET-WP-SMALL 184 184J0820 4
BOLT-UPSET-WP-SMALL 184A 184J0830 2
CAP,SWING ARM BRACKET 11012 11012-1459 2
CAP,SWING ARM BRACKET 11012A 11012-1557 1
CAP,SWING ARM BRACKET 11012B 11012-1558 2
CAP,BUNGEE CORD HOOK 11012C 11012-1598 4
BRACKET,RADIATOR 11045 11045-1271 1
BRACKET,MUFFLER STAY 11045A 11045-1284 2
BRACKET,TAIL GRIP 11045B 11045-1285 1
BRACKET,HOOK 11045C 11045-1286 2
BRACKET,HOOK,LH 11045D 11045-1287 1
BRACKET,HOOK,RH 11045E 11045-1288 1
BRACKET,IGNITION COIL 11045H 11045-1448 1
COVER,HEAD GUSSET 14024 14024-1416 1
HOOK,BUNGEE CORD,LH 27012 27012-1357 1
HOOK,BUNGEE CORD,RH 27012A 27012-1358 1
STAY,MUFFLER,LH 35011 35011-1312 1
STAY,MEFFLER,RH 35011A 35011-1313 1
STAY,FR,LH 35011B 35011-1314 1
STAY,FR,RH 35011C 35011-1315 1
GRIP,TAIL 46075 46075-1069 1
BOLT,SOCKET,8X22 92002 92002-1334 6
BOLT,FLANGED,8X20 92002A 92002-1417 1
BOLT,SOCKET,8X20 92002B 92002-1493 4
SCREW,6X20,BLACK 92009 92009-1251 2
SCREW,6X10 92009A 92009-1402 1
NUT,FLANGED,8MM 92015 92015-1406 3
CLAMP,HARNESS COUPLER 92037 92037-1864 1
CLAMP,CABLE 92037A 92037-1865 1
DAMPER,IGNITION COIL 92075 92075-1909 2
DAMPER 92075A 92075-1925 2
BOLT-FLANGED 130 130J0610 2
BOLT-FLANGED 130 130J0610 3
BRACKET,CANISTER 11045F 11045-1365 1
BRACKET,RETURN PUMP 11045G 11045-1366 1
