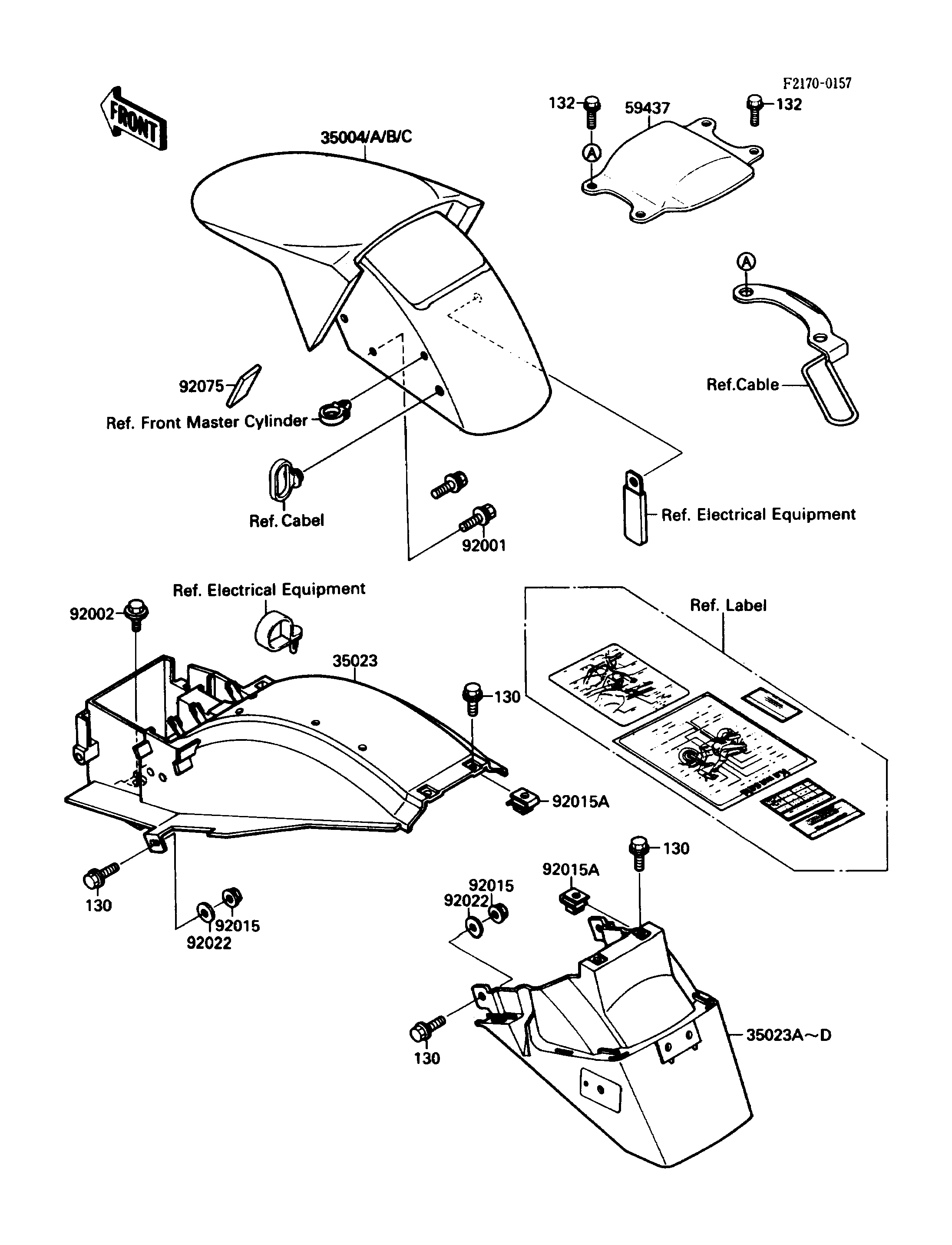

Parts Diagrams |
130
130
130
130
132
132
35004
35004C
35023
35023A
35023B
59437
92001
92002
92015
92015
92015A
92015A
92022
92022
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16,BLACK | 130 | 130J0616 | 8 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0816 | 4 | ||
| FENDER-FRONT,C.P.RED | 35004 | 35004-1196-A5 | 1 | ||
| FENDER-FRONT,EBONY | 35004C | 35004-1196-H8 | 1 | ||
| FENDER-REAR,FR | 35023 | 35023-1178 | 1 | ||
| FENDER-REAR,RR,C.P.RED | 35023A | 35023-1179-A5 | 1 | ||
| FENDER-REAR,RR,EBONY | 35023B | 35023-1179-H8 | 1 | ||
| STABILIZER | 59437 | 59437-1054 | 1 | ||
| BOLT,W/SP,6X16 | 92001 | 92001-1763 | 4 | ||
| BOLT,6X12 | 92002 | 92002-1884 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 4 | ||
| NUT,6MM | 92015A | 92015-1602 | 4 | ||
| WASHER,6.5X20X1.6 | 92022 | 92022-1557 | 4 | ||
| DAMPER | 92075 | 92075-1902 | 2 |
| BOLT-FLANGED,6X16,BLACK | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,C.P.RED | |
| REF # | 35004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,EBONY | |
| REF # | 35004C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,FR | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,RR,C.P.RED | |
| REF # | 35023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,RR,EBONY | |
| REF # | 35023B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STABILIZER | |
| REF # | 59437 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,W/SP,6X16 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
