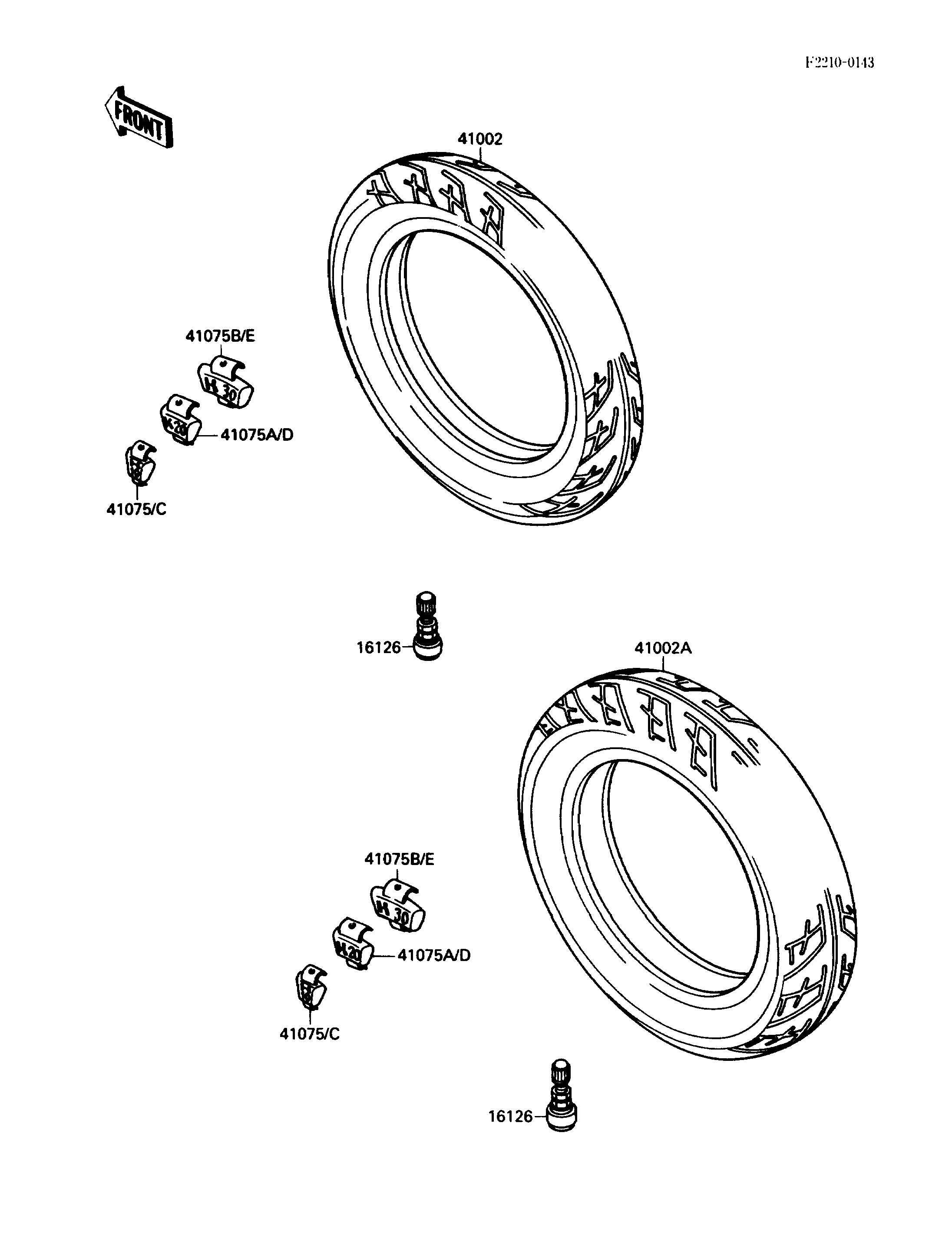

1988 NINJA® 750R - Tires

DOWNLOAD PDF
SELECT A NEW PART
16126
16126
41002
41002A
41075
41075
41075A
41075A
41075B
41075B
41075C
41075C
41075D
41075D
41075E
41075E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,TIRE 16126 16126-1136 2
TIRE,FR,110/90V16-V250,K205F(D 41002 41002-1607 1
TIRE,RR,140/70V18-V250,K205(D) 41002A 41002-1608 1
BALANCER-WHEEL,10G,SILVER 41075 41075-1014 AR
BALANCER-WHEEL,20G,SILVER 41075A 41075-1015 AR
BALANCER-WHEEL,30G,SILVER 41075B 41075-1016 AR
BALANCER-WHEEL,10G,BLACK 41075C 41075-1051 AR
BALANCER-WHEEL,20G,BLACK 41075D 41075-1052 AR
BALANCER-WHEEL,30G,BLACK 41075E 41075-1053 AR
