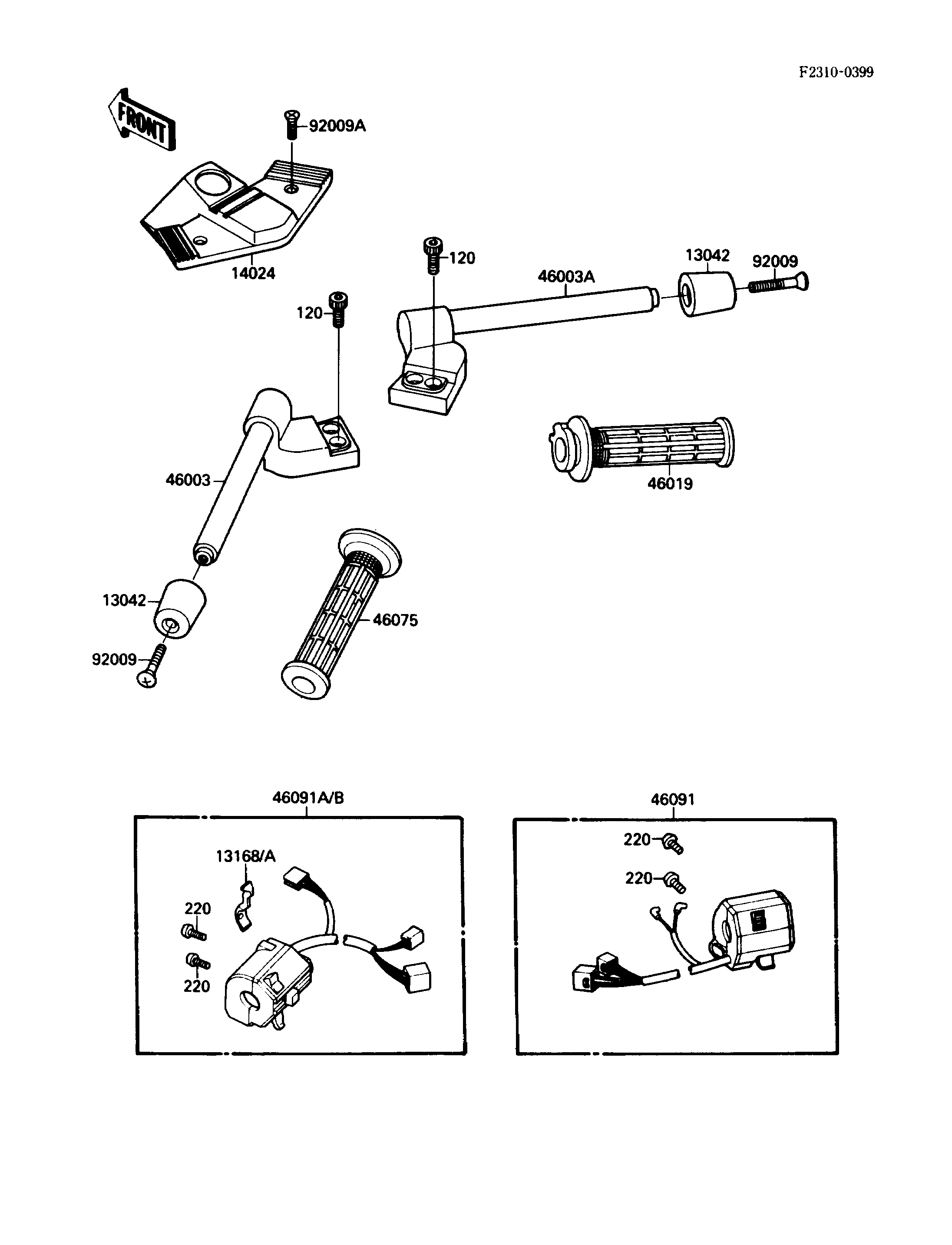

Parts Diagrams |
120
120
220
220
220
220
13042
13042
13168A
14024
46003
46003A
46019
46075
46091
46091B
92009
92009
92009A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,8X20 | 120 | 120S0820 | 4 | ||
| SCREW-PAN-CROS | 220 | 220C0520 | 4 | ||
| WEIGHT,HANDLE | 13042 | 13042-1005 | 2 | ||
| LEVER,CHOKE | 13168A | 13168-1374 | 1 | ||
| COVER,STEERING HEAD | 14024 | 14024-1302 | 1 | ||
| HANDLE,LH | 46003 | 46003-1230 | 1 | ||
| HANDLE,RH | 46003A | 46003-1231 | 1 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1059 | 1 | ||
| GRIP,LH | 46075 | 46075-1028 | 1 | ||
| HOUSING-ASSY-CONTROL,RH | 46091 | 46091-1439 | 1 | ||
| HOUSING-ASSY-CONTROL,LH | 46091B | 46091-1482 | 1 | ||
| SCREW,8X45 | 92009 | 92009-1257 | 2 | ||
| SCREW,5X18 | 92009A | 92009-1328 | 2 |
| BOLT-SOCKET,8X20 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WEIGHT,HANDLE | |
| REF # | 13042 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LEVER,CHOKE | |
| REF # | 13168A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,STEERING HEAD | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HANDLE,LH | |
| REF # | 46003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HANDLE,RH | |
| REF # | 46003A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP-ASSY,THROTTLE | |
| REF # | 46019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,LH | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-ASSY-CONTROL,RH | |
| REF # | 46091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-ASSY-CONTROL,LH | |
| REF # | 46091B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,8X45 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X18 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
