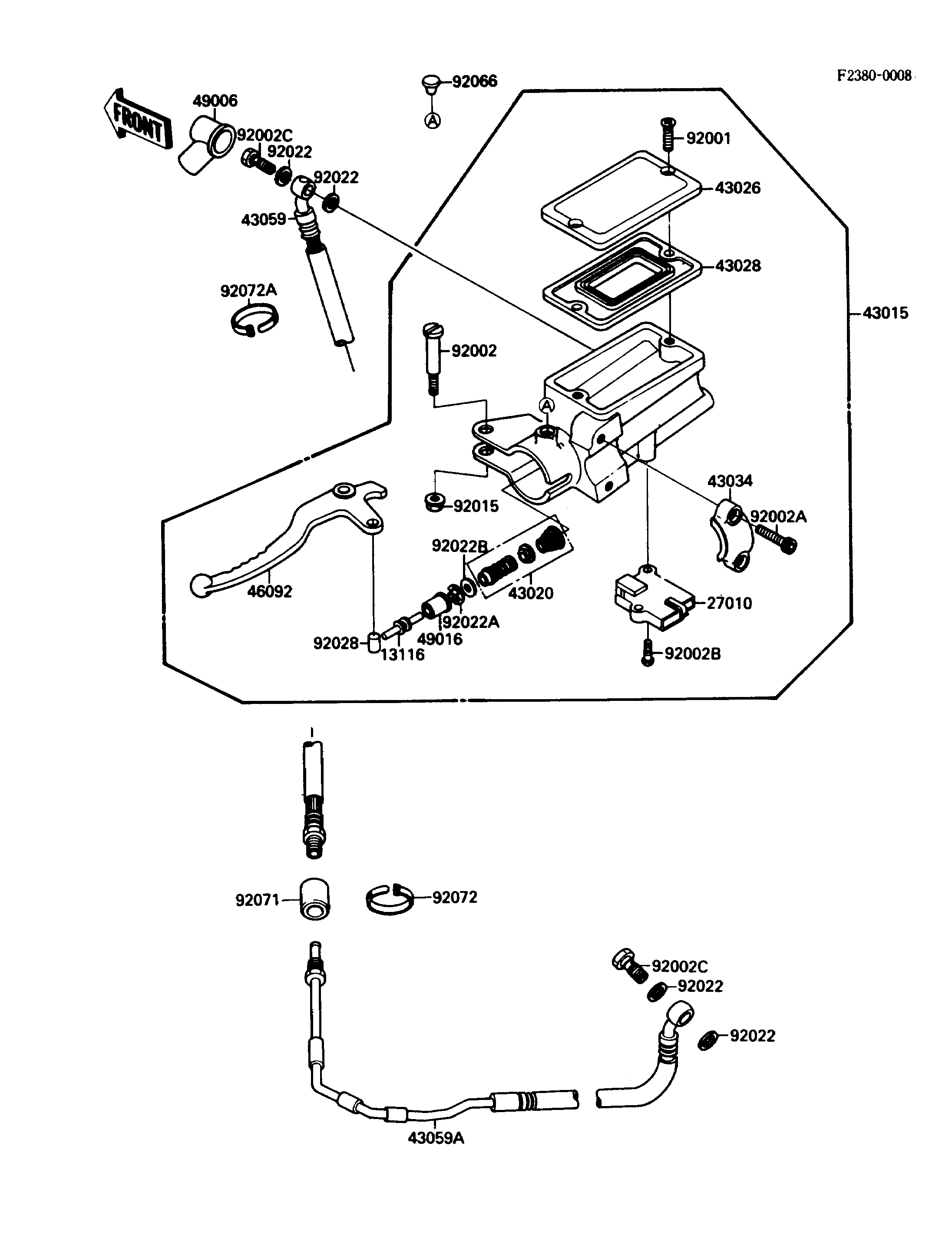

1988 NINJA® 750R - Clutch Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13116
27010
43015
43020
43026
43028
43034
43059
43059A
46092
49006
49016
92001
92002
92002A
92002B
92002C
92002C
92015
92022
92022
92022
92022
92022A
92022B
92028
92066
92071
92072
92072A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROD-PUSH,MASTER CYLINDER 13116 13116-1110 1
SWITCH,CLUTCH 27010 27010-1171 1
CYLINDER-ASSY-MASTER,CLUTCH 43015 43015-1307 1
PISTON-COMP-BRAKE,CLUTCH 43020 43020-1055 1
CAP-BRAKE,FR 43026 43026-1052 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1058 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1054 1
HOSE-BRAKE,CLUTCH 43059 43059-1332 1
HOSE-BRAKE,CLUTCH 43059A 43059-1377 1
LEVER-GRIP,CLUTCH 46092 46092-1130 1
BOOT,DUST 49006 49006-1040 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
SCREW,5MM 92001 92001-1727 2
BOLT,LEVER SET 92002 92002-1322 1
BOLT,SOCKET,6X20 92002A 92002-1324 2
SCREW 92002B 92002-1325 1
BOLT,OIL,L=23 92002C 92002-1888 2
NUT,FLANGED,6MM 92015 92015-1233 1
WASHER,10.5X15X1.5 92022 43067-001 4
WASHER,PISTON 92022A 92022-1605 1
WASHER,PISTON 92022B 92022-1606 1
BUSHING,MASTER CYLINDER 92028 92028-1310 1
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 1
GROMMET 92071 92071-1143 1
BAND,L=185 92072 92072-1195 1
BAND,L=365 92072A 92072-1197 3
