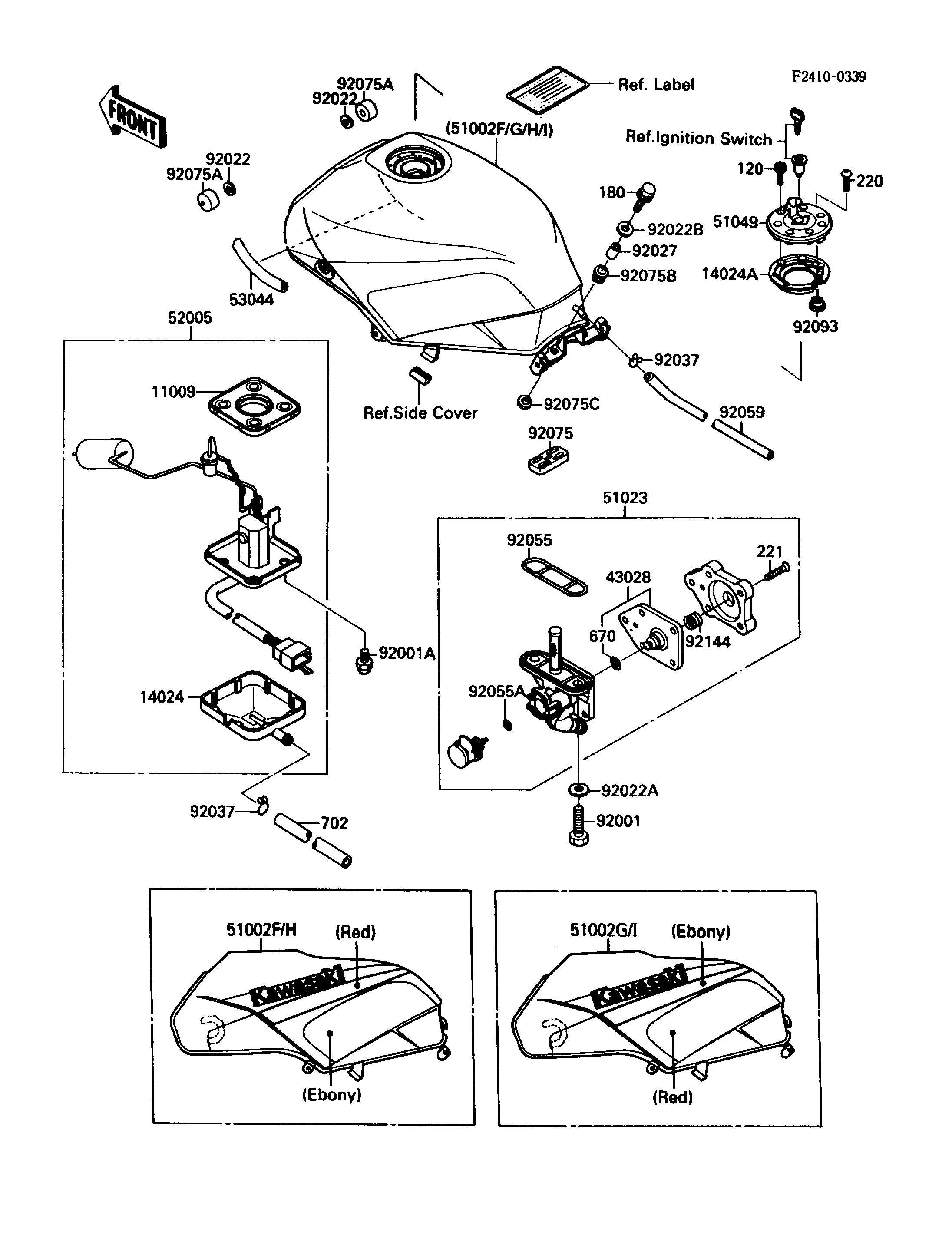

1989 Ninja® 750R - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
14024
14024
14024A
14024A
43028
43028
51023
51023
51049
51049
52005
52005
53044
53044
92001
92001
92001A
92001A
92022
92022
92022
92022
92022A
92022A
92022B
92022B
92027
92027
92037
92037
92037
92037
92055
92055
92055A
92055A
92059
92059
92075
92075
92075A
92075A
92075A
92075A
92075B
92075B
120
120
180
180
220
220
221
221
670
670
702
702
92075C
92075C
92144
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11009 11009-1656 1
COVER,FUEL GAUGE 14024 14025-1536 1
COVER,TANK CAP 14024A 14025-1913 1
DIAPHRAGM,TAP 43028 43028-1068 1
TAP-ASSY,FUEL 51023 51023-1133 1
CAP-TANK,FUEL 51049 51049-1079 1
GAUGE,FUEL 52005 52005-1088 1
TRIM,FUEL TANK 53044 53044-1171 1
BOLT,6X20 92001 92001-1091 2
BOLT,FUEL GAUGE 92001A 92001-1705 4
WASHER,10.5X26X2.3 92022 92022-044 2
WASHER,6.2X11X1.5 92022A 92022-183 2
WASHER,6.5X22X1.6 92022B 92022-237 2
COLLAR,6.8X10X14.5 92027 92027-156 2
CLAMP,TUBE 92037 92037-147 2
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP BOTTOM 92055A 92055-1377 1
TUBE,6X10X335 92059 92059-1830 1
DAMPER,FUEL TANK,RR 92075 92075-1114 1
DAMPER,FUEL TANK 92075A 92075-125 2
DAMPER,MALE 92075B 92075-174 2
BOLT-SOCKET 120 120S0512 7
BOLT-UPSET-WS 180 180G0625 2
SCREW-PAN-CROS 220 220C0508 1
SCREW-CSK-CROS,4X14 221 221B0414 5
O RING,4MM 670 670B1504 1
TUBE-RUBBER 702 702A07480 1
DAMPER,FEMALE 92075C 92075-175 2
SPRING,TAP DIAPHRAGM 92144 92144-1119 1
TANK-COMP-FUEL,EBONY 51002F 51002-5481-H8 1
TANK-COMP-FUEL,RED 51002G 51002-5482-B1 1
TANK-COMP-FUEL,EBONY 51002H 51002-5483-H8 1
TANK-COMP-FUEL,RED 51002I 51002-5484-B1 1
SEAL,FUEL TANK CAP 92093 92093-1030 1
