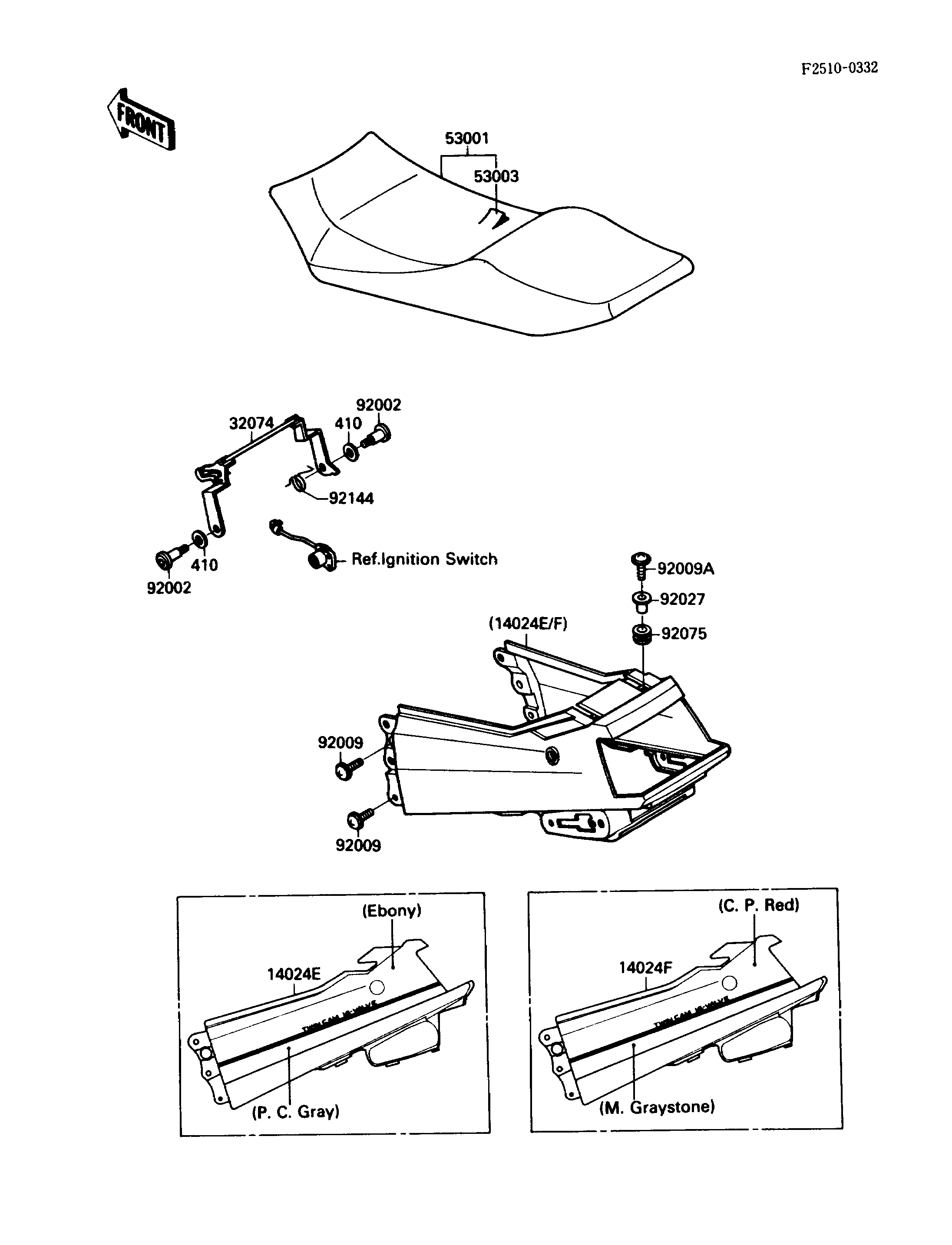

Parts Diagrams |
410
410
14024E
14024E
14024F
14024F
32074
53001
53003
92002
92002
92009
92009
92009A
92027
92075
92144
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-PLAIN-SMALL,10MM,BLACK | 410 | 410F1000 | 2 | ||
| COVER,SEAT,EBONY | 14024E | 14024-5051-H8 | 1 | ||
| COVER,SEAT,C.P.RED | 14024F | 14024-5052-A5 | 1 | ||
| BRACKET-LOCK,SEAT | 32074 | 32074-1130 | 1 | ||
| SEAT-ASSY,DUAL | 53001 | 53001-1494 | 1 | ||
| LEATHER,SEAT | 53003 | 53003-1178 | 1 | ||
| BOLT,SOCKET,6MM | 92002 | 92002-1616 | 2 | ||
| SCREW,6X18,BLACK | 92009 | 92009-1181 | 4 | ||
| SCREW,6X20,BLACK | 92009A | 92009-1251 | 2 | ||
| COLLAR,L=14.1 | 92027 | 92027-1920 | 2 | ||
| DAMPER | 92075 | 92075-1913 | 2 | ||
| SPRING,SEAT LOCK | 92144 | 92144-1086 | 1 |
