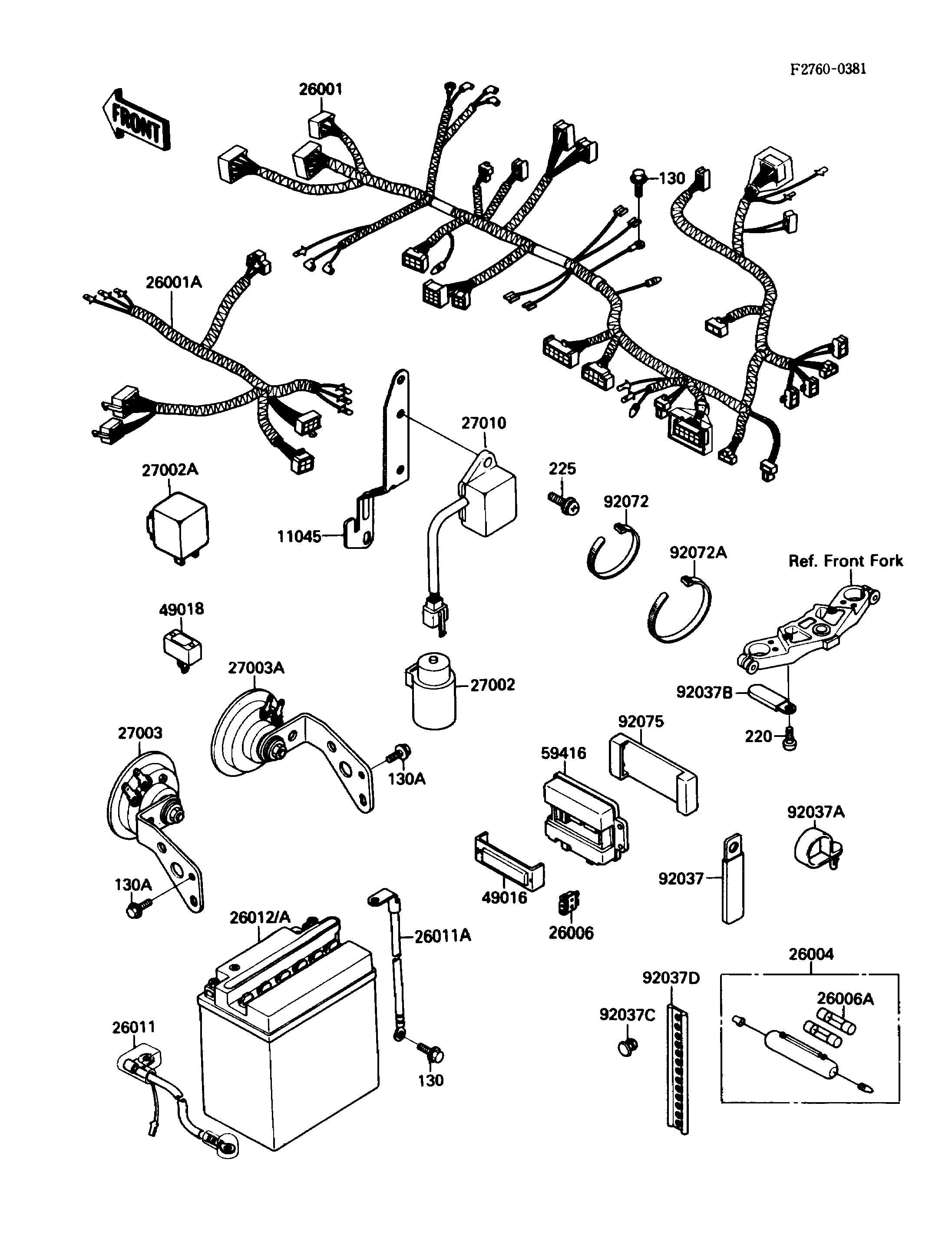

1988 NINJA® 750R - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
220
225
11045
26001
26001A
26004
26006
26006A
26011
26011A
26012
27002
27002A
27003
27003A
27010
49016
49018
59416
92037
92037A
92037B
92037C
92037D
92072
92072A
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 2
BOLT-FLANGED 130A 130J0610 2
SCREW-PAN-CROS 220 220C0510 1
SCREW-PAN-WSP-CROS 225 225B0620 2
BRACKET,RELAY 11045 11045-1369 1
HARNESS,MAIN 26001 26001-1819 1
HARNESS,FR 26001A 26001-1841 1
FUSE-ASSY 26004 26004-1075 1
FUSE,10A-R 26006 26006-1007 6
FUSE,30A,L=30 26006A 26006-1059 2
WIRE-LEAD,BATTERY(+) 26011 26011-1377 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1395 1
BATTERY,12V 14AH,YB14L-A2 26012 26012-1177 1
RELAY-ASSY 27002 27002-1051 1
RELAY-ASSY,TURN SIGNAL 27002A 27002-1061 1
HORN,LH,LOW TONE 27003 27003-1271 1
HORN,RH,HIGH TONE 27003A 27003-1272 1
SWITCH,RESERV LIGHTING 27010 27010-1066 1
COVER-SEAL,JUNCTION BOX 49016 49016-1128 1
DIODE 49018 49018-1055 1
CASE-ELECTRIC,JUNCTION BOX 59416 59416-1064 1
CLAMP,WIRING HARNESS 92037 92037-1069 4
CLAMP,HOSE 92037A 92037-1163 5
CLAMP,WIRING HARNESS 92037B 92037-1539 5
CLAMP 92037C 92037-1579 2
CLAMP,BAND,L=72 92037D 92037-1883 1
BAND,L=149 92072 92072-031 1
BAND,L=185 92072A 92072-1195 5
DAMPER,JUNCTION BOX 92075 92075-1688 1
