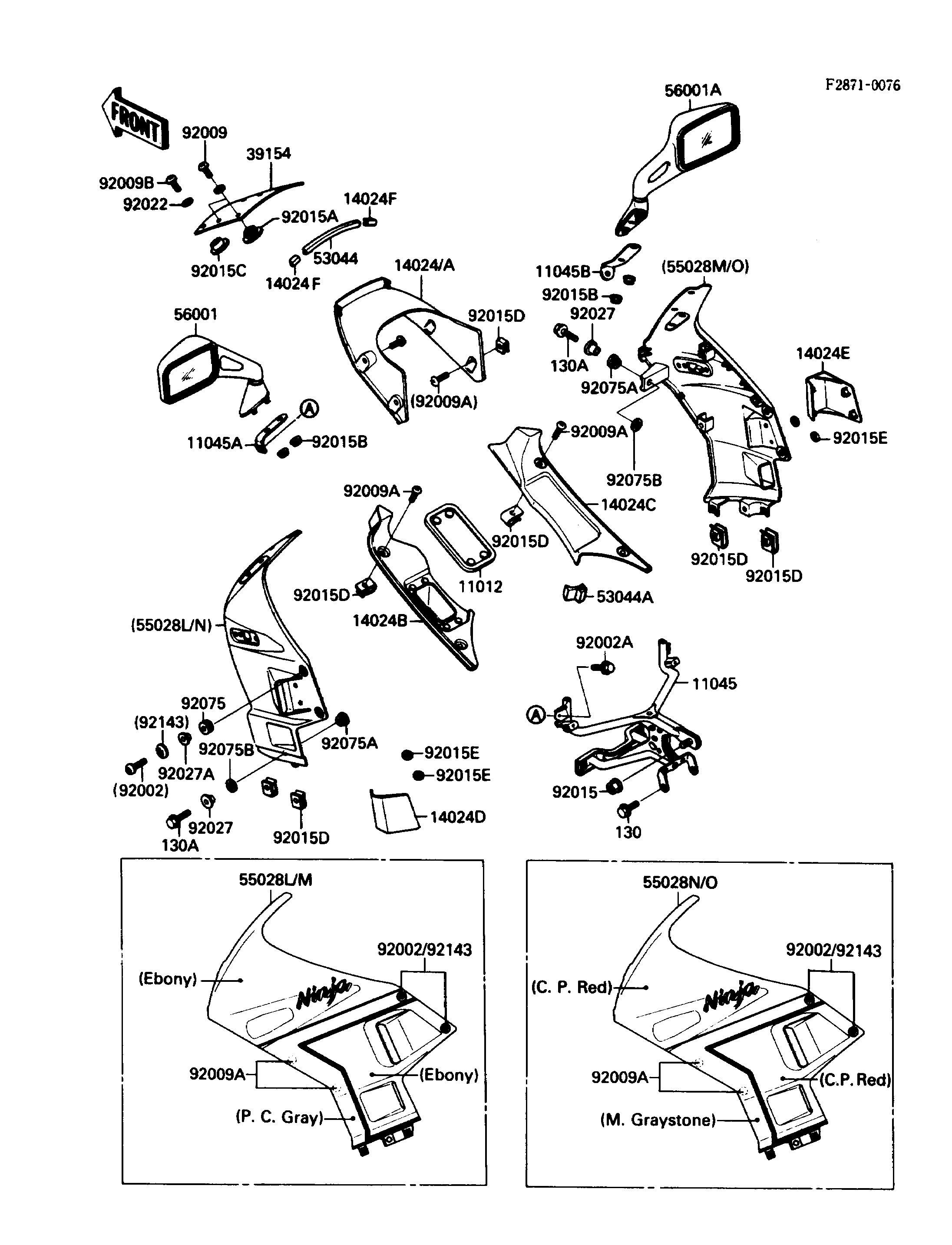

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11012
11012
11045
11045
11045A
11045A
11045B
11045B
14024
14024
14024A
14024A
14024B
14024B
14024C
14024C
14024D
14024D
14024E
14024E
14024F
14024F
14024F
14024F
39154
39154
53044
53044
53044A
53044A
55028L
55028L
55028M
55028M
55028N
55028N
55028O
55028O
56001
56001
56001A
56001A
92002
92002
92002
92002
92002A
92002A
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92015
92015
130
130
130A
130A
130A
130A
92015A
92015A
92015B
92015B
92015B
92015B
92015C
92015C
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015E
92015E
92015E
92015E
92015E
92015E
92022
92022
92027
92027
92027
92027
92027A
92027A
92075
92075
92075A
92075A
92075A
92075A
92075B
92075B
92075B
92075B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,INNER COWLING COVER | 11012 | 11012-1570 | 1 | ||
BRACKET,COWLING STAY | 11045 | 11045-1270 | 1 | ||
BRACKET,MIRROR,LH | 11045A | 11045-1412 | 1 | ||
BRACKET,MIRROR,RH | 11045B | 11045-1413 | 1 | ||
COVER,HEAD LAMP,C.P.RED | 14024 | 14024-1337-A5 | 1 | ||
COVER,HEAD LAMP,EBONY | 14024A | 14024-1337-H8 | 1 | ||
COVER,INNER COWLING,LH | 14024B | 14024-1380 | 1 | ||
COVER,INNER COWLING,RH | 14024C | 14024-1381 | 1 | ||
COVER,HEAT GUARD,LH | 14024D | 14024-1417 | 1 | ||
COVER,HEAT GUARD,RH | 14024E | 14024-1418 | 1 | ||
COVER,TRIM END | 14024F | 14025-1756 | 2 | ||
WINDSHIELD | 39154 | 39154-1073 | 1 | ||
TRIM,WINDSHIELD,L=345 | 53044 | 53044-1177 | 1 | ||
TRIM,INNER COWLING COVER | 53044A | 53044-1195 | 2 | ||
COWLING,UPP,LH,EBONY/GRAY | 55028L | 55028-5369-T4 | 1 | ||
COWLING,UPP,RH,EBONY/GRAY | 55028M | 55028-5370-T4 | 1 | ||
COWLING,UPP,LH,RED/GRAYSTONE | 55028N | 55028-5372-CF | 1 | ||
COWLING,UPP,RH,RED/GRAYSTONE | 55028O | 55028-5373-CF | 1 | ||
MIRROR-ASSY,LH | 56001 | 56001-1325 | 1 | ||
MIRROR-ASSY,RH | 56001A | 56001-1326 | 1 | ||
BOLT,SOCKET,6X18,BLACK | 92002 | 92002-1514 | 4 | ||
BOLT,6X12 | 92002A | 92002-1884 | 2 | ||
BOLT,6X30 | 92009 | 92002-1335 | 4 | ||
SCREW,5X14,BLACK | 92009A | 92009-1383 | 8 | ||
SCREW,5X20,BLACK | 92009B | 92009-1453 | 2 | ||
NUT,FLANGED,8MM,BLACK | 92015 | 92015-1183 | 1 | ||
BOLT-FLANGED | 130 | 130J0610 | 2 | ||
BOLT-FLANGED,6X25 | 130A | 130J0625 | 4 | ||
NUT,5MM,COWLING | 92015A | 92015-1343 | 4 | ||
NUT,FLANGED,6MM | 92015B | 92015-1367 | 4 | ||
NUT,WELL,5MM | 92015C | 92015-1640 | 2 | ||
NUT,5MM | 92015D | 92015-1710 | 6 | ||
NUT,LOCK,5MM | 92015E | 92018-004 | 4 | ||
WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 6 | ||
COLLAR,L=13.1,BLACK | 92027 | 92027-1450 | 4 | ||
COLLAR,L=9.1,WHITE | 92027A | 92027-1795 | 4 | ||
DAMPER | 92075 | 92075-1634 | 4 | ||
DAMPER,MALE | 92075A | 92075-174 | 4 | ||
DAMPER,FEMALE | 92075B | 92075-175 | 4 | ||
COLLAR,L=6.5,BLACK | 92143 | 92143-1086 | 4 |
