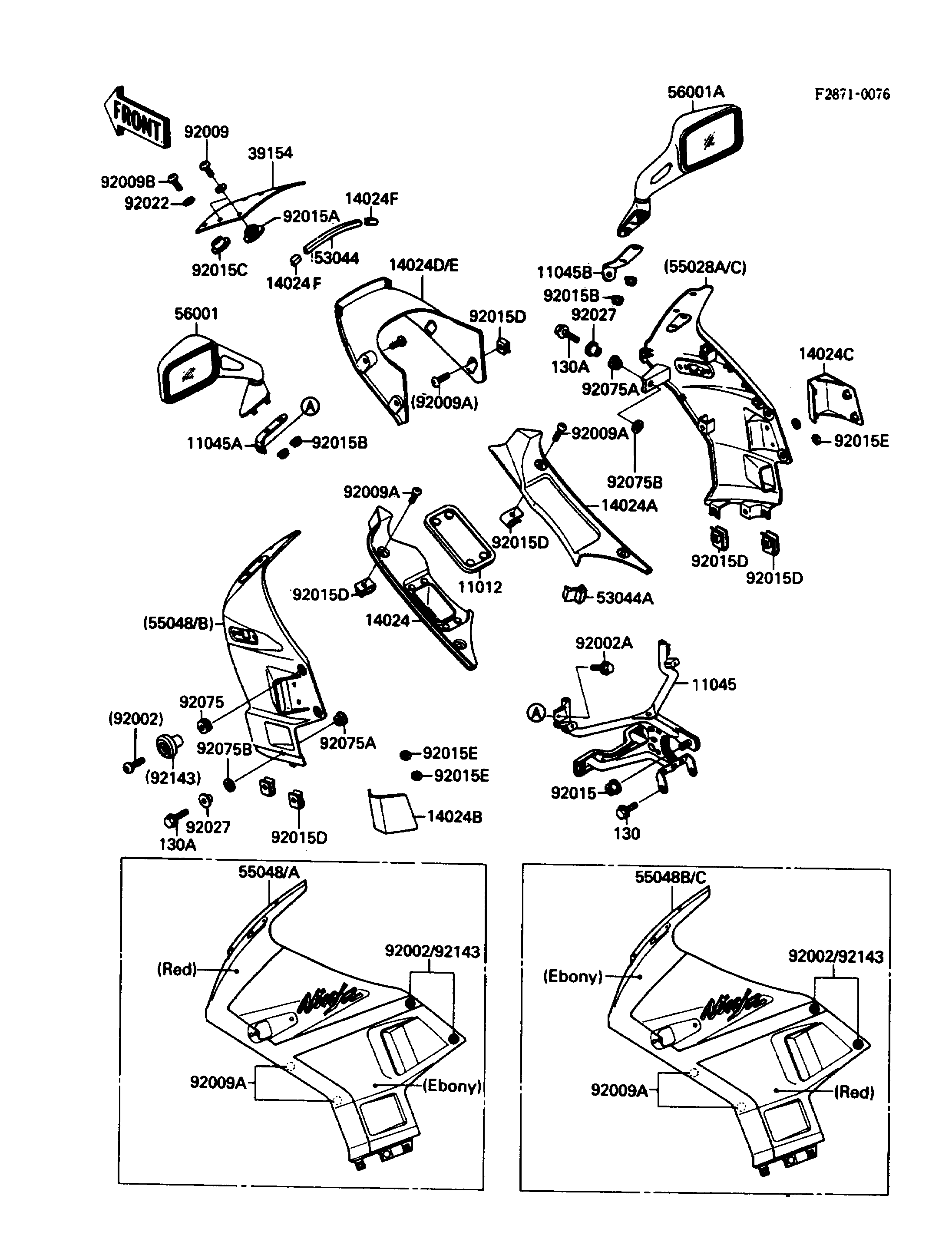

1989 Ninja® 750R - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11045
11045
11045A
11045A
11045B
11045B
14024
14024
14024A
14024A
14024B
14024B
14024C
14024C
14024D
14024D
14024E
14024E
14024F
14024F
14024F
14024F
39154
39154
53044
53044
53044A
53044A
55048
55048
55048A
55048A
55048B
55048B
55048C
55048C
56001
56001
56001A
56001A
92002
92002
92002
92002
92002A
92002A
92009
92009
130
130
130A
130A
130A
130A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92015C
92015C
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015E
92015E
92015E
92015E
92015E
92015E
92022
92022
92027
92027
92027
92027
92075
92075
92075A
92075A
92075A
92075A
92075B
92075B
92075B
92075B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,INNER COWLING COVER 11012 11012-1570 1
BRACKET,COWLING STAY 11045 11045-1270 1
BRACKET,MIRROR,LH 11045A 11045-1412 1
BRACKET,MIRROR,RH 11045B 11045-1413 1
COVER,INNER COWLING,LH 14024 14024-1380 1
COVER,INNER COWLING,RH 14024A 14024-1381 1
COVER,HEAT GUARD,LH 14024B 14024-1417 1
COVER,HEAT GUARD,RH 14024C 14024-1418 1
COVER,HEAD LAMP,F.RED 14024D 14024-1677-B1 1
COVER,HEAD LAMP,EBONY 14024E 14024-1677-H8 1
COVER,TRIM END 14024F 14025-1756 2
WINDSHIELD 39154 39154-1073 1
TRIM,WINDSHIELD,L=345 53044 53044-1177 1
TRIM,INNER COWLING COVER 53044A 53044-1195 2
COWLING.,UPP,LH,EBONY/RED 55048 55048-5042-J3 1
COWLING.,UPP,RH,EBONY/RED 55048A 55048-5043-J3 1
COWLING.,UPP,LH,RED/EBONY 55048B 55048-5045-J3 1
COWLING.,UPP,RH,RED/EBONY 55048C 55048-5046-J3 1
MIRROR-ASSY,LH 56001 56001-1325 1
MIRROR-ASSY,RH 56001A 56001-1326 1
BOLT,SOCKET,6X18,BLACK 92002 92002-1514 4
BOLT,6X12 92002A 92002-1884 2
SCREW,5X10 92009 92009-1335 4
BOLT-FLANGED 130 130J0610 2
BOLT-FLANGED,6X25 130A 130J0625 4
SCREW,5X14,BLACK 92009A 92009-1383 8
SCREW,5X20,BLACK 92009B 92009-1453 2
NUT,FLANGED,8MM,BLACK 92015 92015-1183 1
NUT,5MM,COWLING 92015A 92015-1343 4
NUT,FLANGED,6MM 92015B 92015-1367 4
NUT,WELL,5MM 92015C 92015-1640 2
NUT,5MM 92015D 92015-1710 6
NUT,LOCK,5MM 92015E 92018-004 4
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 6
COLLAR,L=13.1,BLACK 92027 92027-1450 4
DAMPER 92075 92075-1634 4
DAMPER,MALE 92075A 92075-174 4
DAMPER,FEMALE 92075B 92075-175 4
COLLAR,BLACK 92143 92143-1226 4
COLLAR,WHITE 92143A 92143-1273 4
