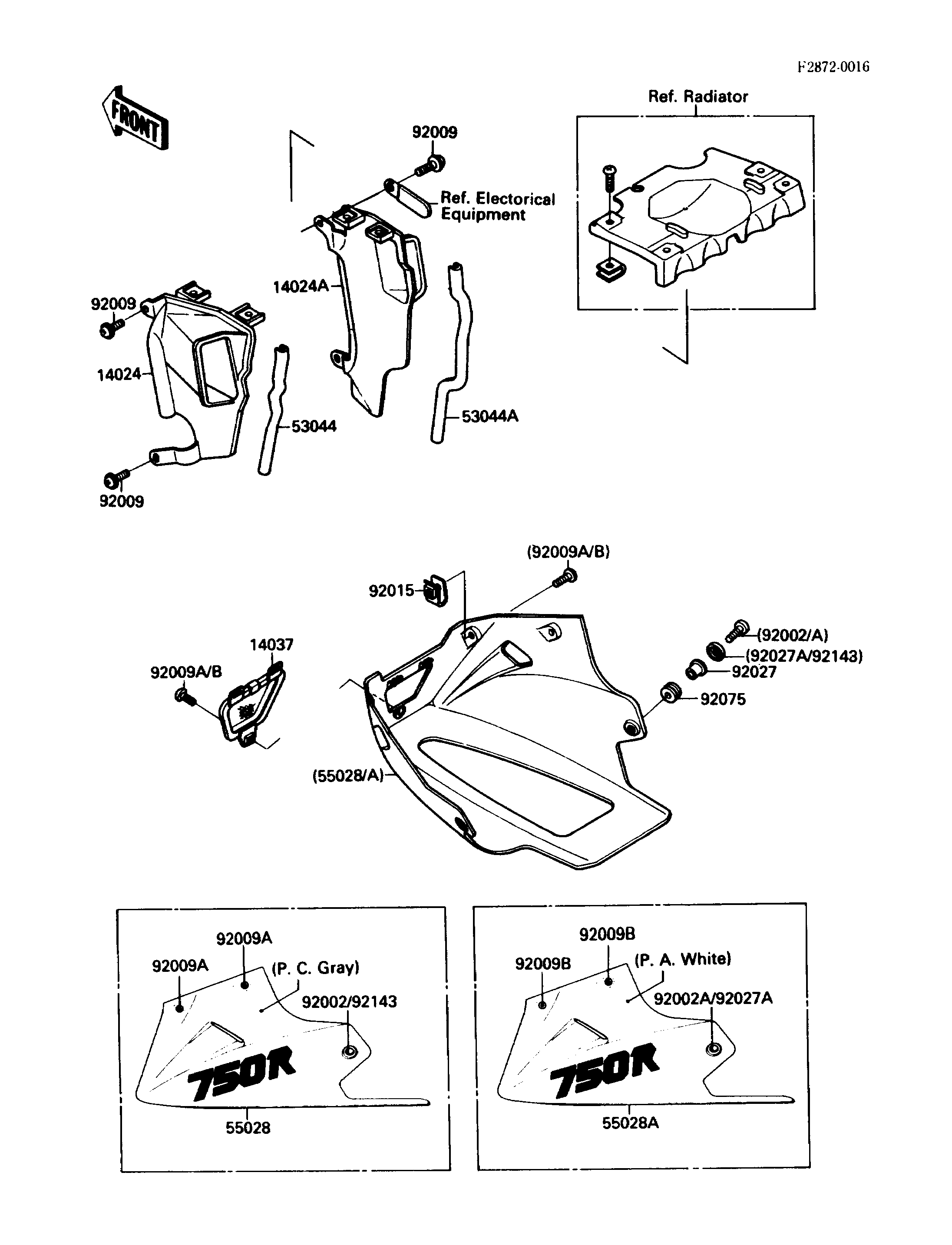

1987 NINJA® 750R - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
14024
14024A
14037
53044
53044A
55028
55028A
92002
92002A
92009
92009
92009
92009A
92009A
92009A
92009B
92009B
92009B
92015
92027
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,LOUVER,LH 14024 14024-1346 1
COVER,LOUVER,RH 14024A 14024-1347 1
SCREEN 14037 14037-1086 1
TRIM,LOUVER COVER,LH 53044 53044-1178 1
TRIM,LOUVER COVER,RH 53044A 53044-1179 1
COWLING,LWR,P.C.GRAY 55028 55028-5269-T2 1
COWLING,LWR,P.A.WHITE 55028A 55028-5272-R1 1
BOLT,SOCKET,6X18,BLACK 92002 92002-1514 2
BOLT,SOCKET,6X18,WHITE 92002A 92002-1889 2
SCREW,6X14 92009 92009-1288 4
SCREW,5X16,BLACK 92009A 92009-1301 5
SCREW,5X16,WHITE 92009B 92009-1464 5
NUT,5MM 92015 92015-1710 4
COLLAR,L=9.1,WHITE 92027 92027-1795 2
DAMPER 92075 92075-1634 2
COLLAR,L=6.5,WHITE 92027A 92027-1886 2
COLLAR,BLACK 92143 92143-1226 2
