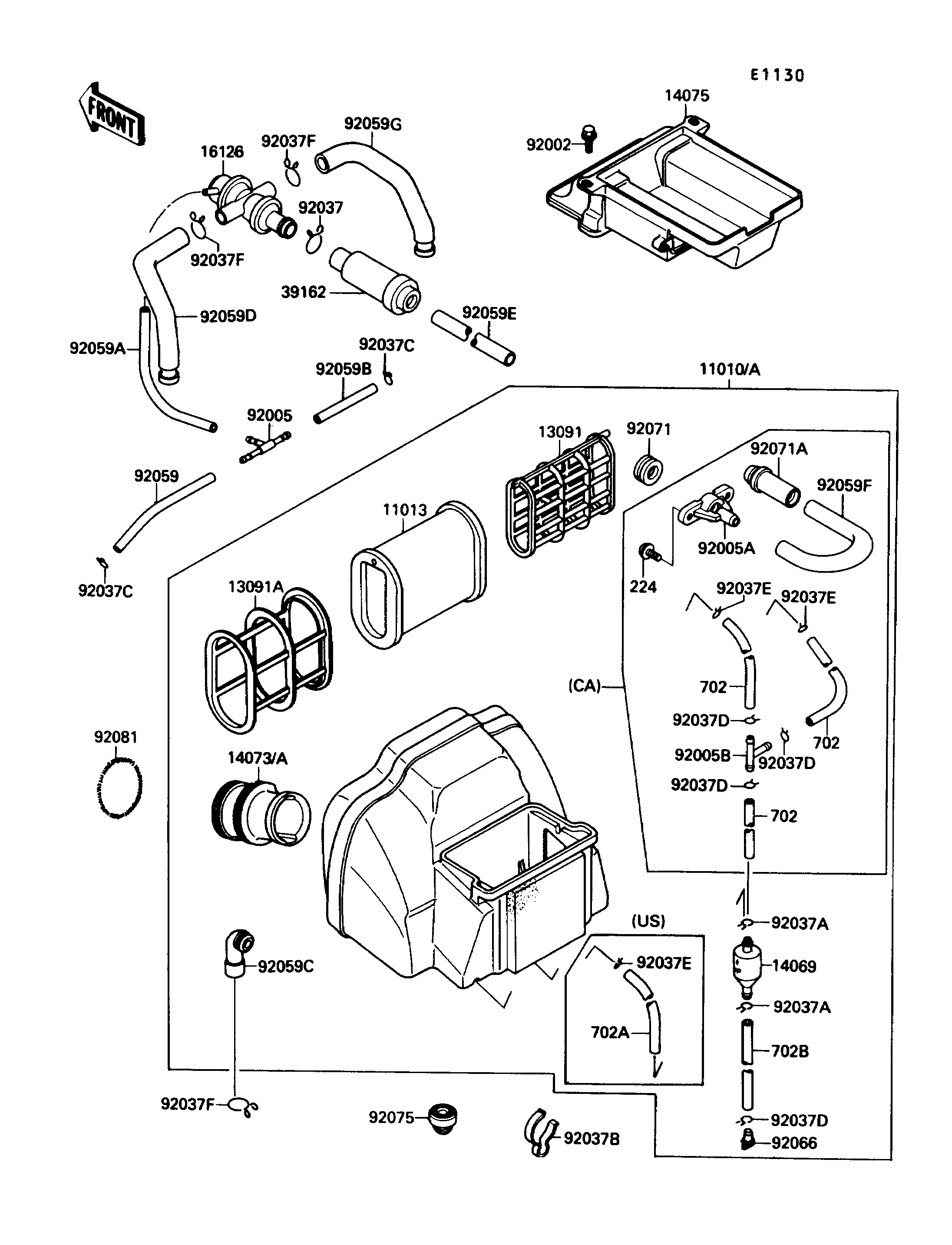

1990 Ninja® 750R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-1306 1 US
FILTER-ASSY-AIR 11010A 11010-1316 1 CA
ELEMENT-AIR FILTER 11013 11013-1154 1
HOLDER,ELEMENT 13091 13091-1467 1
HOLDER,ELEMENT 13091A 13091-1468 1
BREATHER 14069 14069-1051 1
DUCT,#1,#4 14073 14073-1277 2
DUCT,#2,#3 14073A 14073-1278 2
CAP-ASSY,AIR FILTER 14075 14075-1070 1
VALVE,AIR SWITCH 16126 16126-1104 1
SILENCER-INTAKE 39162 39162-1003 1
BOLT,6X16 92002 92002-1720 2
FITTING,TUBE,T-TYPE 92005 92005-1017 1
FITTING 92005A 92005-1139 1 CA
FITTING,T-TYPE 92005B 92005-1143 1 CA
CLAMP,TUBE 92037 92037-1076 1
CLAMP,TUBE 92037A 92037-147 2
CLAMP,HOSE 92037B 92037-1552 1
CLAMP 92037C 92037-1610 2
CLAMP 92037D 92037-1712 4 CA
CLAMP 92037D 92037-1712 1 US
CLAMP,TUBE 92037E 92037-1972 2 CA
CLAMP,TUBE 92037E 92037-1972 1 US
CLAMP,TUBE 92037F 92037-213 3
TUBE,4X9X190 92059 92059-1032 1
TUBE,4X9X290 92059A 92059-1043 1
TUBE,4X9X100 92059B 92059-1058 1
TUBE,BREATHER 92059C 92059-1716 1
TUBE,AIR SWITCH-HEAD,LH 92059D 92059-1717 1
TUBE,AIR SWITCH-AIR FILTER 92059E 92059-1718 1
TUBE 92059F 92059-1759 1 CA
TUBE,AIR SWITCH-HEAD,RH 92059G 92059-1765 1
PLUG,DRAIN 92066 92066-1211 1
GROMMET,AIR FILTER 92071 92071-1028 1
GROMMET 92071A 92071-1132 1 CA
DAMPER 92075 92075-1045 1
SPRING,AIR FILTER DUCT 92081 92081-1422 4
SCREW-PAN-WP-CROS 224 224C0614 2 CA
TUBE-RUBBER 702 702A07100 3 CA
TUBE-RUBBER 702A 702A07200 1 US
TUBE-RUBBER 702B 702A07240 1
