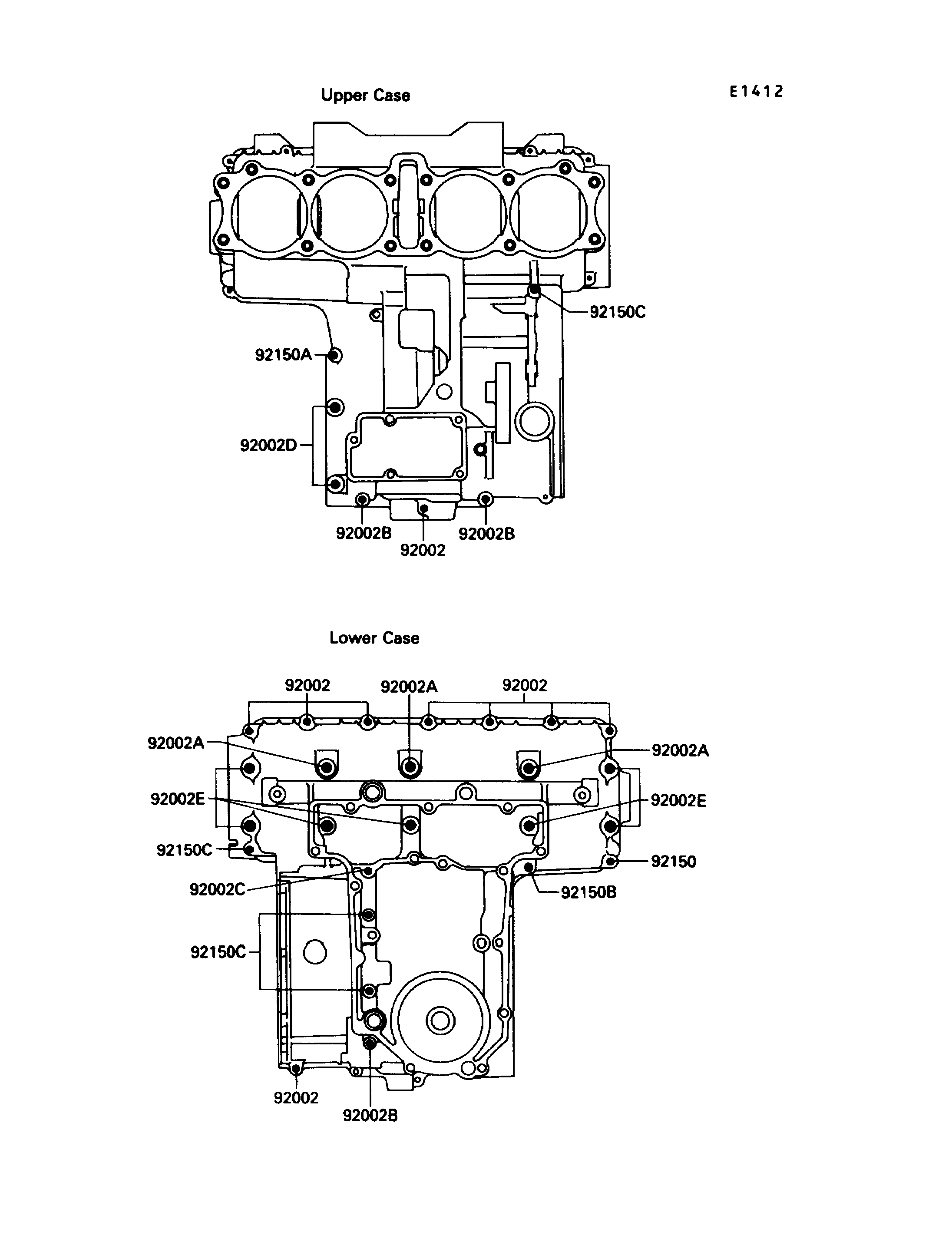

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,6X38 92002 92001-1899 9
BOLT,8X90 92002A 92002-1057 3
BOLT,6X110 92002B 92002-1791 3
BOLT,6X130 92002C 92002-1792 1
BOLT,8X70 92002D 92002-1793 2
BOLT,8X83 92002E 92002-1794 7
BOLT,6X30 92150 92150-1300 1
BOLT,6X38 92150A 92150-1301 1
BOLT,6X55 92150B 92150-1302 1
BOLT,6X90 92150C 92150-1312 4
