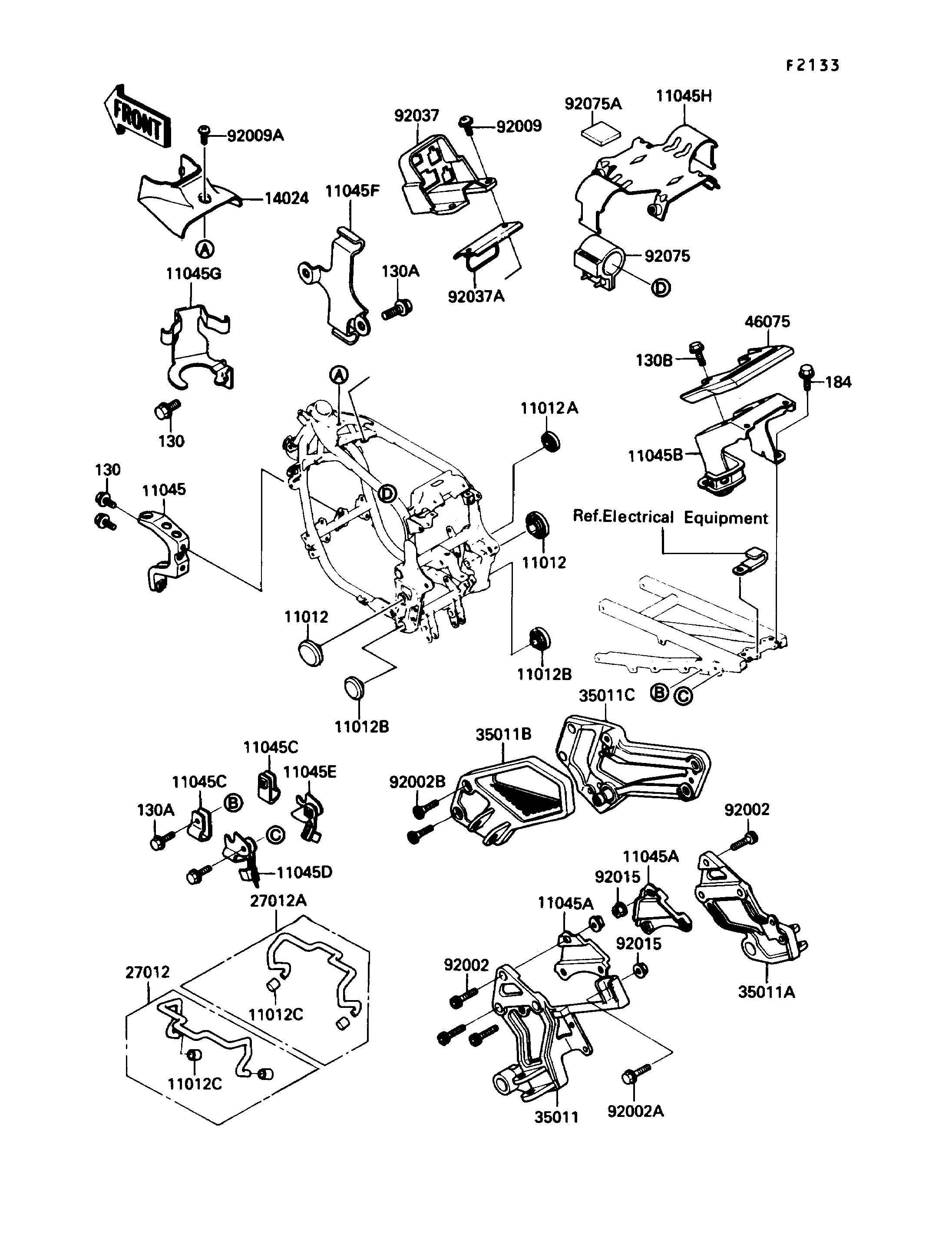

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,SWING ARM BRACKET | 11012 | 11012-1459 | 2 | ||
CAP,SWING ARM BRACKET | 11012A | 11012-1557 | 1 | ||
CAP,SWING ARM BRACKET | 11012B | 11012-1558 | 2 | ||
CAP,BUNGEE CORD HOOK | 11012C | 11012-1598 | 4 | ||
BRACKET,RADIATOR | 11045 | 11045-1271 | 1 | ||
BRACKET,MUFFLER STAY | 11045A | 11045-1284 | 2 | ||
BRACKET,TAIL GRIP | 11045B | 11045-1285 | 1 | ||
BRACKET,HOOK | 11045C | 11045-1286 | 2 | ||
BRACKET,HOOK,LH | 11045D | 11045-1287 | 1 | ||
BRACKET,HOOK,RH | 11045E | 11045-1288 | 1 | ||
BRACKET,CANISTER | 11045F | 11045-1365 | 1 | CA | |
BRACKET,RETURN PUMP | 11045G | 11045-1366 | 1 | CA | |
BRACKET,IGNITION COIL | 11045H | 11045-1448 | 1 | ||
COVER,HEAD GUSSET | 14024 | 14024-1416 | 1 | ||
HOOK,BUNGEE CORD,LH | 27012 | 27012-1357 | 1 | ||
HOOK,BUNGEE CORD,RH | 27012A | 27012-1358 | 1 | ||
STAY,MUFFLER,LH | 35011 | 35011-1312 | 1 | ||
STAY,MEFFLER,RH | 35011A | 35011-1313 | 1 | ||
STAY,FR,LH | 35011B | 35011-1314 | 1 | ||
STAY,FR,RH | 35011C | 35011-1315 | 1 | ||
GRIP,TAIL | 46075 | 46075-1069 | 1 | ||
BOLT,SOCKET,8X22 | 92002 | 92002-1334 | 6 | ||
BOLT,FLANGED,8X20 | 92002A | 92002-1417 | 1 | ||
BOLT,SOCKET,8X20 | 92002B | 92002-1493 | 4 | ||
SCREW,6X20,BLACK | 92009 | 92009-1251 | 2 | ||
SCREW,6X10 | 92009A | 92009-1402 | 1 | ||
NUT,FLANGED,8MM | 92015 | 92015-1406 | 3 | ||
CLAMP,HARNESS COUPLER | 92037 | 92037-1864 | 1 | ||
CLAMP,CABLE | 92037A | 92037-1865 | 1 | ||
DAMPER,IGNITION COIL | 92075 | 92075-1909 | 2 | ||
DAMPER | 92075A | 92075-1925 | 2 | ||
BOLT-FLANGED | 130 | 130J0610 | 3 | CA | |
BOLT-FLANGED | 130 | 130J0610 | 2 | US | |
BOLT-FLANGED,6X14,BLACK | 130A | 130J0614 | 4 | ||
BOLT-FLANGED,8X30 | 130B | 130J0830 | 2 | ||
BOLT-UPSET-WP-SMALL | 184 | 184J0820 | 4 |
CAP,SWING ARM BRACKET | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,SWING ARM BRACKET | |
REF # | 11012A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,SWING ARM BRACKET | |
REF # | 11012B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,BUNGEE CORD HOOK | |
REF # | 11012C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BRACKET,RADIATOR | |
REF # | 11045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,MUFFLER STAY | |
REF # | 11045A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,TAIL GRIP | |
REF # | 11045B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,HOOK | |
REF # | 11045C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,HOOK,LH | |
REF # | 11045D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,HOOK,RH | |
REF # | 11045E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,CANISTER | |
REF # | 11045F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
BRACKET,RETURN PUMP | |
REF # | 11045G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
BRACKET,IGNITION COIL | |
REF # | 11045H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,HEAD GUSSET | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOOK,BUNGEE CORD,LH | |
REF # | 27012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOOK,BUNGEE CORD,RH | |
REF # | 27012A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,MUFFLER,LH | |
REF # | 35011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,MEFFLER,RH | |
REF # | 35011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,FR,LH | |
REF # | 35011B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,FR,RH | |
REF # | 35011C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP,TAIL | |
REF # | 46075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X22 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X20 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X20 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,6X20,BLACK | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X10 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP,HARNESS COUPLER | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,CABLE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,IGNITION COIL | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | CA |
REMARKS |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | US |
REMARKS |
BOLT-FLANGED,6X14,BLACK | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X30 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WP-SMALL | |
REF # | 184 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
