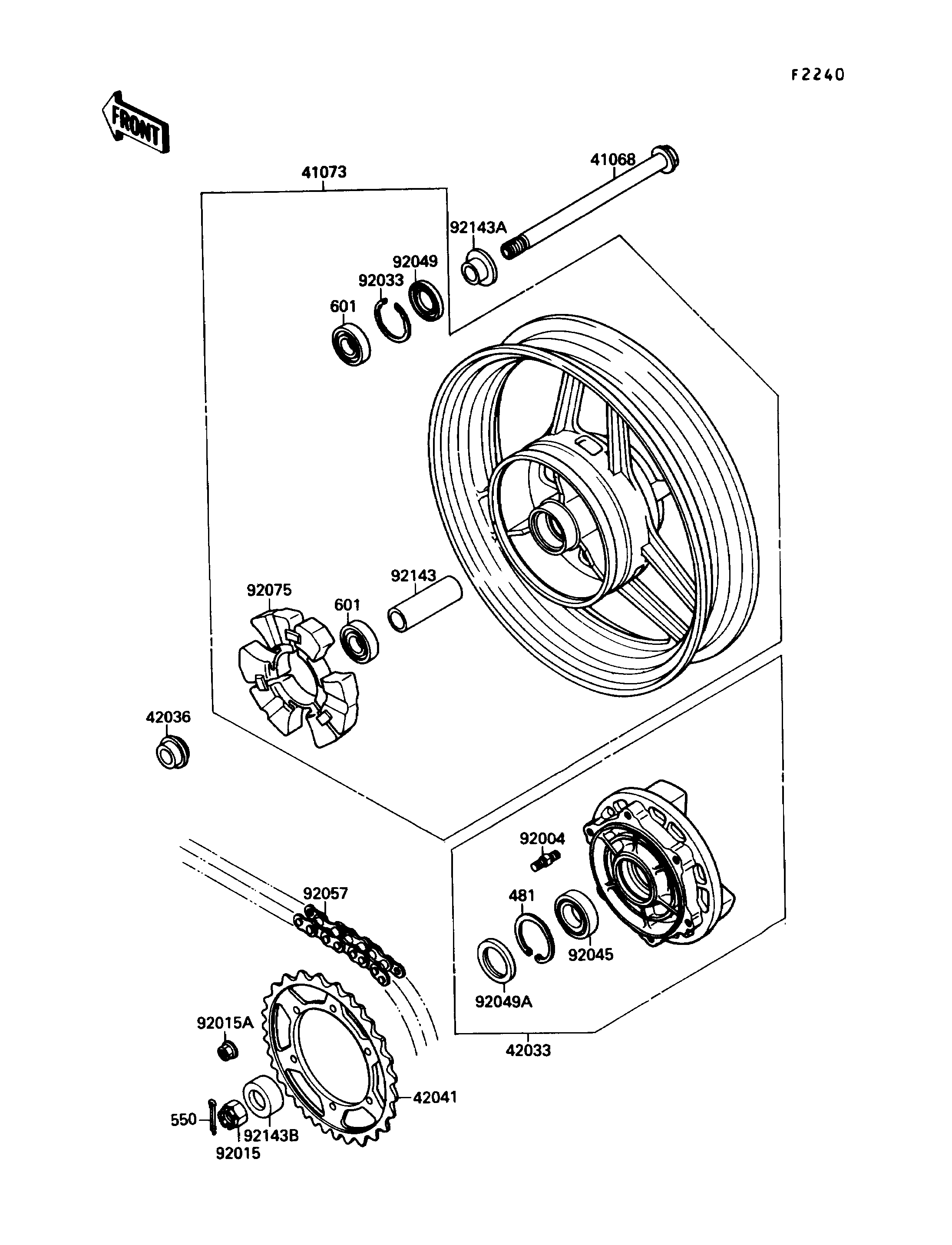

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
AXLE,RR | 41068 | 41068-1234 | 1 | ||
WHEEL-ASSY,RR,SILVER NO.1 | 41073 | 41073-1345-T7 | 1 | ||
COUPLING-ASSY,RR HUB | 42033 | 42033-1122 | 1 | ||
SLEEVE,L=29 | 42036 | 42036-1197 | 1 | ||
SPROCKET-HUB,47T | 42041 | 42041-1278 | 1 | ||
STUD,10X19.5 | 92004 | 92004-1151 | 6 | ||
NUT,CASTLE,18MM | 92015 | 42045-018 | 1 | ||
NUT,FLANGED,10MM | 92015A | 92015-1502 | 6 | ||
RING-SNAP,47MM | 92033 | 92033-1042 | 1 | ||
BEARING-BALL,#7006 | 92045 | 92045-1196 | 1 | ||
SEAL-OIL,BJN28475 | 92049 | 92049-1056 | 1 | ||
SEAL-OIL,PJN40556 | 92049A | 92049-1263 | 1 | ||
CHAIN,DRIVE,EK50MV-OX110L | 92057 | 92057-1221 | 1 | ||
DAMPER,REAR HUB SHOCK | 92075 | 92075-1908 | 1 | ||
COLLAR,20.2X29X116 | 92143 | 92143-1034 | 1 | ||
COLLAR,L=23 | 92143A | 92143-1042 | 1 | ||
COLLAR,REAR AXLE,L=14 | 92143B | 92143-1094 | 1 | ||
CIRCLIP | 481 | 481J5500 | 1 | ||
PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
BEARING-BALL,6204UUC3 | 601 | 601B6204UU | 2 |
