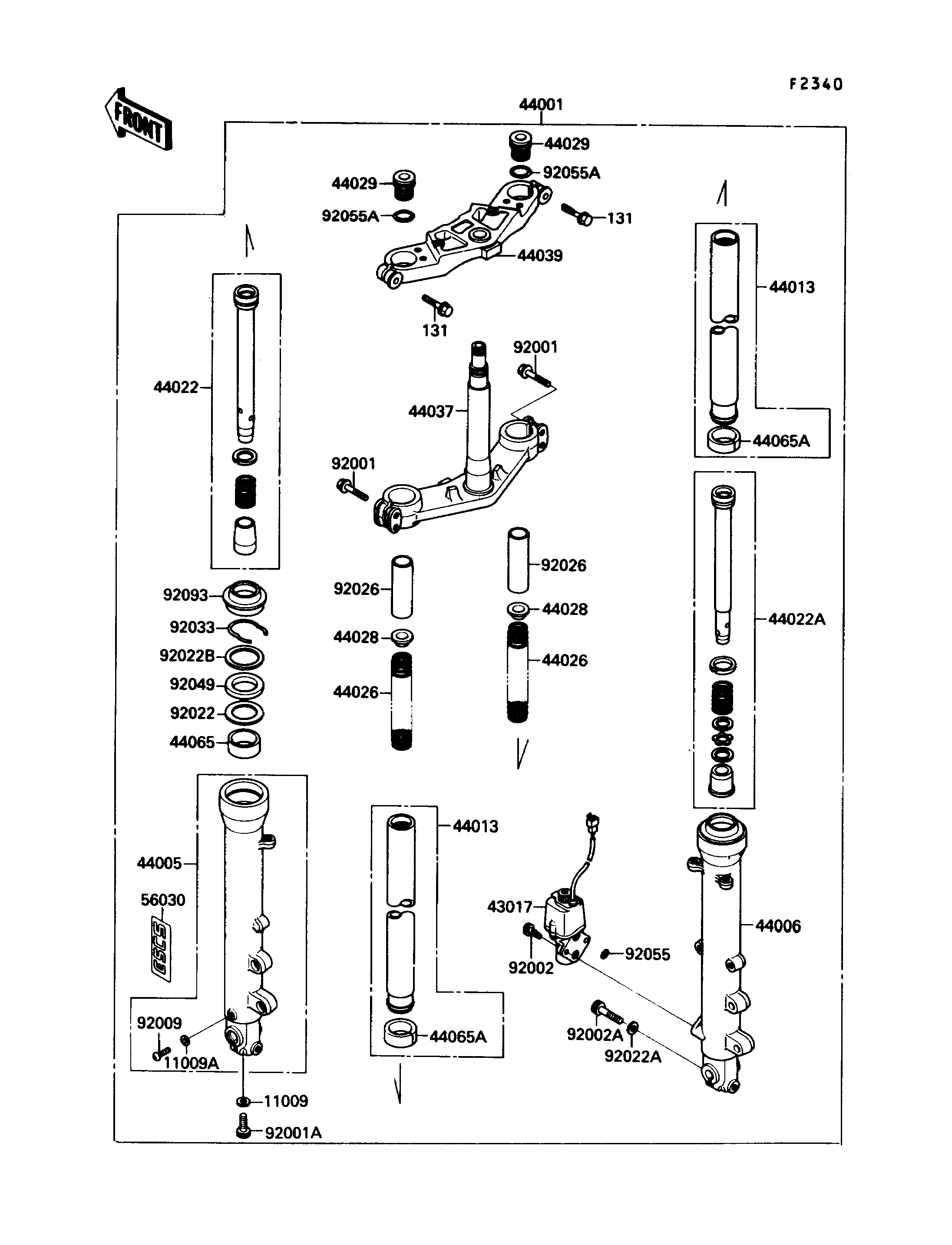

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FORK CYLINDER BOLT | 11009 | 11009-1127 | 2 | ||
GASKET,FORK DRAIN PLUG | 11009A | 44045-002 | 2 | ||
VALVE-COMP-BRAKE | 43017 | 43017-1066 | 1 | ||
FORK-FRONT | 44001 | 44001-1639 | 1 | ||
PIPE-LEFT FORK OUTER | 44005 | 44005-1256 | 1 | ||
PIPE-RIGHT FORK OUTER | 44006 | 44006-1253 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-1258 | 2 | ||
CYLINDER-FORK,LH | 44022 | 44022-1202 | 1 | ||
CYLINDER-FORK,RH | 44022A | 44022-1203 | 1 | ||
SPRING-FRONT FORK | 44026 | 44026-1358 | 2 | ||
GUIDE-FORK SPRING | 44028 | 44028-1003 | 2 | ||
SEAT-FORK SPRING | 44029 | 44029-1126 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1206 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1144 | 1 | ||
BUSHING-FRONT FORK | 44065 | 44065-1012 | 2 | ||
BUSHING-FRONT FORK,INNER PIPE | 44065A | 44065-1057 | 2 | ||
LABEL,ESCS MARK | 56030 | 56030-1095 | 1 | ||
BOLT,FLANGED,8X40 | 92001 | 92001-1188 | 2 | ||
BOLT,FORK CYLINDER | 92001A | 92001-1309 | 2 | ||
BOLT,SOCKET,6X16 | 92002 | 92002-1166 | 2 | ||
BOLT,SOCKET,8X38 | 92002A | 92002-1316 | 2 | ||
SCREW,4X8 | 92009 | 92009-1324 | 2 | ||
WASHER,FORK OUTER PIPE | 92022 | 92022-1262 | 2 | ||
WASHER | 92022A | 92022-1598 | 2 | ||
WASHER,FORK OUTER PIPE,UPP | 92022B | 92022-1599 | 2 | ||
SPACER,FORK,L=100 | 92026 | 92026-1288 | 2 | ||
RING-SNAP,FORK | 92033 | 92033-1047 | 2 | ||
SEAL-OIL,FORK | 92049 | 92049-1178 | 2 | ||
RING-O | 92055 | 92055-1379 | 2 | ||
RING-O,FORK TOP | 92055A | 92055-1380 | 2 | ||
SEAL,FORK | 92093 | 92093-1162 | 2 | ||
BOLT-FLANGED,8X45 | 131 | 131G0845 | 4 |
GASKET,FORK CYLINDER BOLT | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,FORK DRAIN PLUG | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
VALVE-COMP-BRAKE | |
REF # | 43017 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FORK-FRONT | |
REF # | 44001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-LEFT FORK OUTER | |
REF # | 44005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-RIGHT FORK OUTER | |
REF # | 44006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-FORK INNER | |
REF # | 44013 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CYLINDER-FORK,LH | |
REF # | 44022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-FORK,RH | |
REF # | 44022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING-FRONT FORK | |
REF # | 44026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-FORK SPRING | |
REF # | 44028 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAT-FORK SPRING | |
REF # | 44029 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-FORK UNDER | |
REF # | 44037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-FORK UPPER | |
REF # | 44039 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING-FRONT FORK | |
REF # | 44065 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING-FRONT FORK,INNER PIPE | |
REF # | 44065A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LABEL,ESCS MARK | |
REF # | 56030 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X40 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FORK CYLINDER | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X16 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X38 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,4X8 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,FORK OUTER PIPE | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,FORK OUTER PIPE,UPP | |
REF # | 92022B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPACER,FORK,L=100 | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,FORK | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,FORK | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,FORK TOP | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,FORK | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X45 | |
REF # | 131 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
