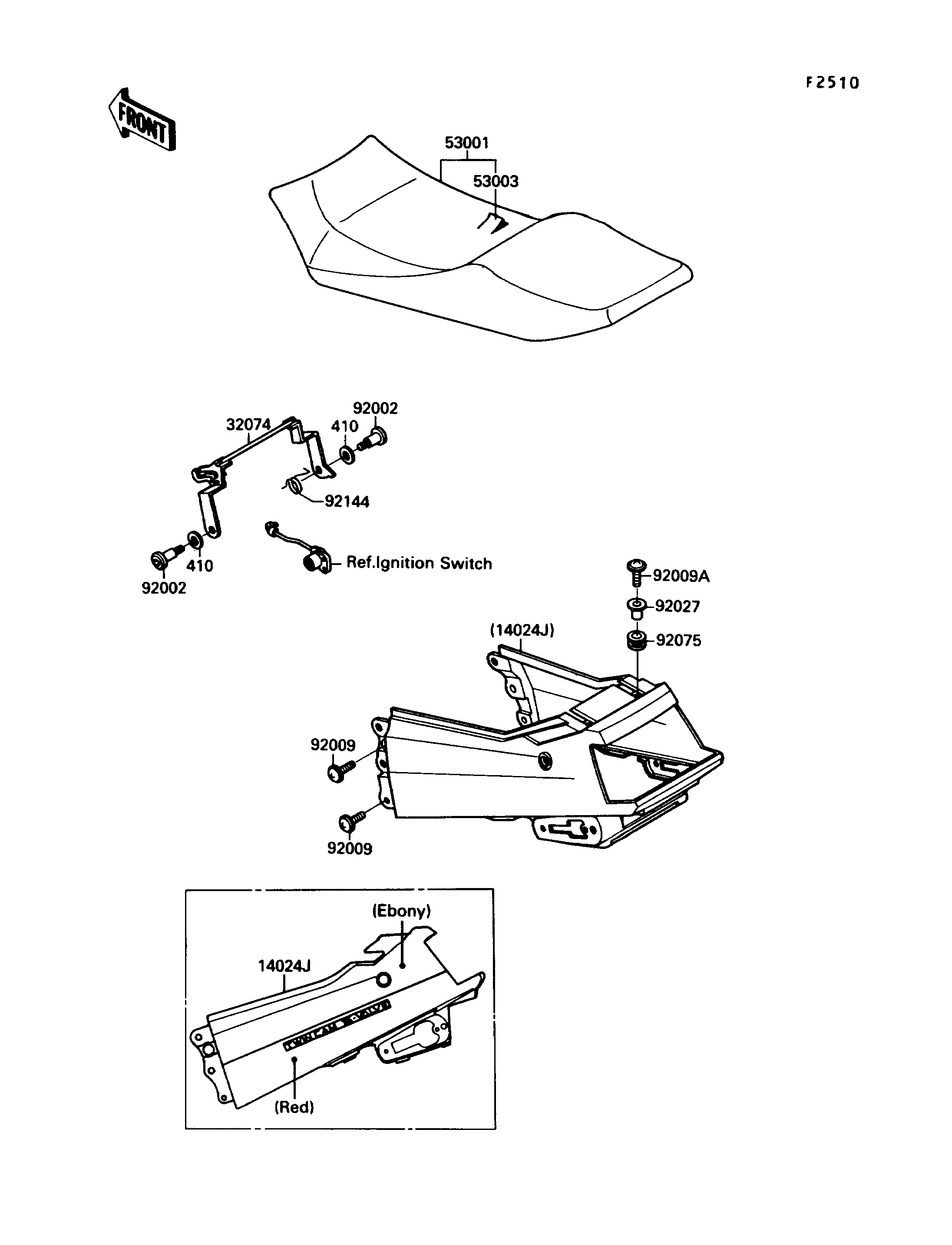

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SEAT,EBONY/RED 14024J 14024-5112-J3 1
BRACKET-LOCK,SEAT 32074 32074-1130 1
SEAT-ASSY,DUAL,BLACK 53001 53001-1494-MA 1
LEATHER,SEAT,BLACK 53003 53003-1178-MA 1
BOLT,SOCKET,6MM 92002 92002-1616 2
SCREW,6X18,BLACK 92009 92009-1181 4
SCREW,6X20,BLACK 92009A 92009-1251 2
COLLAR,L=14.1 92027 92027-1920 2
DAMPER 92075 92075-1913 2
SPRING,SEAT LOCK 92144 92144-1086 1
WASHER-PLAIN-SMALL,10MM,BLACK 410 410F1000 2
