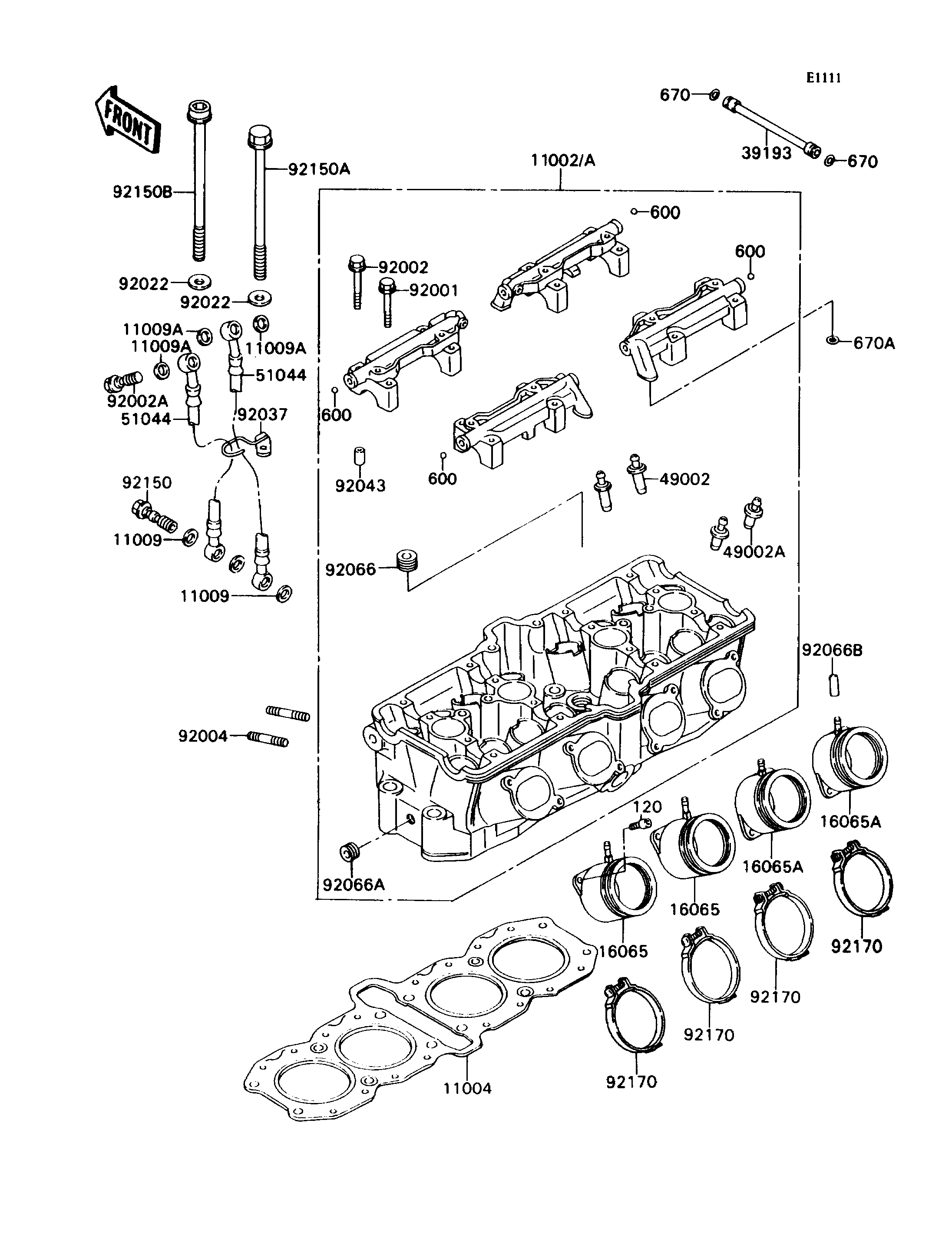

1989 Ninja® ZX™-7 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-ASSY-CYLINDER 11002 11002-1254 1 CAUS
HEAD-ASSY-CYLINDER 11002A 11002-1255 1 CN
GASKET-HEAD 11004 11004-1195 1
GASKET,10X14.5X1.5 11009 11009-1105 3
GASKET,OIL PIPE,8.2X14X1.0 11009A 11009-1344 4
HOLDER-CARBURETOR,#1&#2 16065 16065-1187 2
HOLDER-CARBURETOR,#3&#4 16065A 16065-1188 2
PIPE-OIL 39193 39193-1002 2
GUIDE-VALVE 49002 49002-1060 AR
GUIDE-VALVE 49002A 49002-1097 AR
TUBE-ASSY,OIL PAN-HEAD 51044 51044-1101 2
BOLT,FLANGED,6X38 92001 92001-1105 8
BOLT,6X46 92002 92001-1872 8
BOLT,BANJO,8X24 92002A 92002-1858 2
STUD,8X30,BLACK 92004 92004-1101 8
WASHER,10.5X20X1.6 92022 92022-1591 12
CLAMP 92037 92037-1802 1
PIN,6.2X8X14 92043 92043-1263 8
PLUG 92066 92066-1253 4
PLUG 92066A 92066-1262 2
PLUG,12X25 92066B 92068-006 1 CA
PLUG,12X25 92066B 92068-006 4 CN
PLUG,12X25 92066B 92068-006 2 US
BOLT,BANJO,10X37 92150 92150-1122 1
BOLT,10X148 92150A 92150-1239 4
BOLT,SOCKET,10X158 92150B 92150-1240 8
CLAMP 92170 92170-1066 4
BOLT-SOCKET,6X18 120 120P0618 8
BALL-STEEL,1/4" 600 600A0800 8
O RING 670 670D1505 4
O RING,8MM 670A 670D1508 2
