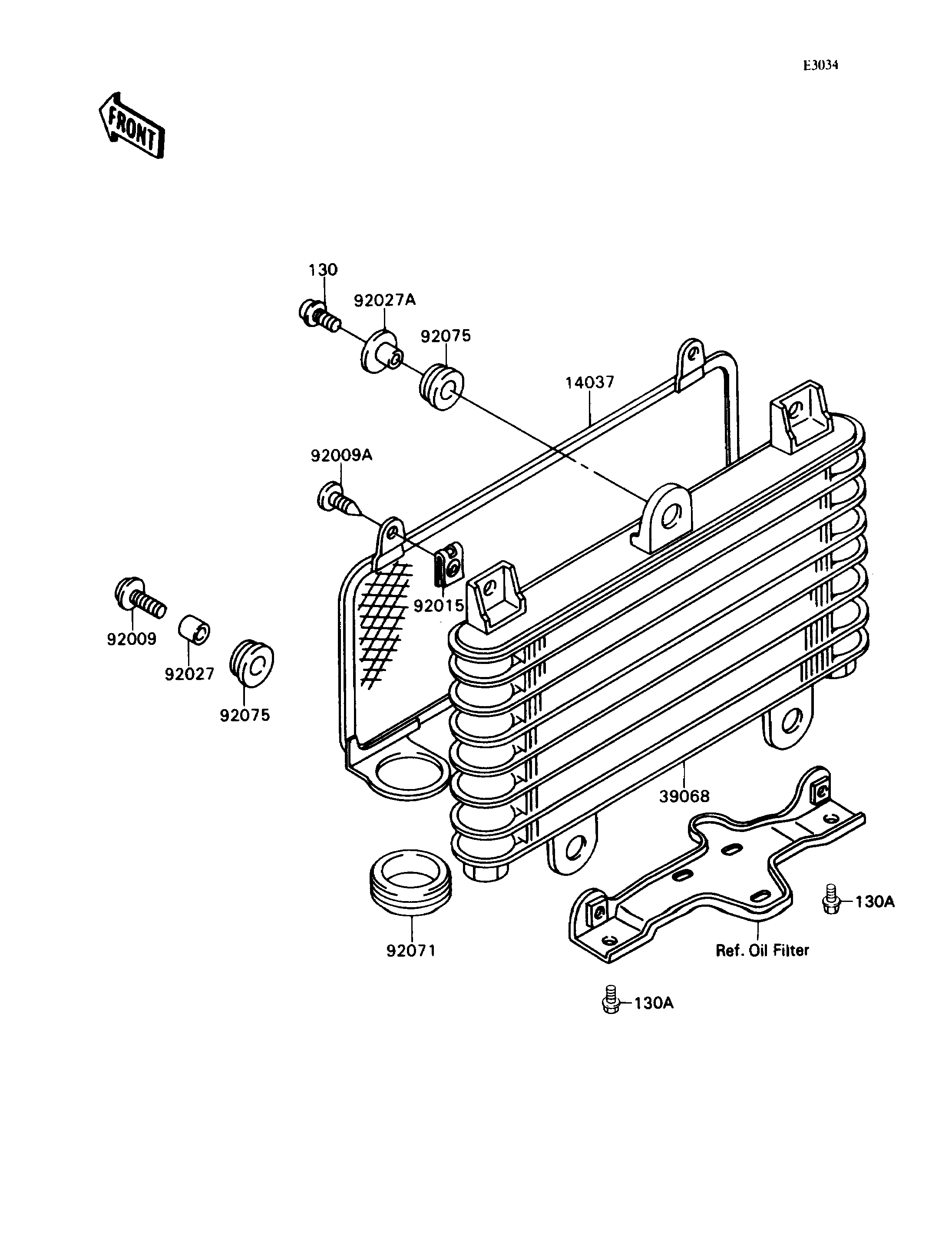

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREEN 14037 14037-1122 1
COOLER-ASSY-OIL 39068 39068-1051 1
SCREW,6X18,BLACK 92009 92009-1181 2
SCREW,TAPPING,6MM 92009A 92009-1261 2
NUT,6MM 92015 92015-1758 2
COLLAR,6.8X10X10.5 92027 92027-120 2
COLLAR,FLANGED,L=12.1,BLACK 92027A 92027-1651 1
GROMMET,WIRING HARNESS 92071 92071-1021 2
DAMPER 92075 92075-277 3
BOLT-FLANGED 130 130J0610 2
BOLT-FLANGED 130A 130J0620 1
