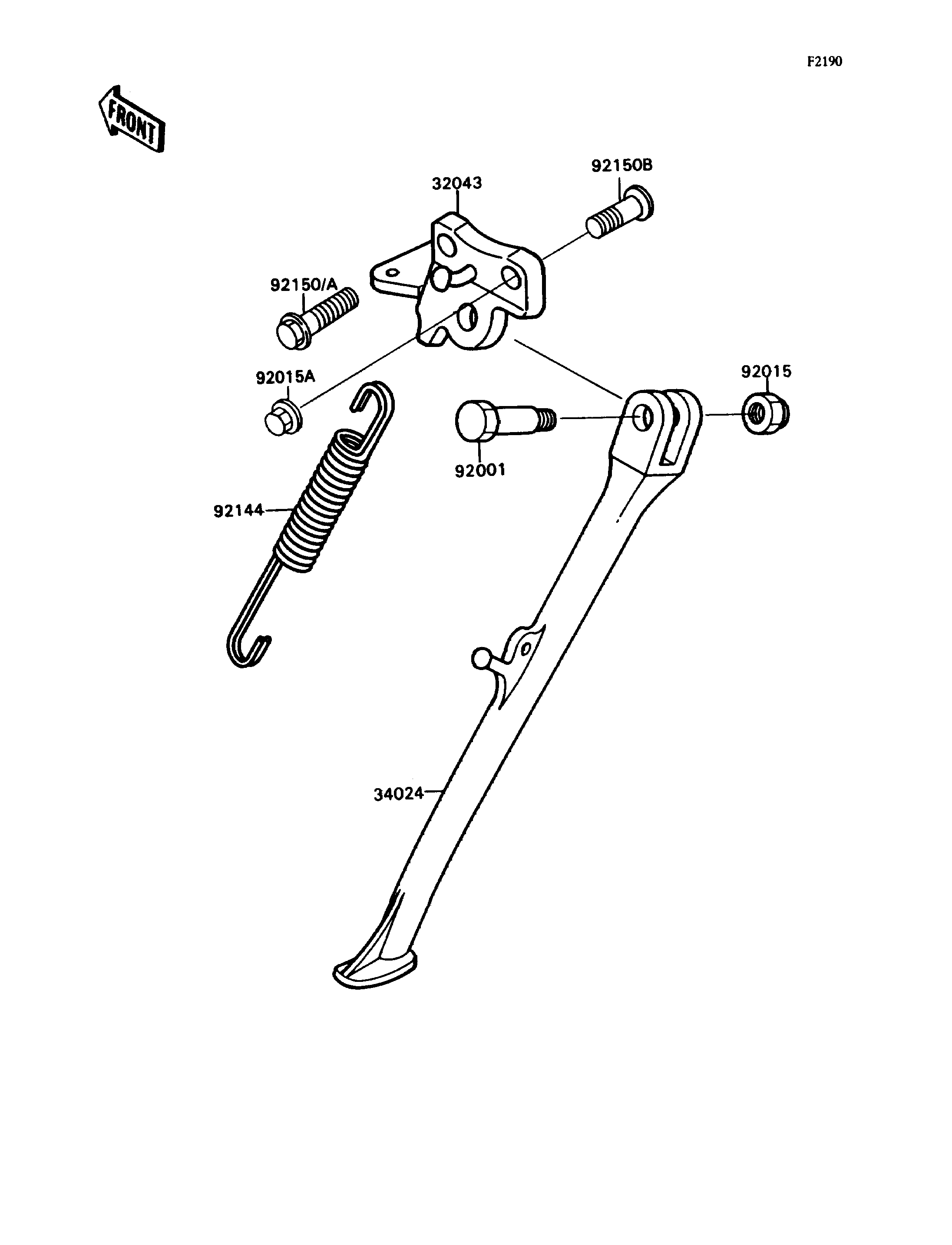

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE 32043 32043-1342 1
STAND-SIDE 34024 34024-1214 1
BOLT,SIDE STAND 92001 92001-1788 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
NUT,FLANGED,10MM 92015A 92015-1502 1 (JKAZXDH1 KA006123 - )
SPRING,SIDE STAND 92144 92144-1127 1
BOLT,FLANGED,10X23 92150 92150-1338 2 ( - JKAZXDH1 KA006122)
BOLT,FLANGED,10X35 92150A 92150-1353 1 (JKAZXDH1 KA006123 - )
BOLT,SOCKET,10X35 92150B 92150-1354 1 (JKAZXDH1 KA006123 - )
