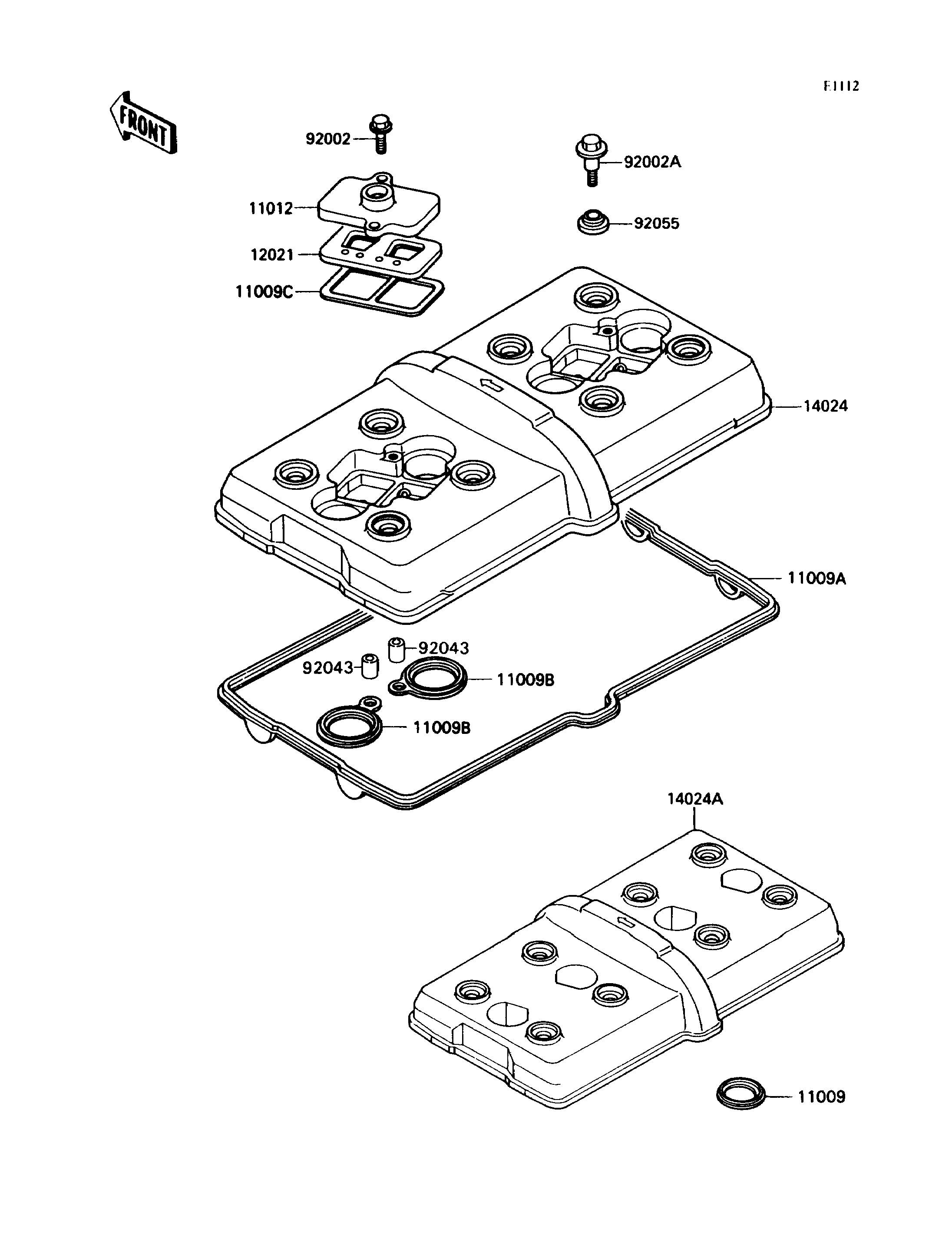

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,SPARK PLUG 11009 11009-1610 4 CN
GASKET,HEAD COVER 11009A 11009-1775 1
GASKET,SPARK PLUG 11009B 11009-1776 4 CAUS
GASKET,REED VALVE 11009C 11009-1905 2 CAUS
CAP,REED VALVE 11012 11012-1532 2 CAUS
VALVE-ASSY-REED 12021 12021-1053 2 CAUS
COVER,HEAD 14024 14024-1743 1 CAUS
COVER,HEAD 14024A 14024-1771 1 CN
BOLT,6X22 92002 92002-1068 4 CAUS
BOLT,HEAD COVER 92002A 92002-1504 8
PIN,8.2X10X14 92043 92043-1264 4 CAUS
RING-O,HEAD COVER BOLT 92055 92055-1352 8
