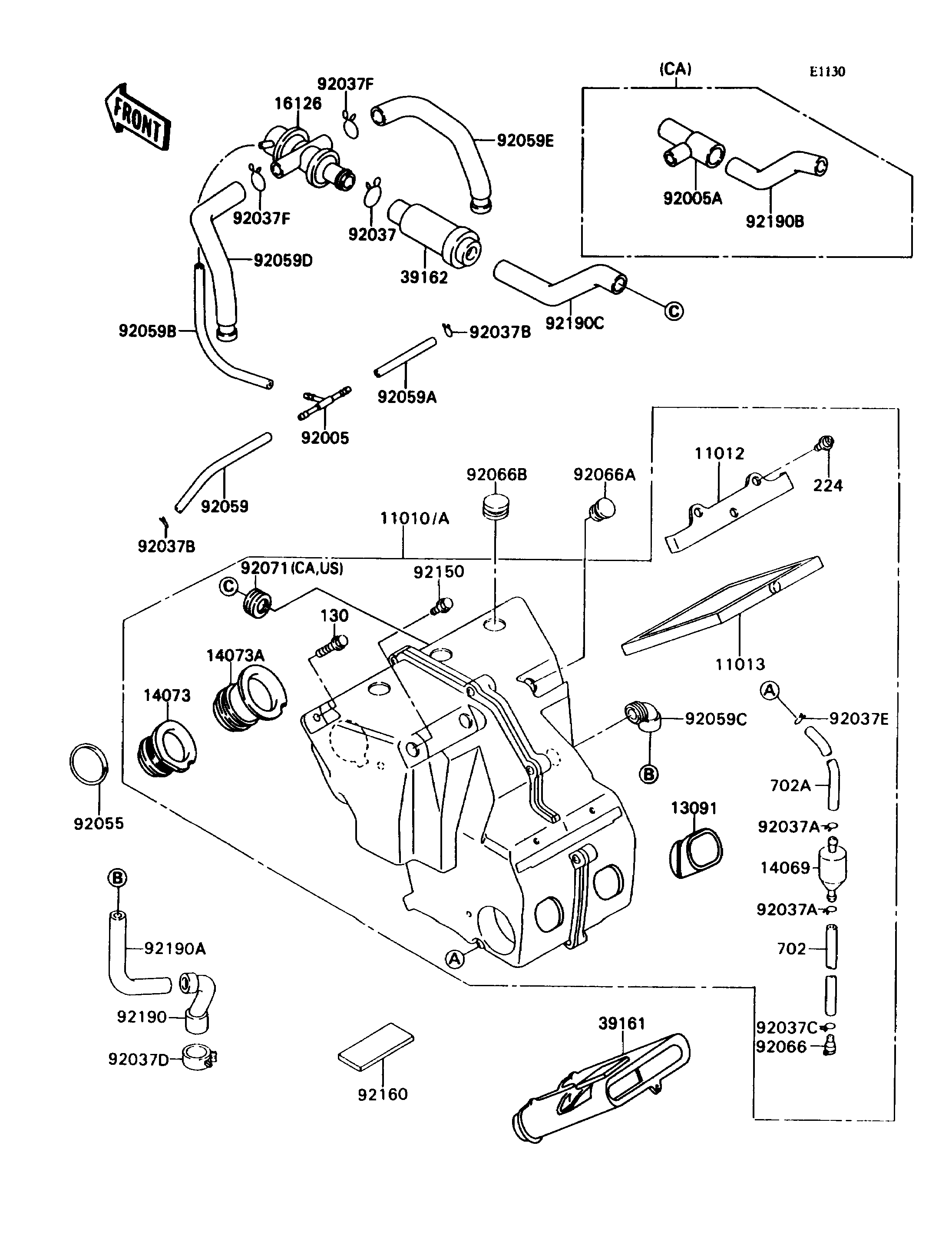

1990 Ninja® ZX™-7 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-1399 1 CAUS
FILTER-ASSY-AIR 11010A 11010-1400 1 CN
CAP,AIR FILTER 11012 11012-1687 1
ELEMENT-AIR FILTER 11013 11013-1180 1
HOLDER,AIR INTAKE DUCT 13091 13091-1674 2
BREATHER 14069 14069-1051 1
DUCT,#1&#4 14073 14073-1432 2
DUCT,#2&#3 14073A 14073-1433 2
VALVE,AIR SWITCH 16126 16126-1104 1 CAUS
SILENCER-ASSY-INTAKE 39161 39161-1062 1
SILENCER-INTAKE 39162 39162-1003 1 CAUS
FITTING,TUBE,T-TYPE 92005 92005-1017 1 CAUS
FITTING,SILENCER 92005A 92005-1207 1 CA
CLAMP,TUBE 92037 92037-1076 1 CAUS
CLAMP,TUBE 92037A 92037-147 2
CLAMP 92037B 92037-1610 2 CAUS
CLAMP 92037C 92037-1712 1
CLAMP 92037D 92037-1860 1
CLAMP,TUBE 92037E 92037-1972 1
CLAMP,TUBE 92037F 92037-213 2 CAUS
RING-O,67.7X3.1 92055 92055-1434 4
TUBE,4X9X190 92059 92059-1032 1 CAUS
TUBE,4X9X100 92059A 92059-1058 1 CAUS
TUBE,4X9X230 92059B 92059-1068 1 CAUS
TUBE,BREATHER 92059C 92059-1391 1
TUBE,AIR SWITCH-HEAD,LH 92059D 92059-1717 1 CAUS
TUBE,AIR SWITCH-HEAD,RH 92059E 92059-1765 1 CAUS
PLUG,DRAIN 92066 92066-1211 1
PLUG 92066A 92066-1306 3
PLUG 92066B 92066-1324 3
GROMMET,AIR FILTER 92071 92071-1028 1 CAUS
BOLT,5X16 92150 92150-1363 6
DAMPER,BATTERY 92160 92160-1094 1
TUBE,BLOWBY 92190 92059-1988 1
TUBE,BLOWBY 92190A 92190-1010 1
TUBE,AIR FILTER 92190B 92190-1119 1 CA
TUBE,AIR SWITCH VALVE 92190C 92190-1121 1 US
BOLT-FLANGED 130 130D0535 2
SCREW-PAN-WP-CROS 224 224B0616 2
TUBE-RUBBER 702 702A07150 1
TUBE-RUBBER 702A 702A07330 1
