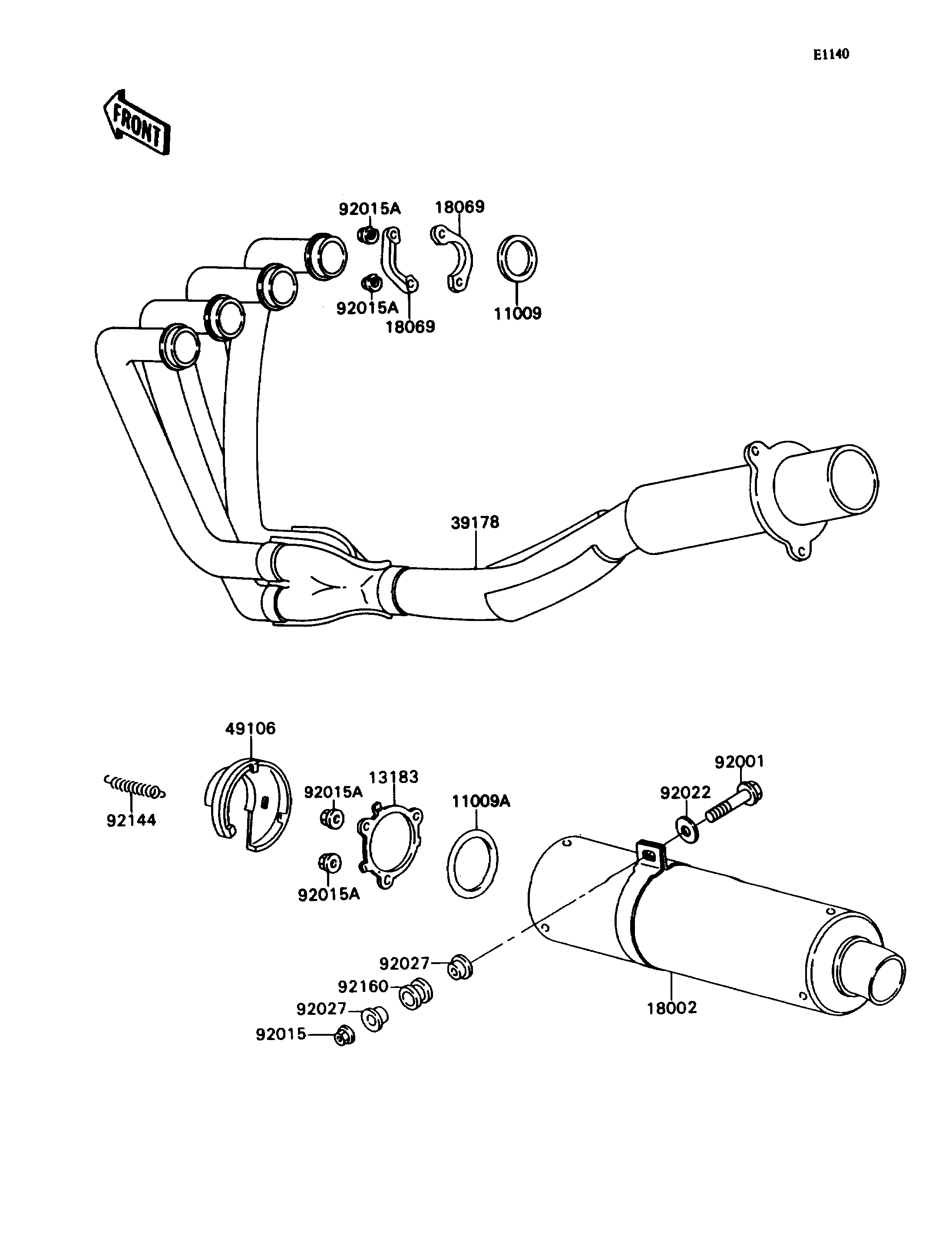

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE HOLDER 11009 11009-1906 4
GASKET,MUFFLER CONNECTING 11009A 11009-1907 1
PLATE 13183 13183-1473 1
BODY-COMP-MUFFLER 18002 18002-1976 1
HOLDER-EXHAUST PIPE 18069 18069-1072 8
MANIFOLD-COMP-EXHAUST 39178 39178-1159 1
COVER-MUFFLER 49106 49106-1113 1
BOLT,FLANGED,8X35 92001 92001-1910 1
NUT,8MM 92015 92015-1143 1
NUT,LOCK,8MM 92015A 92015-1380 11
WASHER,8.5X19X1.2 92022 92022-3730 1
COLLAR,FLANGED,8.8X10.6 92027 92027-1653 2
SPRING,MUFFLER CONNECTING,IN 92144 92144-1386 2
DAMPER 92160 92160-1116 1
