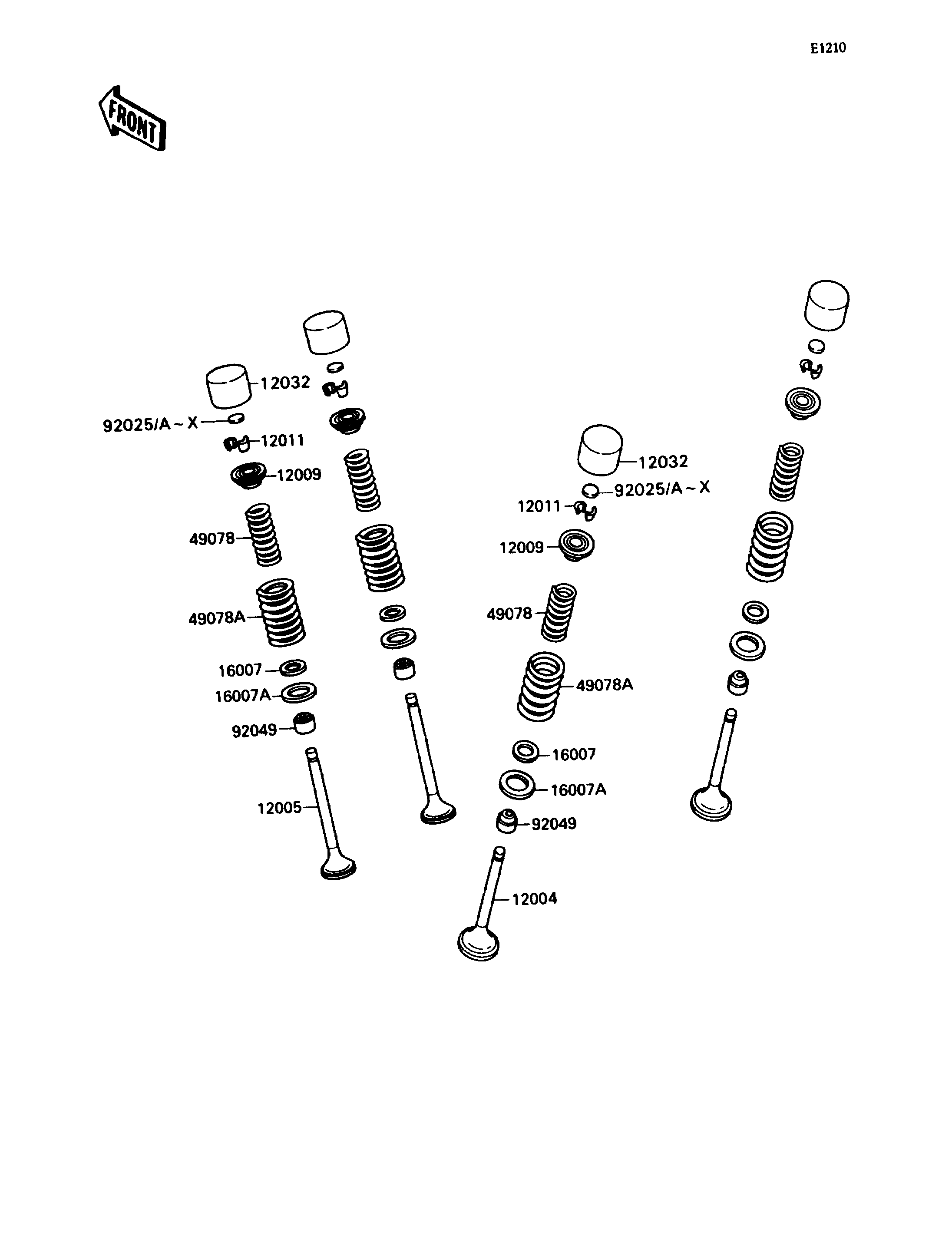

1990 Ninja® ZX™-7 - Valve(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-1098 8
VALVE-EXHAUST 12005 12005-1154 8
RETAINER-VALVE SPRING 12009 12009-1062 16
COLLET 12011 12011-1051 32
TAPPET,INTAKE 12032 12032-1052 16
SEAT-SPRING,12.1X16.2X0.5 16007 16007-1143 16
SEAT-SPRING,17.5X23.8X0.5 16007A 16007-1144 16
SPRING-ENGINE VALVE,INNER 49078 49078-1093 16
SPRING-ENGINE VALVE,OUTER 49078A 49078-1094 16
SHIM,T=2.00 92025 92025-1870 AR
SHIM,T=2.05 92025A 92025-1871 AR
SHIM,T=2.10 92025B 92025-1872 AR
SHIM,T=2.15 92025C 92025-1873 AR
SHIM,T=2.20 92025D 92025-1874 AR
SHIM,T=2.25 92025E 92025-1875 AR
SHIM,T=2.30 92025F 92025-1876 AR
SHIM,T=2.35 92025G 92025-1877 AR
SHIM,T=2.40 92025H 92025-1878 AR
SHIM,T=2.45 92025I 92025-1879 AR
SHIM,T=2.50 92025J 92025-1880 AR
SHIM,T=2.55 92025K 92025-1881 AR
SHIM,T=2.60 92025L 92025-1882 AR
SHIM,T=2.65 92025M 92025-1883 AR
SHIM,T=2.70 92025N 92025-1884 AR
SHIM,T=2.75 92025O 92025-1885 AR
SHIM,T=2.80 92025P 92025-1886 AR
SHIM,T=2.85 92025Q 92025-1887 AR
SHIM,T=2.90 92025R 92025-1888 AR
SHIM,T=2.95 92025S 92025-1889 AR
SHIM,T=3.00 92025T 92025-1890 AR
SHIM,T=2.425 92025U 92025-1982 AR
SHIM,T=2.475 92025V 92025-1983 AR
SHIM,T=2.525 92025W 92025-1984 AR
SHIM,T=2.575 92025X 92025-1985 AR
SEAL-OIL,VSB58.558 92049 92049-1218 16
