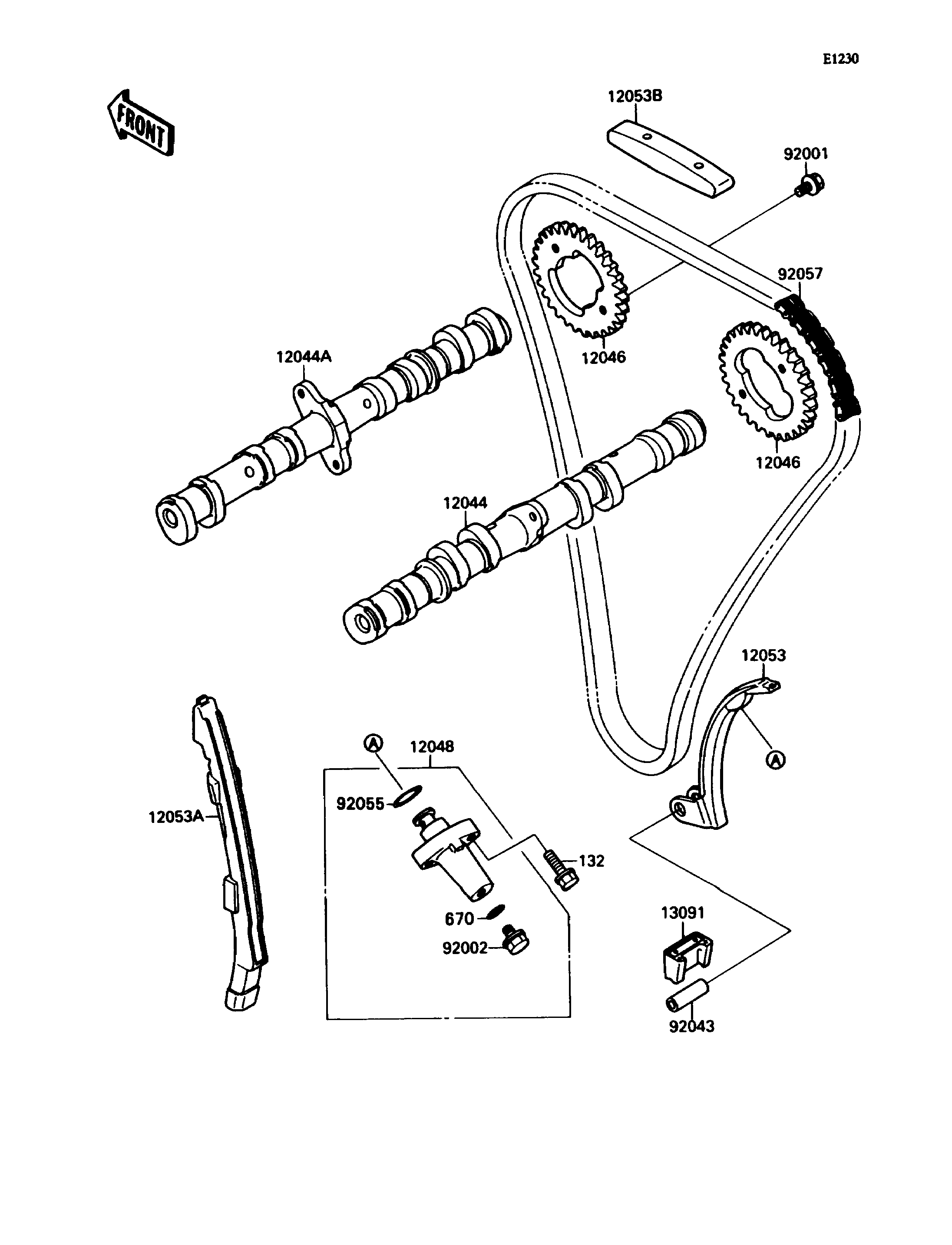

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAMSHAFT-VALVE,INTAKE 12044 12044-1254 1
CAMSHAFT-VALVE,EXHAUST 12044A 12044-1255 1
SPROCKET,CAMSHAFT,44T 12046 12046-1091 2
TENSIONER-ASSY 12048 12048-1077 1
GUIDE-CHAIN,RR 12053 12053-1200 1
GUIDE-CHAIN,FR 12053A 12053-1201 1
GUIDE-CHAIN,UPP 12053B 12053-1202 1
HOLDER 13091 13091-1447 1
BOLT,FLANGED,6X11 92001 92003-208 4
BOLT,TENSIONER 92002 92002-1627 1
PIN,7X10X31.5 92043 92043-1333 1
RING-O,TENSIONER 92055 92055-1249 1
CHAIN,CAM,82RH2015-138L 92057 92057-1220 1
BOLT-FLANGED-SMALL 132 132G0625 2
O RING 670 670D2010 1
