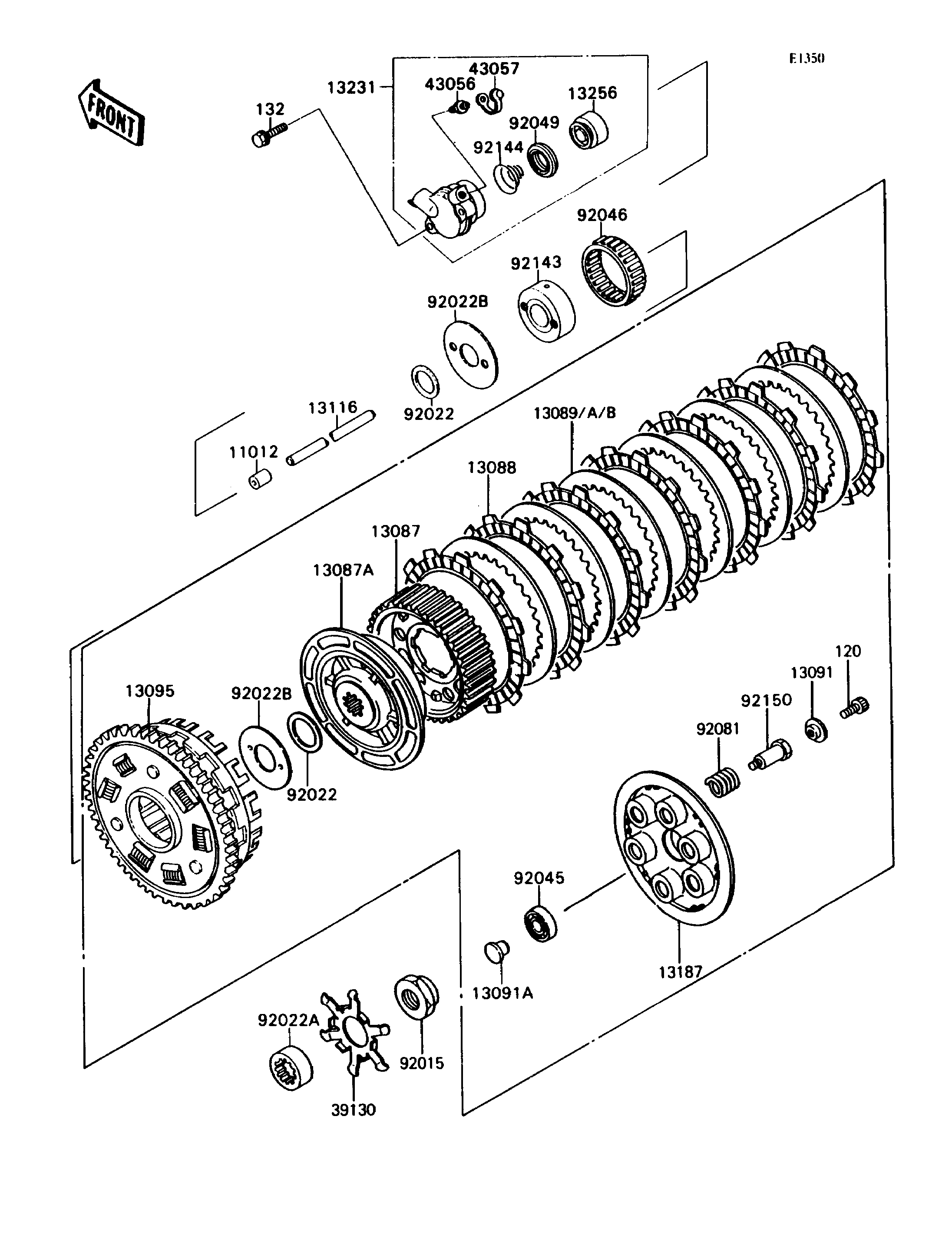

1990 Ninja® ZX™-7 - Clutch

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,PUSHROD 11012 11012-1569 1
HUB-CLUTCH 13087 13087-1080 1
HUB-CLUTCH 13087A 13087-1117 1
PLATE-FRICTION 13088 13088-040 7
PLATE-CLUTCH,T=2.0 13089 13089-026 AR
PLATE-CLUTCH,T=2.3 13089A 13089-1004 AR
PLATE-CLUTCH,T=2.6 13089B 13089-1067 AR
HOLDER,CLUTCH SPRING 13091 13091-1041 6
HOLDER,CLUTCH PUSH ROD 13091A 13091-1085 1
HOUSING-COMP-CLUTCH 13095 13095-1200 1
ROD-PUSH 13116 13116-1137 1
PLATE-CLUTCH OPERATING 13187 13187-1067 1
RELEASE-ASSY-CLUTCH 13231 13231-1065 1
PISTON 13256 13256-1052 1
SPRING-LEAF 39130 39130-1063 1
BREATHER-BRAKE 43056 43056-1052 1
CAP-BREATHER 43057 43057-1001 1
NUT 92015 92015-1538 1
WASHER 92022 92022-1719 2
WASHER,TOOTHED,21.7X36X15.5 92022A 92022-1782 1
WASHER,CLUTCH THRUST 92022B 92022-1846 2
BEARING-BALL,6001C3ML01 92045 92045-1235 1
BEARING-NEEDLE,K55X63X20 92046 92046-1159 1
SEAL-OIL,PISTON 92049 92049-1165 1
SPRING,CLUTCH 92081 92081-1114 6
COLLAR,INPUTSHAFT 92143 92143-1017 1
SPRING,CLUTCH RELEASE 92144 92144-1084 1
BOLT,CLUTCH 92150 92150-1310 6
BOLT-SOCKET,6X16 120 120Q0616 6
BOLT-FLANGED-SMALL 132 132J0625 2
