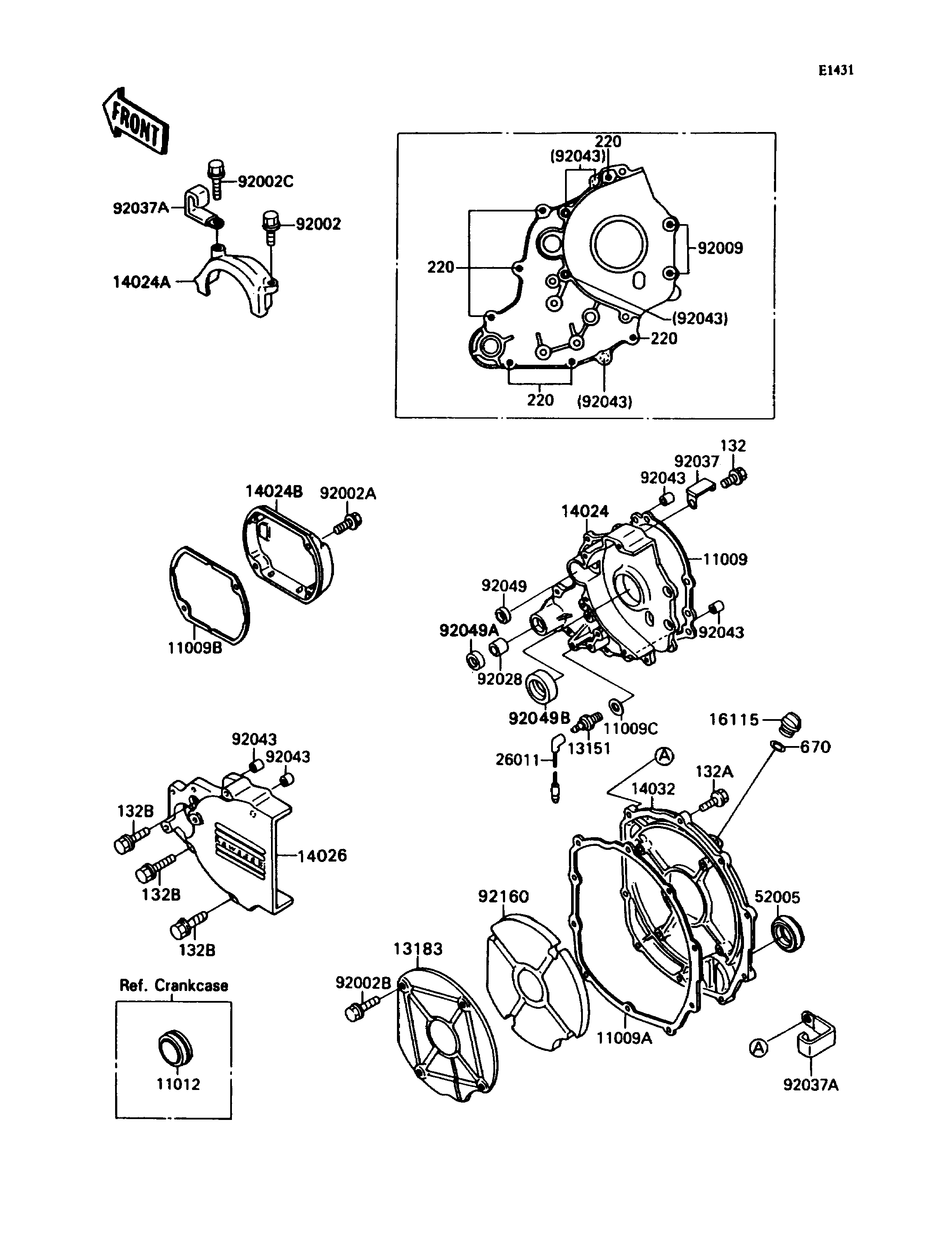

1990 Ninja® ZX™-7 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TRANSMISSION COVER 11009 11009-1901 1
GASKET,CLUTCH 11009A 11009-1902 1
GASKET,PULSING COIL COVER 11009B 11009-1904 1
GASKET,10.5X16X1,DRAIN PLUG 11009C 92065-058 1
CAP,LH,RCA378 11012 11012-1540 1
SWITCH-COMP,NEUTRAL 13151 13151-1007 1
PLATE 13183 13183-1366 1
COVER,TRANSMISSION 14024 14024-1305 1
COVER,GENERATOR,UPP 14024A 14024-1836 1
COVER,RH 14024B 14024-1926 1
COVER-CHAIN 14026 14026-1144 1
COVER-CLUTCH 14032 14032-1288 1
CAP-OIL FILLER 16115 16115-1053 1
WIRE-LEAD 26011 26011-1384 1
GAUGE,OIL LEVEL 52005 52005-1057 1
BOLT,6X20 92002 92002-1343 1
BOLT,6X25 92002A 92002-1344 2
BOLT,6X10 92002B 92002-1449 4
BOLT,6X30 92002C 92002-1534 1
SCREW,6X20 92009 92009-1447 2
BUSHING,13X15X20 92028 92028-1251 1
CLAMP,LEAD WIRE 92037 92037-1876 1
CLAMP,WIRING HARNESS 92037A 92037-1877 3
PIN,DOWEL,6.3X8X14 92043 92042-007 4
SEAL-OIL,SD-8187 92049 92049-1017 1
SEAL-OIL,TB13205 92049A 92049-1186 1
SEAL-OIL,TC32488 92049B 92049-1361 1
DAMPER,SOUND ARRESTER 92160 92160-1117 1
BOLT-FLANGED-SMALL,6X10 132 132J0610 2
BOLT-FLANGED-SMALL 132A 132J0620 10
BOLT-FLANGED-SMALL 132B 132J0645 4
SCREW-PAN-CROS,6X20,WHITE 220 220B0620 7
O RING,20MM 670 670B2020 1
