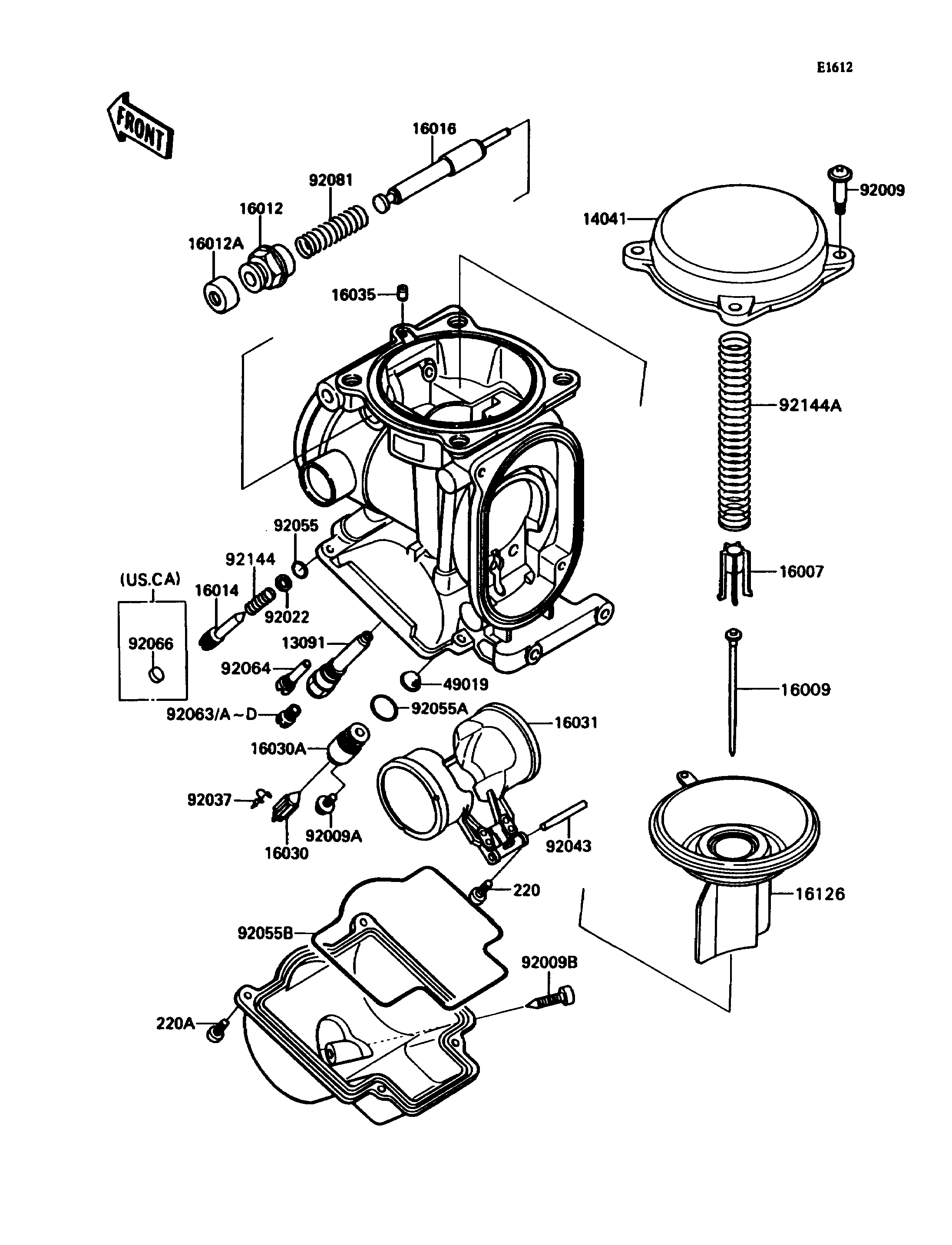

1990 Ninja® ZX™-7 - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1634 4
COVER-COMP,MIXING 14041 14041-1100 4
SEAT-SPRING,VALVE 16007 16007-1117 4
NEEDLE-JET,N76F 16009 16009-1601 4
CAP-STARTER PLUNGER 16012 16012-1051 4
CAP-STARTER PLUNGER 16012A 16012-1052 4
SCREW-PILOT AIR 16014 16014-1062 4
PLUNGER,STARTER 16016 16016-1061 4
VALVE-FLOAT 16030 16030-1007 4
SEAT-VALVE,FLOAT 16030A 16030-1068 4
FLOAT 16031 16031-1070 4
JET-AIR,LEAK 16035 16035-1055 4
VALVE,VACUUM 16126 16126-1237 4
FILTER-FUEL,STRAINER 49019 49019-3707 4
SCREW,4X4.4 92009 92009-1549 15
SCREW,4X8 92009A 92009-1550 4
SCREW,DRAIN,M6X0.75 92009B 92009-1551 4
WASHER,PLAIN 92022 92022-1003 4
CLAMP,FLOAT VALVE 92037 16044-007 4
PIN,FLOAT 92043 92043-1207 4
RING-O,PILOT ADJUST 92055 92055-1002 4
RING-O,VALVE SEAT 92055A 92055-1425 4
RING-O,FLOAT CHAMBER 92055B 92055-1426 4
JET-MAIN,2ND,#125 92063 92063-1069 4 (RACING USE ONLY)
JET-MAIN,2ND,#122 92063A 92063-1073 4 (RACING USE ONLY)
JET-MAIN,2ND,#128 92063B 92063-1074 4
JET-MAIN,#130 92063C 92063-1075 4 (RACING USE ONLY)
JET-MAIN,#132 92063D 92063-1076 4 (RACING USE ONLY)
JET-PILOT,#38 92064 92064-1050 4
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 4 CAUS
SPRING,STARTER PLUNGER 92081 92081-1761 4
SPRING,PILOT AIR SCREW 92144 92144-1349 4
SPRING,VACUUM VALVE 92144A 92144-1517 4
SCREW-PAN-CROS 220 220D0408 4
SCREW-PAN-CROS 220A 220D0410 16
