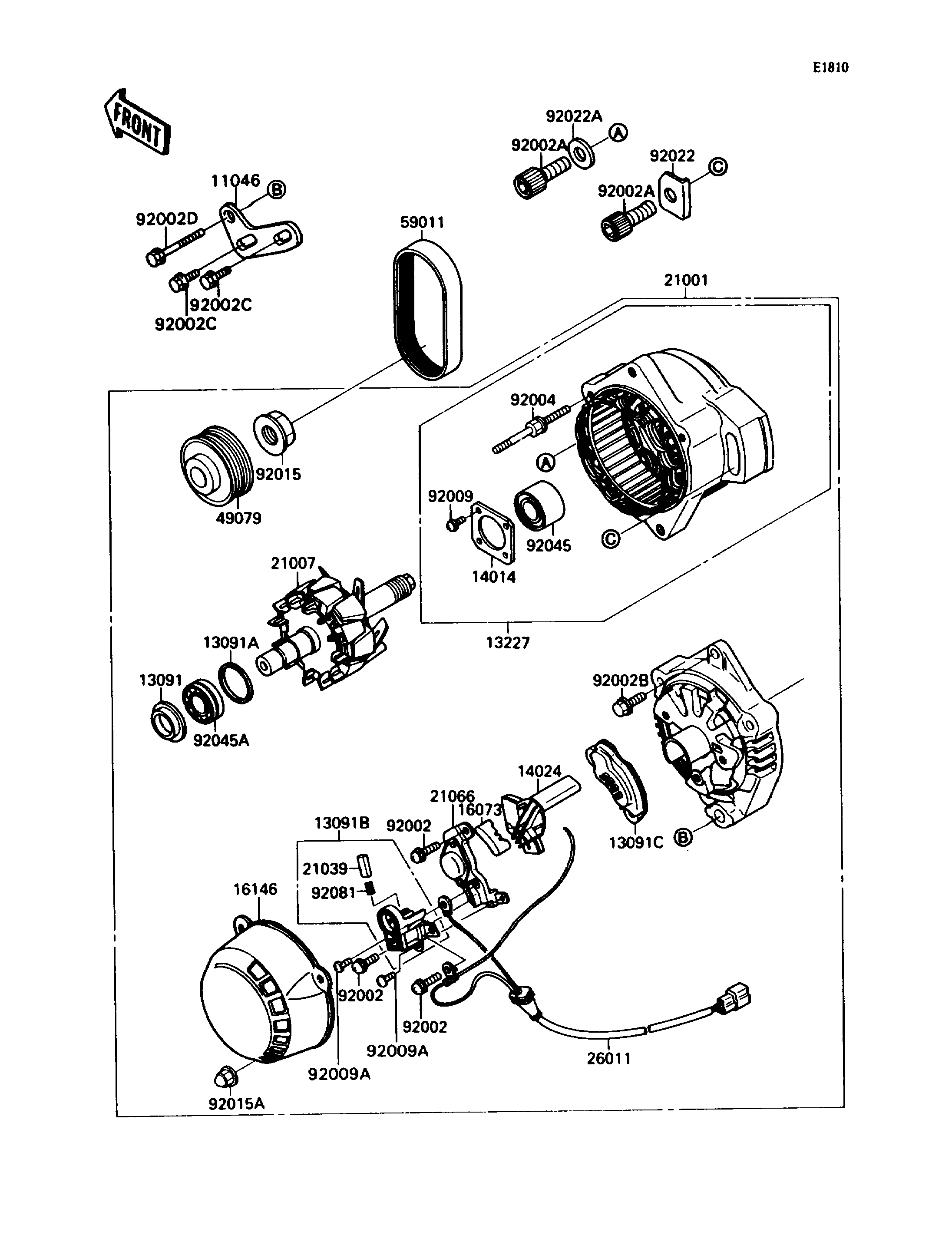

1990 Ninja® ZX™-7 - Generator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,GENERATOR 11046 11046-1717 1
HOLDER,COVER 13091 13091-1327 1
HOLDER,BEARING 13091A 13091-1328 1
HOLDER,BRUSH 13091B 13091-1465 1
RECTIFIER 13091C 13091-1466 1
HOUSING,GENERATOR 13227 13227-1078 1
PLATE-POSITION 14014 14014-1085 1
COVER,RECTIFIER 14024 14025-1942 1
INSULATOR 16073 16073-1062 1
COVER-ASSY,GENERATOR 16146 16146-1100 1
GENERATOR 21001 21001-1098 1
ROTOR,GENERATOR 21007 21007-1194 1
BRUSH,CARBON 21039 21039-1052 2
REGULATOR-VOLTAGE 21066 21066-1056 1
WIRE-LEAD,GENERATOR 26011 26011-1461 1
PULLEY-BELT 49079 49079-1058 1
BELT,GENERATOR 59011 59011-1054 1
SCREW,5X17.5 92002 92002-1380 3
BOLT,SOCKET,10X45 92002A 92002-1854 2
BOLT 92002B 92002-1919 1
BOLT,6X16 92002C 92002-1933 2
BOLT,8X50 92002D 92002-1934 1
STUD 92004 92004-1196 3
SCREW 92009 92009-1462 4
SCREW 92009A 92009-1585 2
NUT,PULLEY LOCK 92015 92015-1650 1
NUT 92015A 92015-1800 3
WASHER 92022 92022-1819 1
WASHER,10.5X19X3.2 92022A 92022-1820 1
BEARING-BALL 92045 92045-1195 1
BEARING-BALL,#6002NC 92045A 92045-1237 1
SPRING,BRUSH 92081 92081-1759 2
