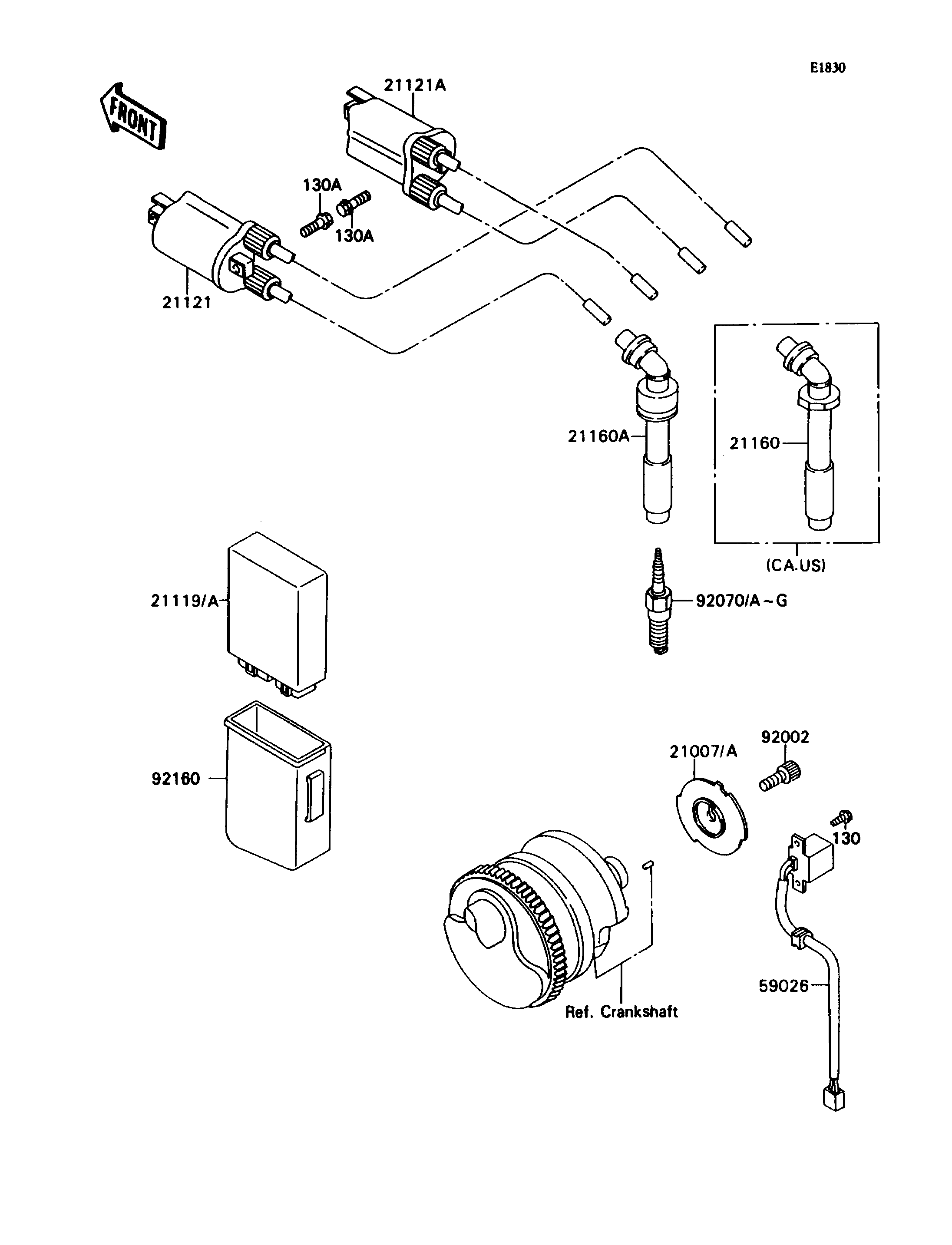

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ROTOR,PULSING COIL | 21007 | 21007-1190 | 1 | CNUS | |
| ROTOR | 21007A | 21007-1195 | 1 | CA | |
| IGNITER | 21119 | 21119-1262 | 1 | CNUS | |
| IGNITER | 21119A | 21119-1281 | 1 | CA | |
| COIL-IGNITION,#1 | 21121 | 21121-1172 | 1 | ||
| COIL-IGNITION,#2 | 21121A | 21121-1173 | 1 | ||
| CAP-ASSY-PLUG | 21160 | 21160-1068 | 4 | CAUS | |
| CAP-ASSY-PLUG | 21160A | 21160-1078 | 4 | CN | |
| COIL-PULSING | 59026 | 59026-1096 | 1 | ||
| BOLT,SOCKET,8X20 | 92002 | 92002-1178 | 1 | ||
| PLUG-SPARK,C9E(NGK) | 92070 | 92070-1142 | 4 | CAUS | |
| PLUG-SPARK,CR9E(NGK) | 92070A | 92070-1143 | 4 | CN | |
| PLUG-SPARK,U27ES-N(ND) | 92070B | 4 | CAUS | (LOCAL PROCUREMENT ITEM) | |
| PLUG-SPARK,U27ESR-N(ND) | 92070C | 4 | CN | ||
| PLUG-SPARK,C8E(NGK) | 92070D | 92070-1168 | 4 | CAUS | |
| PLUG-SPARK,CR8E(NGK) | 92070E | 92070-1169 | 4 | CN | |
| PLUG-SPARK,U24ES-N(ND) | 92070F | 4 | CAUS | (OPTION) | |
| PLUG-SPARK,U24ESR-N(ND) | 92070G | 4 | CN | ||
| DAMPER | 92160 | 92160-1137 | 1 | ||
| BOLT-FLANGED | 130 | 130G0512 | 2 | ||
| BOLT-FLANGED,6X20 | 130A | 130G0620 | 4 |
