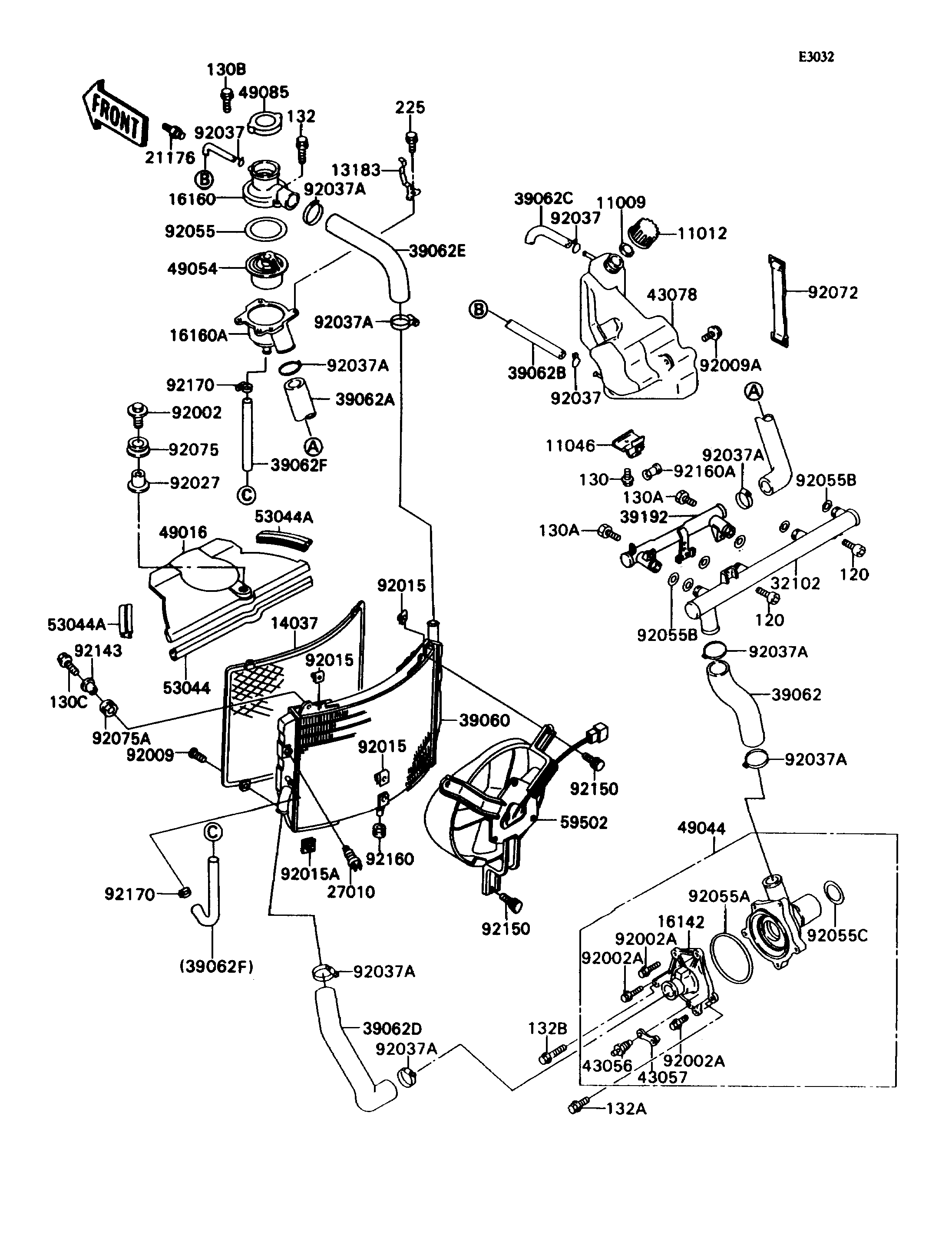

1990 Ninja® ZX™-7 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET 11046 11046-1580 1
PLATE 13183 13183-1472 1
SCREEN 14037 14037-1131 1
COVER-PUMP 16142 16142-1092 1
BODY,UPP 16160 16160-1152 1
BODY,THERMOSTAT 16160A 16160-1155 1
SENSOR,WATER 21176 21176-1054 1
SWITCH,FAN 27010 27010-1202 1
PIPE,COOLING 32102 32102-1243 1
RADIATOR 39060 39060-1097 1
HOSE-COOLING 39062 39062-1197 1
HOSE-COOLING 39062A 39062-1325 1
HOSE-COOLING,CAP-RESERVOIR 39062B 39062-1340 1
HOSE-COOLING 39062C 39062-1360 1
HOSE-COOLING,RADIATOR-PUMP 39062D 39062-1405 1
HOSE-COOLING,THERMO-RADIATOR 39062E 39062-1406 1
HOSE-COOLING,BY PASS 39062F 39062-1407 1
PIPE-WATER 39192 39192-1036 1
BREATHER-BRAKE 43056 43056-1051 1
CAP-BREATHER 43057 43057-1001 1
RESERVOIR 43078 43078-1097 1
COVER-SEAL 49016 49016-1155 1
PUMP-WATER 49044 49044-1065 1
THERMOSTAT 49054 49054-1001 1
CAP-ASSY-PRESSURE 49085 49085-1062 1
TRIM 53044 53044-1180 1
TRIM 53044A 53044-1220 2
FAN-ASSY 59502 59502-1090 1
BOLT,6X25 92002 92002-1135 1
BOLT,6X22 92002A 92002-1392 3
SCREW,TAPPING,6MM 92009 92009-1261 2
SCREW,6X14,BLACK 92009A 92009-1308 1
NUT 92015 92015-1487 3
NUT,6MM 92015A 92015-1758 2
COLLAR,L=12 92027 92027-1062 1
CLAMP,TUBE 92037 92037-147 3
CLAMP,COOLING HOSE 92037A 92037-1985 8
RING-O,53.5X2.6 92055 92055-112 1
RING-O,WATER PUMP 92055A 92055-1271 1
RING-O 92055B 92055-1282 6
RING-O,WATER PUMP 92055C 92055-1378 1
BAND,L=200 92072 92072-1253 1
DAMPER,RUBBER 92075 92075-1123 1
DAMPER 92075A 92075-1665 2
COLLAR 92143 92143-1063 2
BOLT,6X12 92150 92150-1186 3
DAMPER 92160 92160-1007 1
DAMPER 92160A 92160-1129 1
CLAMP 92170 92170-1166 2
BOLT-SOCKET 120 120S0610 2
BOLT-FLANGED,6X8 130 130J0608 1
BOLT-FLANGED 130A 130J0612 2
BOLT-FLANGED,6X14,BLACK 130B 130J0614 2
BOLT-FLANGED 130C 130J0620 2
BOLT-FLANGED-SMALL 132 132J0620 2
BOLT-FLANGED-SMALL 132A 132J0630 1
BOLT-FLANGED-SMALL 132B 132J0650 1
SCREW-PAN-WSP-CROS 225 225C0412 1
