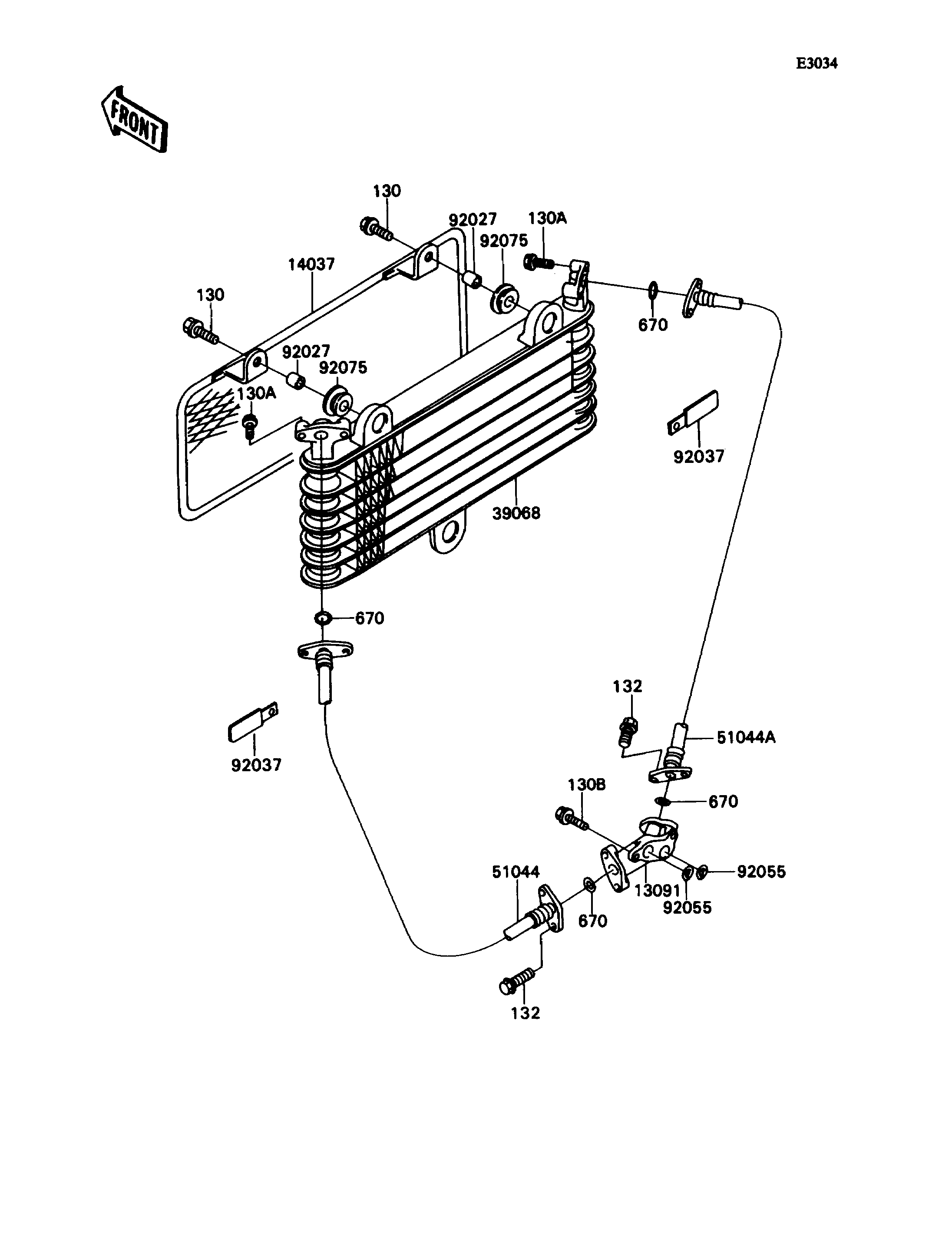

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,OIL TUBE 13091 13091-1676 1
SCREEN,OIL COOLER 14037 14037-1132 1
COOLER-ASSY-OIL 39068 39068-1053 1
TUBE-ASSY 51044 51044-1124 1
TUBE-ASSY 51044A 51044-1125 1
COLLAR,6.8X10X10.5 92027 92027-120 3
CLAMP,WIRING HARNESS 92037 92037-1069 2
RING-O 92055 92055-1473 2
DAMPER 92075 92075-277 3
BOLT-FLANGED 130 130J0620 3
BOLT-FLANGED,6X25 130A 130J0625 4
BOLT-FLANGED,6X30,BLACK 130B 130J0630 2
BOLT-FLANGED-SMALL 132 132J0616 4
O RING,12MM 670 670B2012 4
