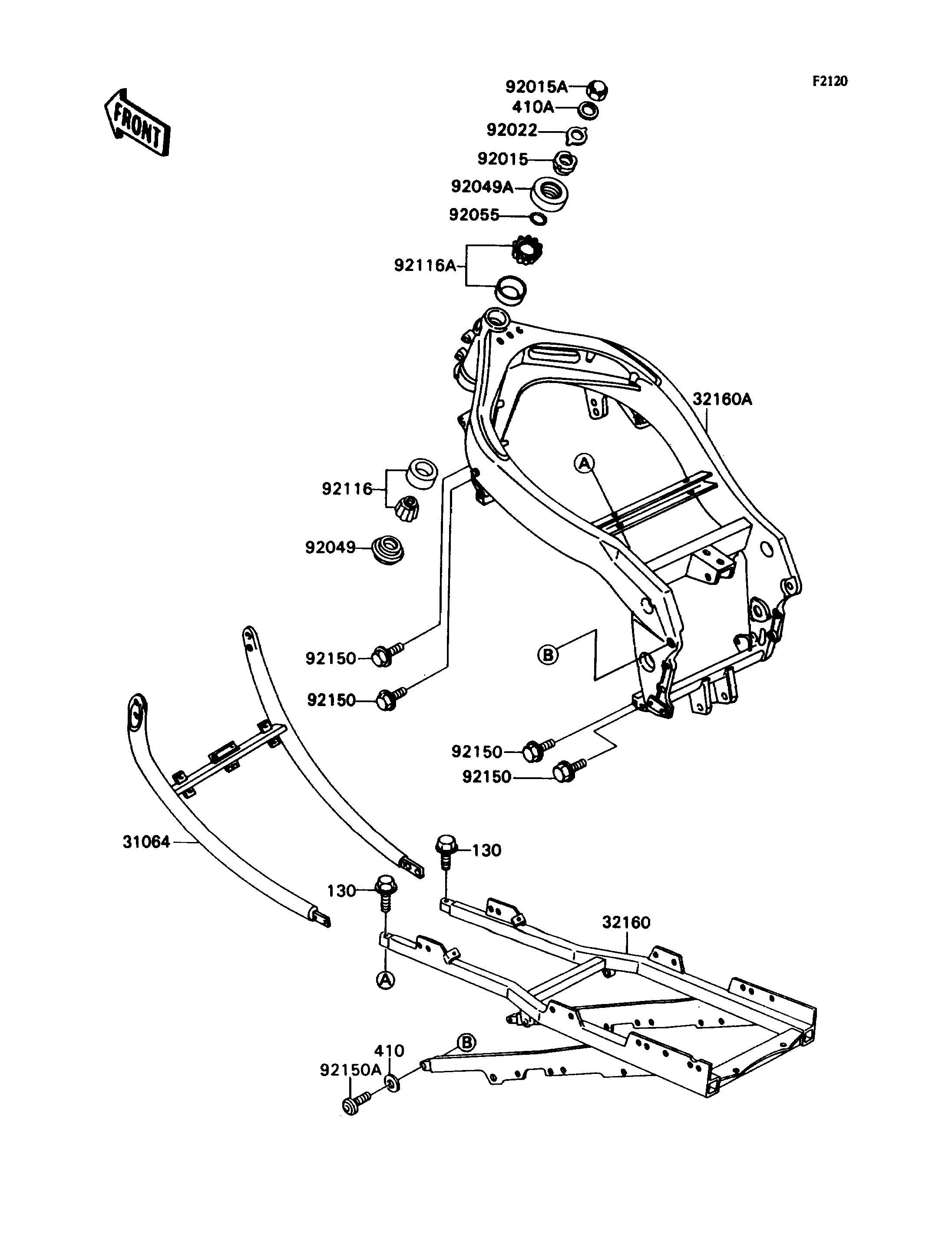

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIPE-COMP 31064 31064-1115 1
FRAME-COMP,AL,RR 32160 32160-1059 1
FRAME-COMP,AL,FR 32160A 32160-1129 1
NUT,25MM,T=12 92015 92015-1546 1
NUT,CAP,18MM 92015A 92015-1736 1
WASHER,CLAW,18.5X30X2.3 92022 92022-1555 1
SEAL-OIL,XMHE36X52X4J 92049 92049-1162 1
SEAL-OIL,XMH33 70 6.4J-A 92049A 92049-1313 1
RING-O,ID=24.5 92055 92055-1459 1
BEARING-ROLLER,HR320/28XJ 92116 92116-1009 1
BEARING-ROLLER,HI-CAP32005JR-1 92116A 92116-1056 1
BOLT,FLANGED,10X30 92150 92150-1174 8
BOLT,SOCKET,10X23 92150A 92150-1221 2
BOLT-FLANGED,8X40 130 130J0840 2
WASHER-PLAIN-SMALL,10MM 410 410B1000 2
W-PLAIN-S,18MM 410A 410D1800 1
