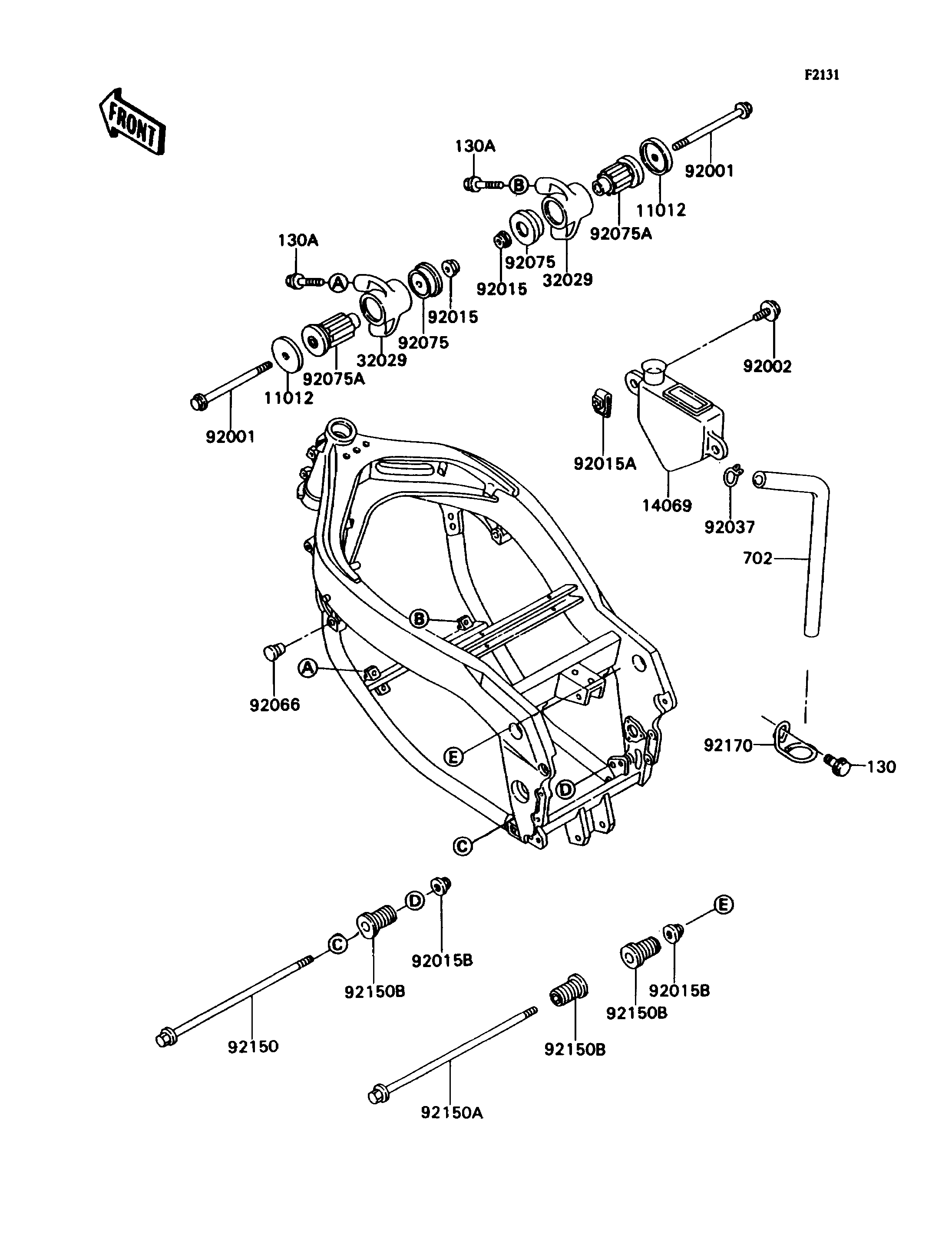

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,ENGINE BRACKET 11012 11012-1228 2
BREATHER 14069 14069-1054 1
BRACKET-ENGINE,FR 32029 32029-1698 2
BOLT,FLANGED,10X105,BLACK 92001 92001-1751 2
BOLT,6X16 92002 92002-1852 2
NUT,LOCK,10MM 92015 92015-1429 2
NUT,6MM 92015A 92015-1602 1
NUT,10MM 92015B 92015-1720 2
CLAMP,TUBE 92037 92037-147 1
PLUG 92066 92066-1220 2
DAMPER,ENGINE MOUNT,SIDE 92075 92075-1274 2
DAMPER,ENGINE MOUNT,MAIN 92075A 92075-1377 2
BOLT,FLANGED,10X220 92150 92150-1189 1
BOLT,FLANGED,10X235 92150A 92150-1263 1
BOLT,20X30 92150B 92150-1264 3
CLAMP,HOSE 92170 92170-1117 1
BOLT-FLANGED 130 130J0610 1
BOLT-FLANGED,8X25,BLACK 130A 130J0825 4
TUBE-RUBBER,7X10X430 702 702A07430 1
