Parts Diagrams |

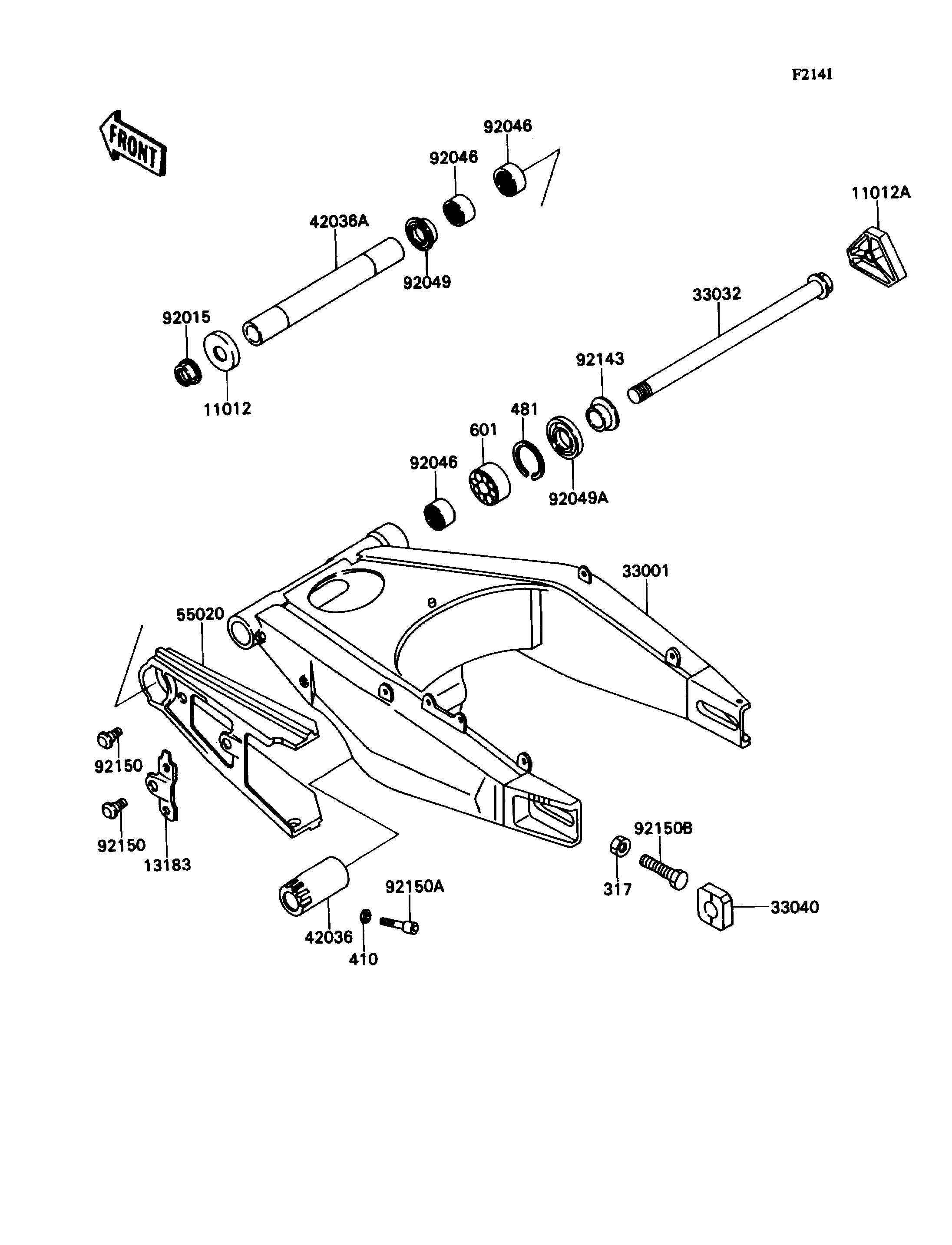

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1658 | 1 | ||
| CAP | 11012A | 11012-1741 | 1 | ||
| PLATE,CHAIN GUARD | 13183 | 13183-1598 | 1 | ||
| ARM-COMP-SWING,SILVER NO.25 | 33001 | 33001-1358-CE | 1 | ||
| SHAFT-SWING ARM | 33032 | 33032-1158 | 1 | ||
| ADJUSTER-CHAIN | 33040 | 33040-1109 | 2 | ||
| SLEEVE,SWING ARM,L=84 | 42036 | 42036-1253 | 1 | ||
| SLEEVE,SWING ARM,L=237 | 42036A | 42036-1268 | 1 | ||
| GUARD,CHAIN | 55020 | 55020-1373 | 1 | ||
| NUT,FLANGED,20MM | 92015 | 92015-1724 | 1 | ||
| BEARING-NEEDLE,BM283417 | 92046 | 92046-1111 | 3 | ||
| SEAL-OIL | 92049 | 92049-1181 | 1 | ||
| SEAL-OIL,MHSA25 42 6 | 92049A | 92049-1314 | 1 | ||
| COLLAR,SWING ARM,L=12.5 | 92143 | 92143-1227 | 1 | ||
| BOLT,6MM | 92150 | 92150-1193 | 2 | ||
| BOLT,SOCKET,10X25 | 92150A | 92150-1267 | 2 | ||
| BOLT,8X55 | 92150B | 92150-1350 | 2 | ||
| NUT-HEX-SMALL,8MM | 317 | 317G0800 | 2 | ||
| W-PLAIN-S | 410 | 410E1000 | 2 | ||
| CIRCLIP-TYPE-C,42MM | 481 | 481J4200 | 1 | ||
| BEARING-BALL,#6004 | 601 | 601A6004 | 1 |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CHAIN GUARD | |
| REF # | 13183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-COMP-SWING,SILVER NO.25 | |
| REF # | 33001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-SWING ARM | |
| REF # | 33032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADJUSTER-CHAIN | |
| REF # | 33040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,SWING ARM,L=84 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,SWING ARM,L=237 | |
| REF # | 42036A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,CHAIN | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,BM283417 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,MHSA25 42 6 | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,SWING ARM,L=12.5 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6MM | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X25 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X55 | |
| REF # | 92150B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX-SMALL,8MM | |
| REF # | 317 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| W-PLAIN-S | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,42MM | |
| REF # | 481 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6004 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
