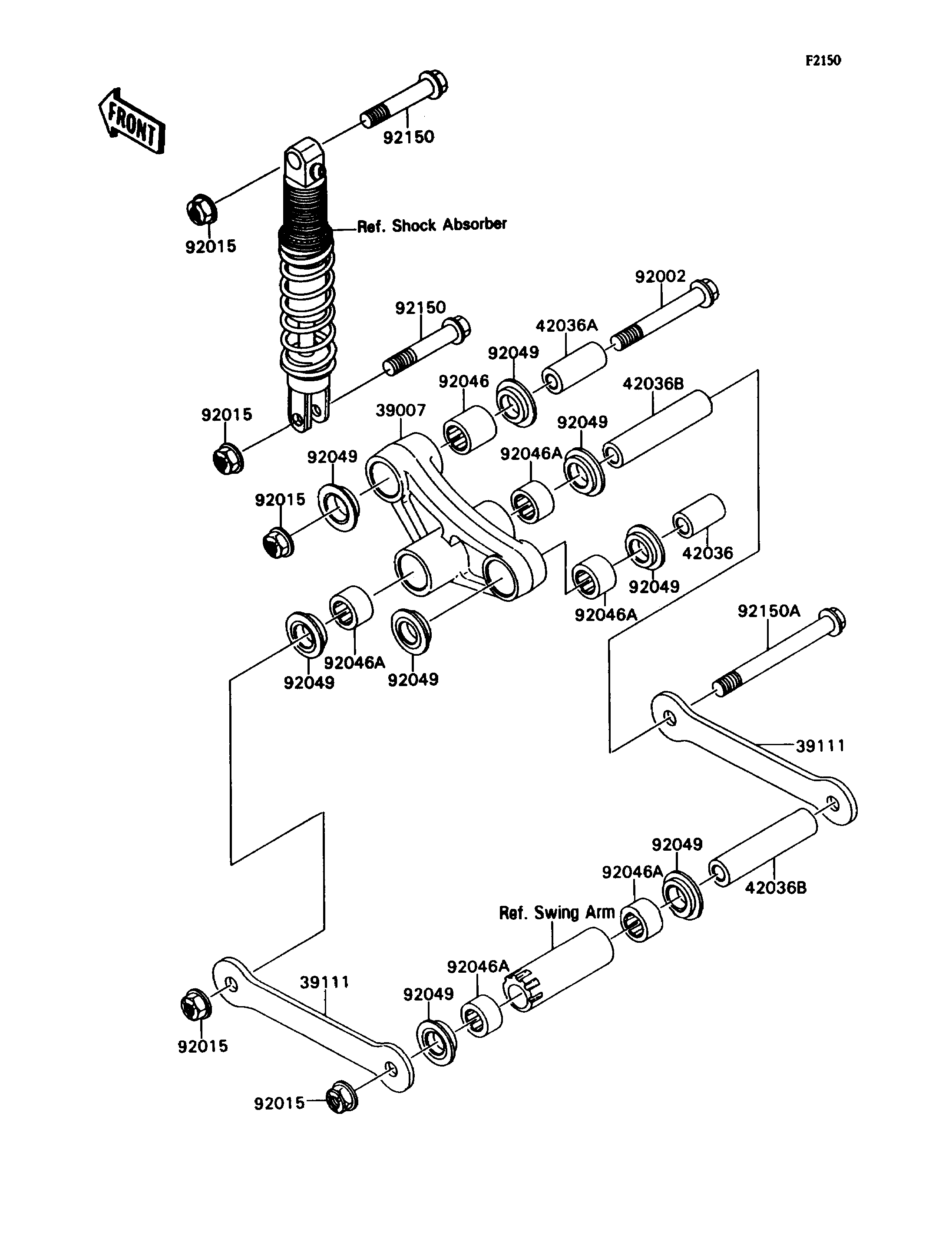

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1174 1
ROD-TIE 39111 39111-1097 2
SLEEVE,ARM,RR 42036 42036-1077 1
SLEEVE,12.1X20X44 42036A 42036-1129 1
SLEEVE,12.1X20X88 42036B 42036-1250 2
BOLT,12X85 92002 92002-1255 1
NUT,FLANGED,12MM 92015 92015-1433 5
BEARING-NEEDLE,BM202726 92046 92046-1110 1
BEARING-NEEDLE,BM202715 92046A 92046-1112 5
SEAL-OIL,ARM,CNT 92049 92049-1109 8
BOLT,FLANGED,12X63 92150 92150-1258 2
BOLT,FLANGED,12X112 92150A 92150-1259 2
