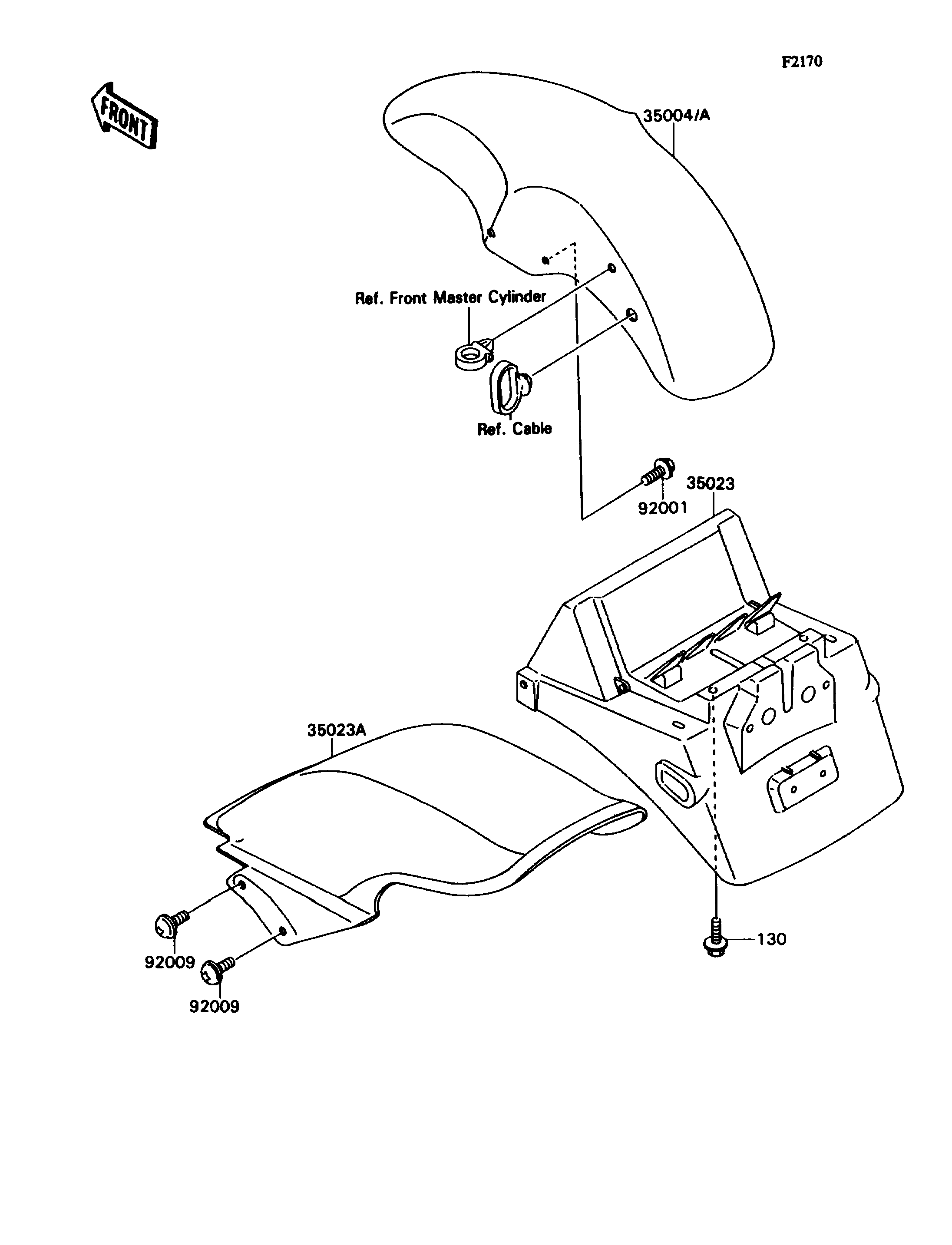

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,EBONY 35004 35004-1239-H8 1
FENDER-FRONT,L.GREEN 35004A 35004-1239-7F 1
FENDER-REAR,RR 35023 35023-1241 1
FENDER-REAR,FR 35023A 35023-1276 1
BOLT,W/SP,6X16 92001 92001-1763 4
SCREW,6X10 92009 92009-1402 4
BOLT-FLANGED,6X12 130 130H0612 2
