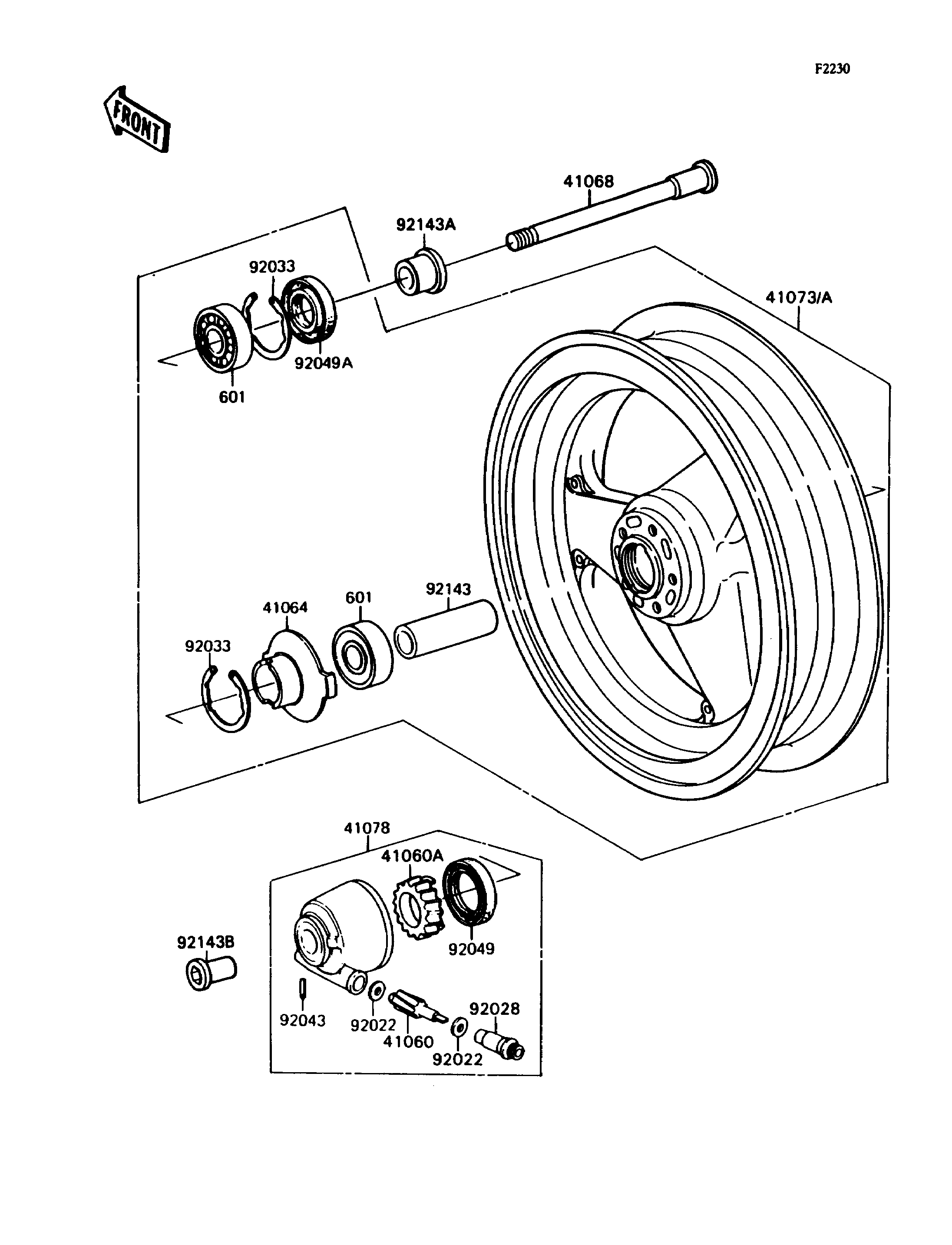

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR-METER SCREW,9T 41060 41060-1123 1
GEAR-METER SCREW,24T 41060A 41060-1135 1
RECEIVER-SPEEDOMETER 41064 41064-1054 1
AXLE,FR 41068 41068-1311 1
WHEEL-ASSY,FR,L.GREEN 41073 41073-1414-CJ 1
WHEEL-ASSY,FR,P.C.GRAY 41073A 41073-1414-DH 1
CASE-ASSY-METER GEAR 41078 41078-1075 1
WASHER,5.1X9X0.4 92022 41063-001 2
BUSHING,SPEEDOMETER 92028 92028-1066 1
RING-SNAP,47MM 92033 92033-1042 2
PIN,SPRING 92043 41082-001 1
SEAL-OIL,BJN30427-C3 92049 92049-1057 1
SEAL-OIL 92049A 92049-1337 1
COLLAR,20.2X29X89 92143 92143-1199 1
COLLAR,FR AXLE,L=19 92143A 92143-1300 1
COLLAR,FR AXLE,L=43.5 92143B 92143-1301 1
BEARING-BALL,6204UUC3 601 601B6204UU 2
