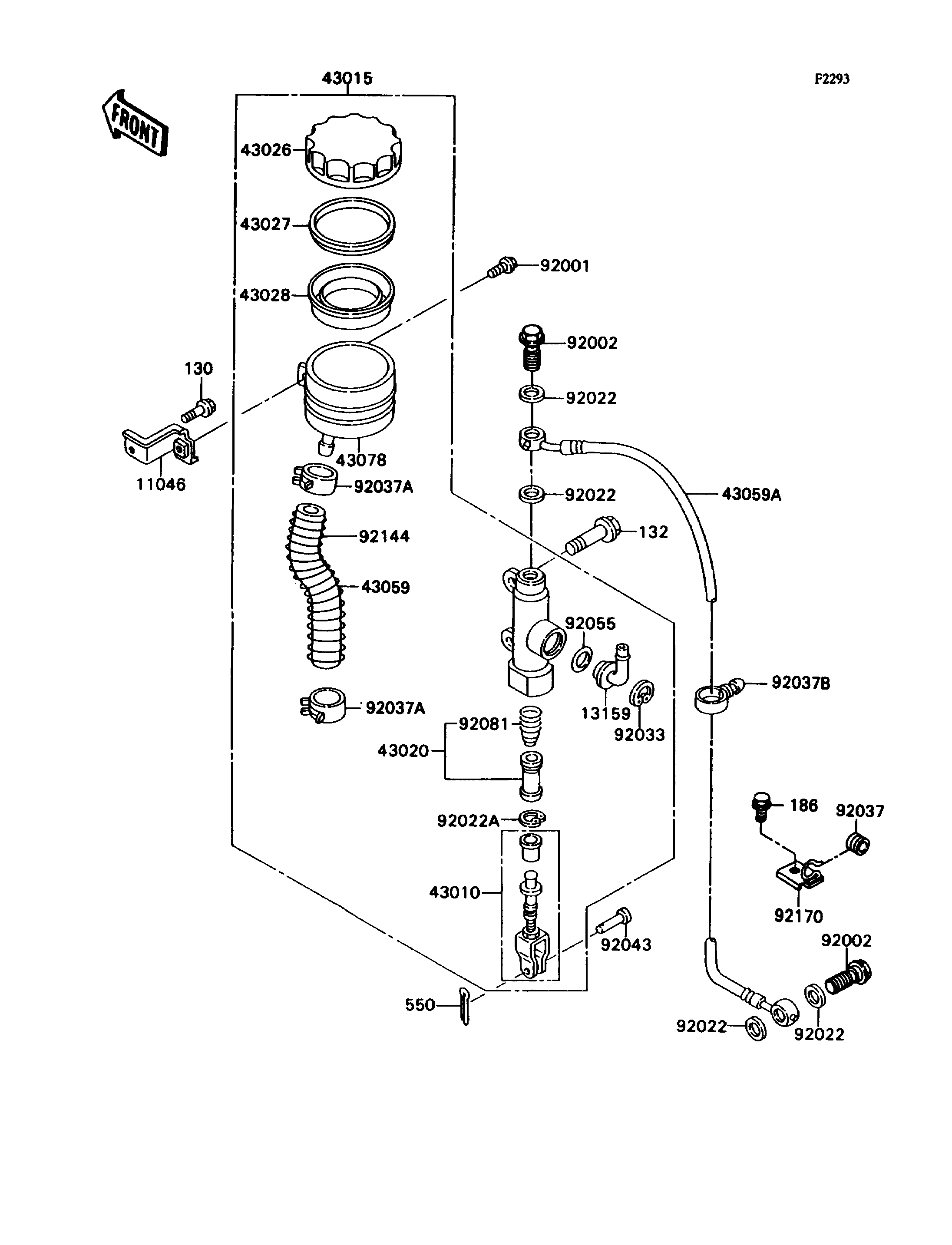

1990 Ninja® ZX™-7 - Rear Master Cylinder
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,RESERVOIR | 11046 | 11046-1542 | 1 | ||
| CONNECTOR,RR MASTER CYLINDER | 13159 | 13159-1052 | 1 | ||
| ROD-ASSY-BRAKE | 43010 | 43010-1055 | 1 | ||
| CYLINDER-ASSY-MASTER,RR | 43015 | 43015-1393 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1057 | 1 | ||
| CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
| PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
| DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
| HOSE-BRAKE | 43059 | 43059-1487 | 1 | ||
| HOSE-BRAKE,RR | 43059A | 43059-1575 | 1 | ||
| RESERVOIR,RR MASTER CYLINDER | 43078 | 43078-1058 | 1 | ||
| BOLT,6X20 | 92001 | 92001-1460 | 1 | ||
| BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
| WASHER,10.5X15X1.5 | 92022 | 43067-001 | 4 | ||
| WASHER,CIRCRIP | 92022A | 92022-1601 | 1 | ||
| RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
| GROMMET,HOSE CLAMP | 92037 | 43064-006 | 1 | ||
| CLAMP,BRAKE HOSE | 92037A | 92037-1547 | 2 | ||
| CLAMP,HOSE | 92037B | 92037-1827 | 1 | ||
| PIN,8MM | 92043 | 92043-1303 | 1 | ||
| RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
| SPRING,MASTER CYLINDER | 92081 | 92081-1737 | 1 | ||
| SPRING,BRAKE HOSE | 92144 | 92144-1057 | 1 | ||
| CLAMP,HOSE | 92170 | 92170-1098 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130H0612 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0830 | 2 | ||
| BOLT-UPSET-WP,6X10 | 186 | 186N0614 | 1 | ||
| PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 |
