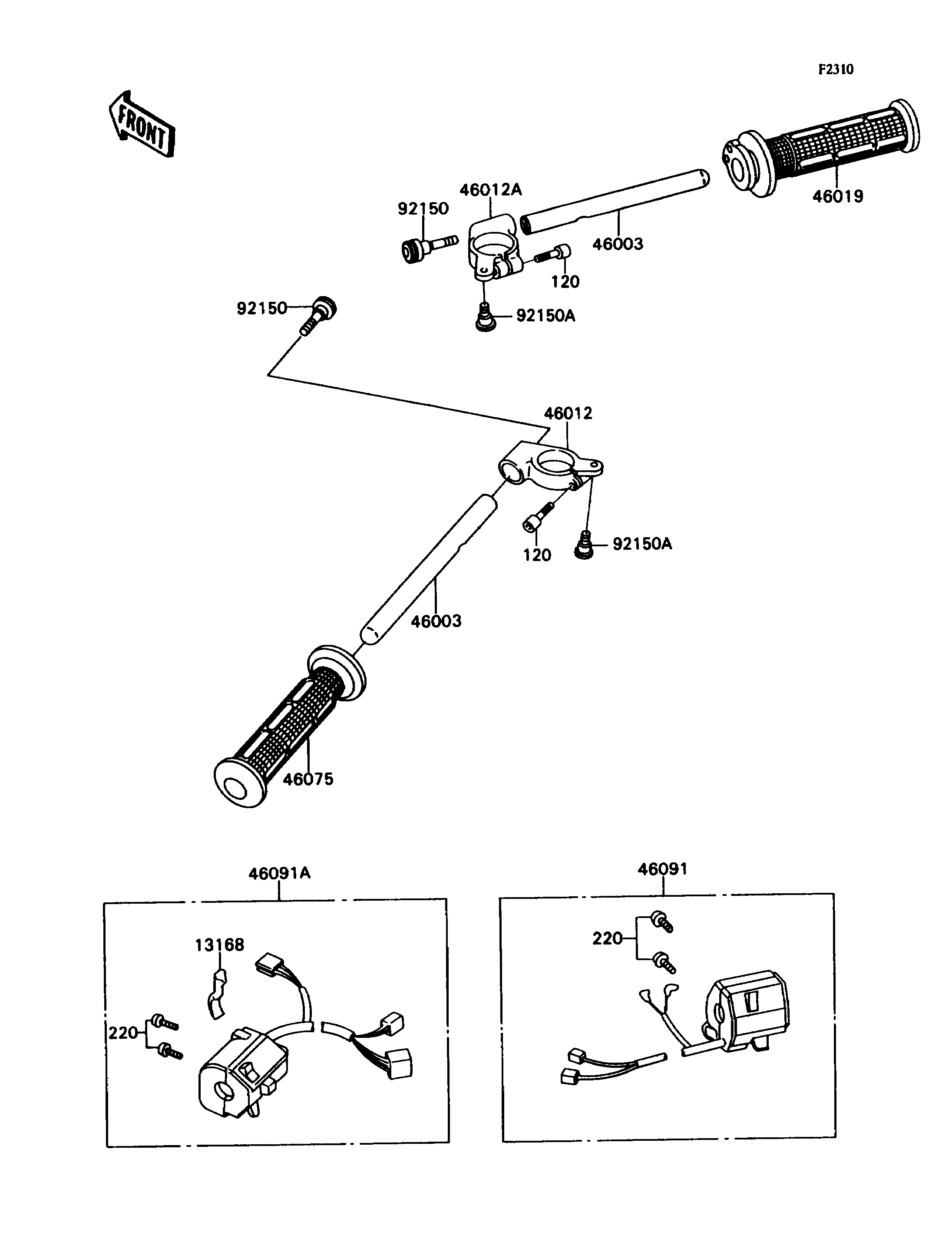

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,CHOKE 13168 13168-1374 1
HANDLE 46003 46003-1302 2
HOLDER-HANDLE,LH 46012 46012-1228 1
HOLDER-HANDLE,RH 46012A 46012-1229 1
GRIP-ASSY,THROTTLE 46019 46019-1072 1
GRIP,LH 46075 46075-1088 1
HOUSING-ASSY-CONTROL,RH 46091 46091-1439 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-1510 1
BOLT,8X42 92150 92150-1079 2
BOLT,6MM 92150A 92150-1090 2
BOLT-SOCKET,8X30 120 120P0830 2
SCREW-PAN-CROS 220 220C0520 4
