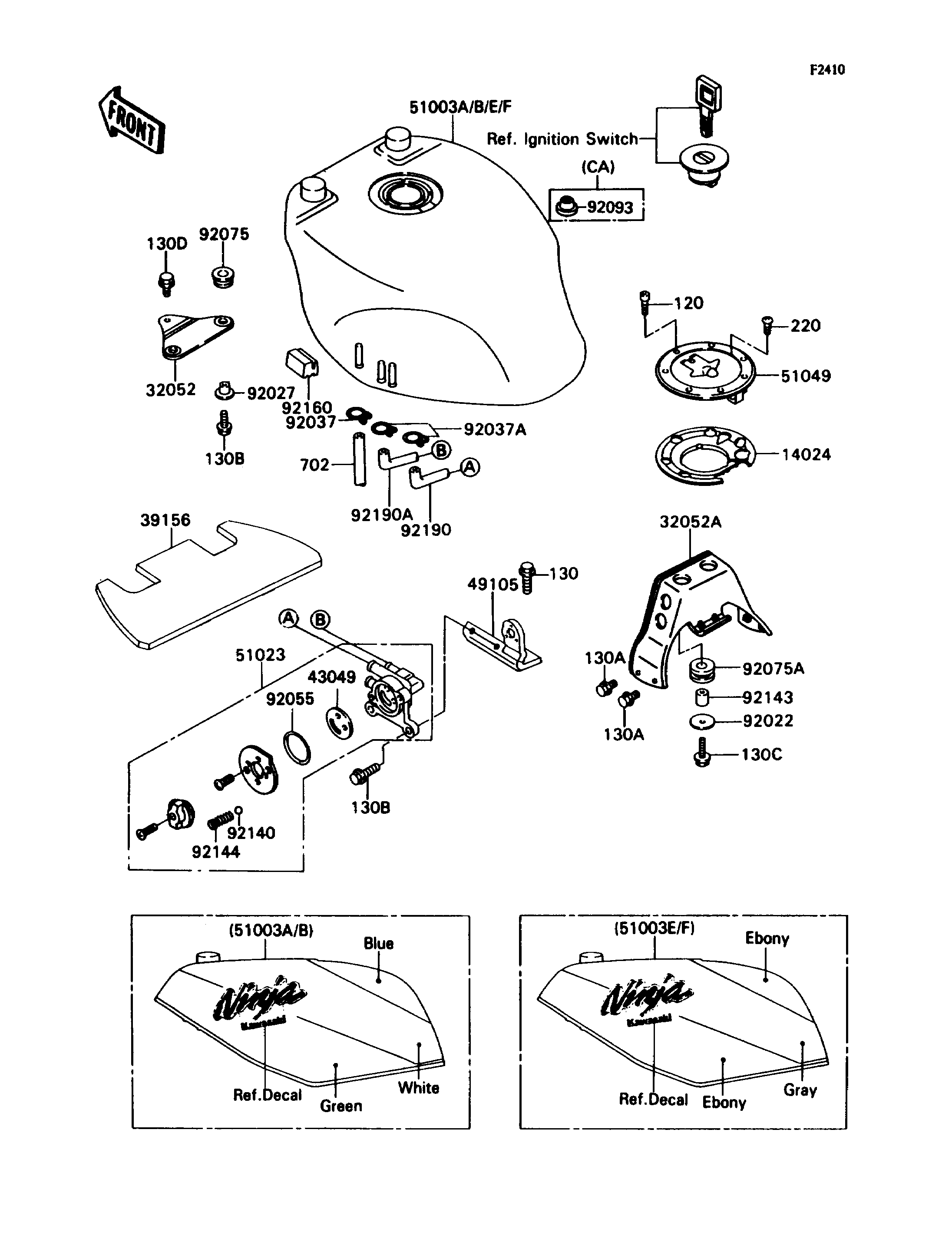

1990 Ninja® ZX™-7 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,TANK CAP 14024 14025-1913 1
BRACKET-TANK,FR 32052 32052-1280 1
BRACKET-TANK,RR 32052A 32052-1309 1
PAD,FUEL TANK 39156 39156-1143 1
PACKING,TAP VALVE 43049 43049-1066 1
BRACKET-TAP 49105 49105-1053 1
TANK-COMP-FUEL,GREEN/BLUE/WHIT 51003A 51003-5114-DZ 1 CNUS
TANK-COMP-FUEL,GREEN/BLUE/WHIT 51003B 51003-5115-DZ 1 CA
TANK-COMP-FUEL,EBONY/GRAY 51003E 51003-5137-T4 1 CNUS
TANK-COMP-FUEL,EBONY/GRAY 51003F 51003-5138-T4 1 CA
TAP-ASSY,FUEL 51023 51023-1172 1
CAP-TANK,FUEL 51049 51049-1091 1
WASHER,7X28X1.6 92022 92022-1282 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP,TUBE 92037 92037-010 1
CLAMP,TUBE 92037A 92037-1972 4
RING-O,TAP LEVER 92055 92055-1419 1
DAMPER 92075 92075-112 2
DAMPER 92075A 92075-1736 2
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
BALL,STAINLESS,5/32" 92140 92140-1051 1
COLLAR,6.5X12X16.5 92143 92143-1299 2
SPRING,FUEL TAP KNOB 92144 92144-1212 1
DAMPER 92160 92160-1128 2
TUBE,"ON" 92190 92059-1995 1
TUBE,"RES" 92190A 92059-1996 1
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED,6X10 130 130H0610 2
BOLT-FLANGED,6X14 130A 130H0614 4
BOLT-FLANGED 130B 130H0620 4
BOLT-FLANGED,6X25 130C 130H0625 2
BOLT-FLANGED,6X30,BLACK 130D 130J0630 1
SCREW-PAN-CROS 220 220C0508 1
TUBE-RUBBER,7X720 702 702A07720 1
