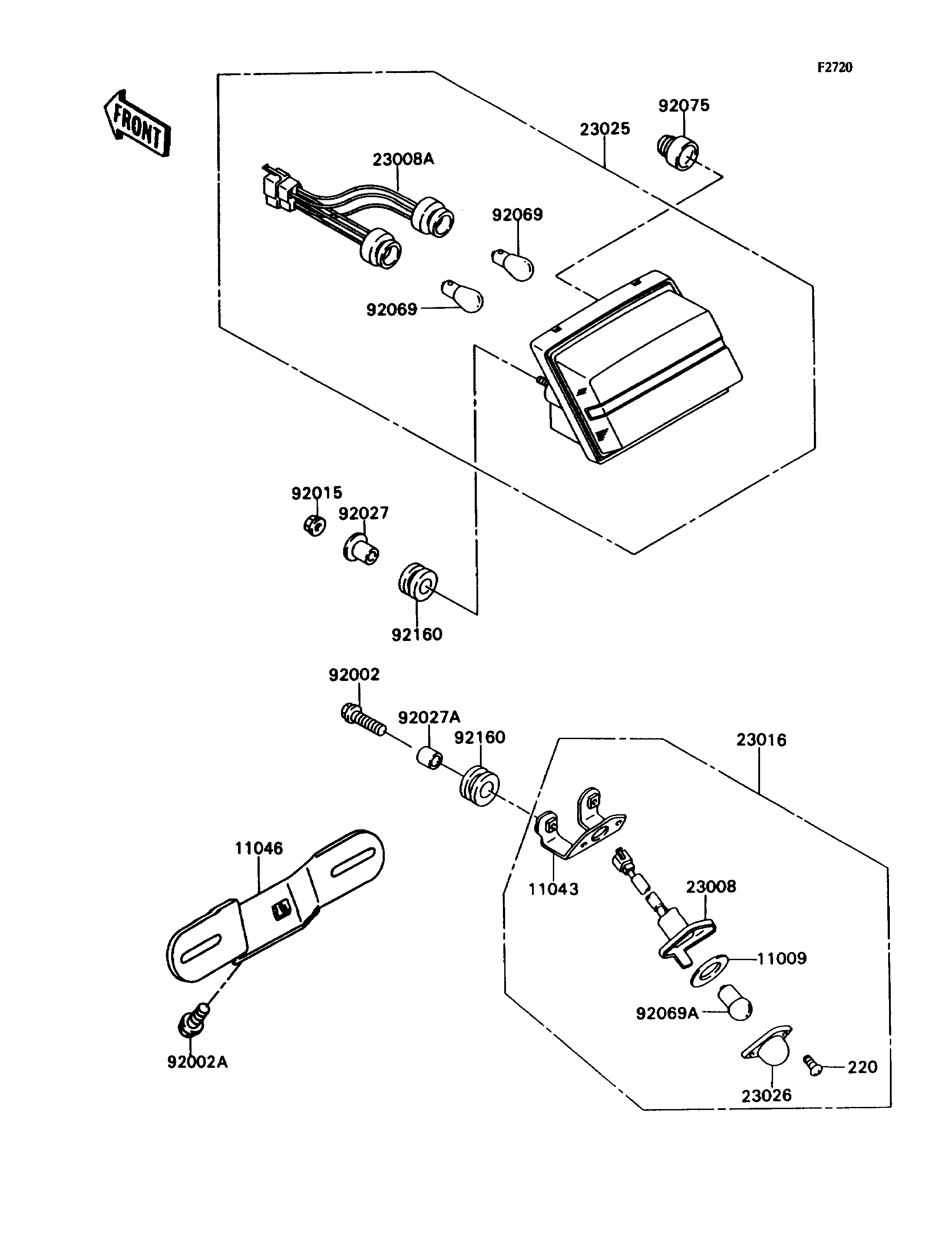

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,LICENSE PLATE LAMP 11009 11009-1372 1
BRACKET,LICENSE PLATE LAMP 11043 11043-1497 1
BRACKET,LICENSE 11046 11046-1504 1
SOCKET-ASSY,LICENSE PLATE LAMP 23008 23008-1221 1
SOCKET-ASSY,TAIL LAMP 23008A 23008-1413 1
LAMP-ASSY,LICENSE PLATE 23016 23016-1053 1
LAMP-TAIL 23025 23025-1187 1
LENS,LAMP 23026 23026-1054 1
BOLT,6X25 92002 92002-1135 2
BOLT,6X14 92002A 92002-1351 2
NUT,FLANGED,6MM 92015 92015-1193 2
COLLAR 92027 92027-1183 2
COLLAR,6.8X10X12 92027A 92027-162 2
BULB,12V 27/8W 92069 92069-059 2
BULB,12V 8W 92069A 92069-1012 1
DAMPER 92075 92075-035 1
DAMPER 92160 92160-1162 4
SCREW-PAN-CROS 220 220B0410 2
