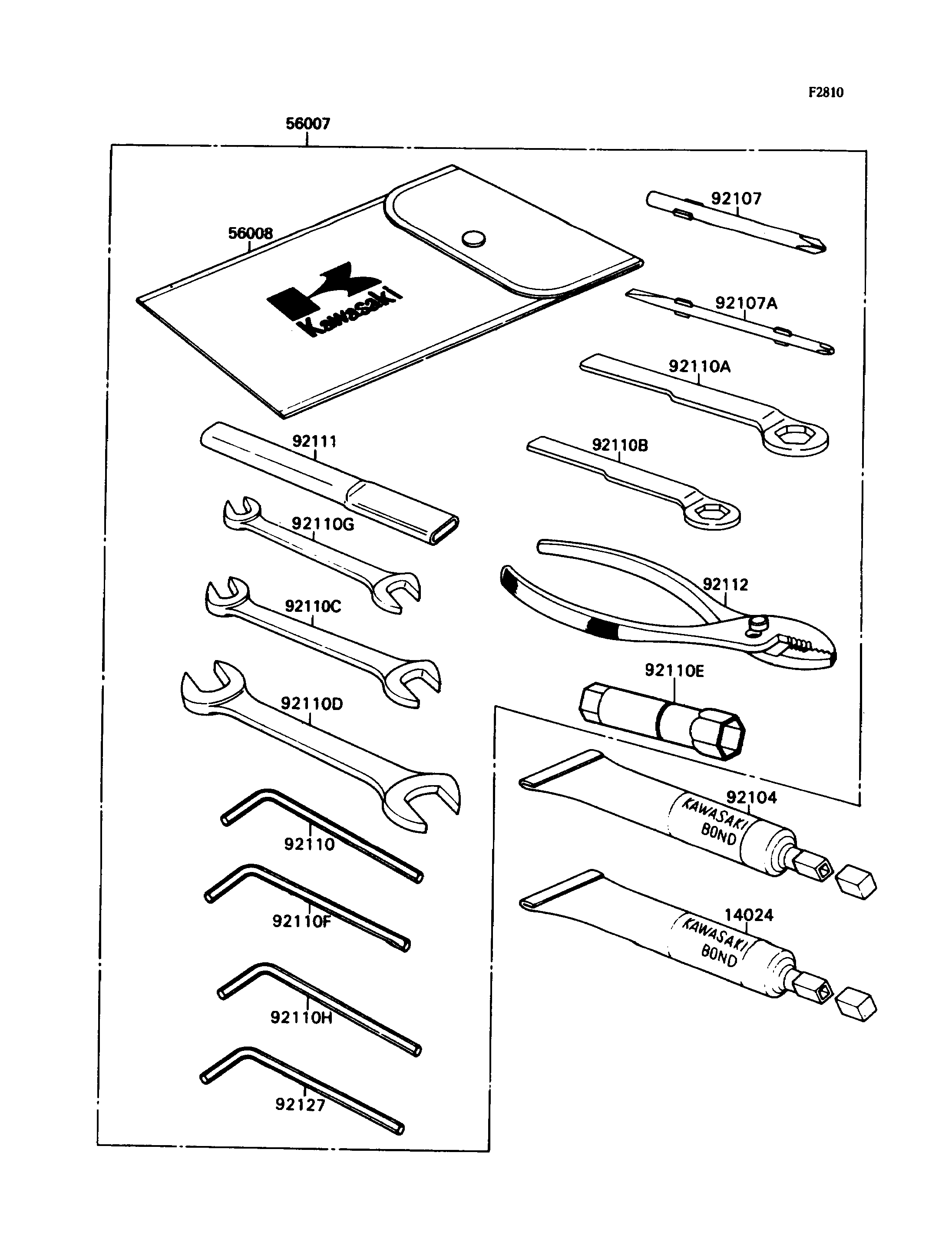

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
THREE BOND TB1211,HT/RS,WHITE | 14024 | 56019-120 | 1 | ||
TOOLKIT | 56007 | 56007-1343 | 1 | ||
BAG,TOOL | 56008 | 56008-1019 | 1 | ||
GASKET-LIQUID,TUBE,100G,BLACK | 92104 | 92104-1003 | 1 | ||
TOOL-DRIVER,#3PHILLIPS | 92107 | 92107-005 | 1 | ||
TOOL-DRIVER,#2PHILLIPS&SLOT | 92107A | 92107-1051 | 1 | ||
TOOL-WRENCH,ALLEN,5MM | 92110 | 92110-1015 | 1 | ||
TOOL-WRENCH,BOX END,27MM | 92110A | 92110-1147 | 1 | ||
TOOL-WRENCH,BOX END,22MM | 92110B | 92110-1148 | 1 | ||
TOOL-WRENCH,OPEN END,10X12 | 92110C | 92110-1152 | 1 | ||
TOOL-WRENCH,OPEN END,14X17 | 92110D | 92110-1153 | 1 | ||
TOOL-WRENCH,BOX,16MM | 92110E | 92110-1154 | 1 | ||
TOOL-WRENCH,ALLEN,4MM | 92110F | 92110-3703 | 1 | ||
TOOL-WRENCH,OPEN END,8X10 | 92110G | 92126-001 | 1 | ||
TOOL-WRENCH,ALLEN,6MM | 92110H | 92127-003 | 1 | ||
TOOL-BAR,BOX END WRENCH | 92111 | 92111-1051 | 1 | ||
TOOL-PLIERS | 92112 | 92112-003 | 1 | ||
TOOL-WRENCH,ALLEN,8MM | 92127 | 92127-002 | 1 |
