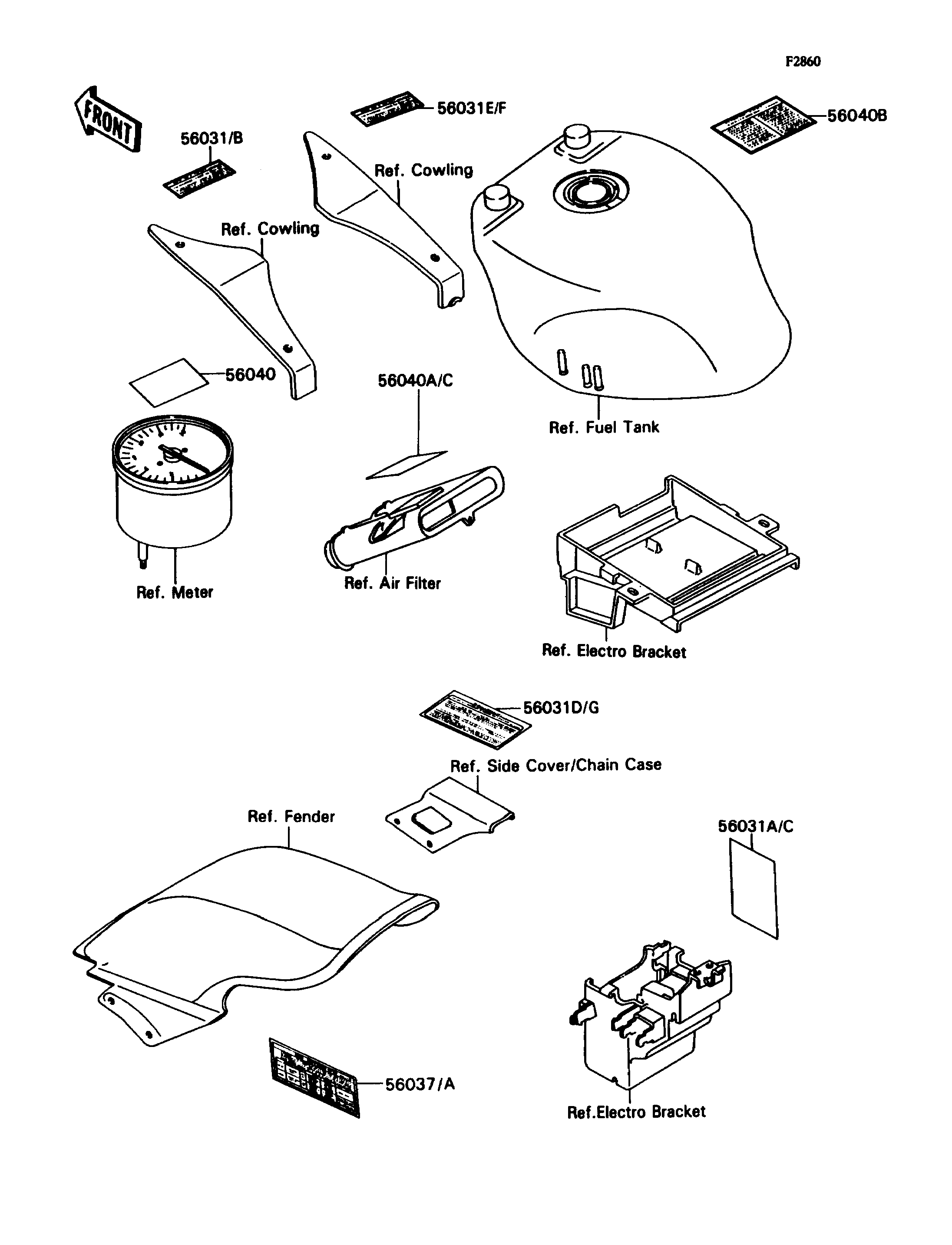

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,DAILY SAFETY 56031 56031-1653 1
LABEL-MANUAL,BATTERY VENT 56031A 56031-1654 1
LABEL-MANUAL,DAILY SAFETY 56031B 56031-1655 1 CN
LABEL-MANUAL,BATTERY VENT 56031C 56031-1656 1 CN
LABEL-MANUAL,CHAIN 56031D 56031-1680 1 CAUS
LABEL-MANUAL,OIL&OIL FILTER 56031E 56031-1681 1 CAUS
LABEL-MANUAL,OIL&OIL FILTER 56031F 56031-1698 1 CN
LABEL-MANUAL,CHAIN 56031G 56031-1699 1 CN
LABEL-SPECIFICATION,TIRE&LOAD 56037 56037-1497 1 CAUS
LABEL-SPECIFICATION,TIRE&LOAD 56037A 56037-1499 1 CN
LABEL-WARNING,BREAK IN CAUTION 56040 56040-1007 1 CAUS
LABEL-WARNING,AIR INTAKE 56040A 56040-1014 1
LABEL-WARNING,EVAPO 56040B 56040-1121 1 CA
LABEL-WARNING,AIR INTAKE 56040C 56040-1255 1 CN
